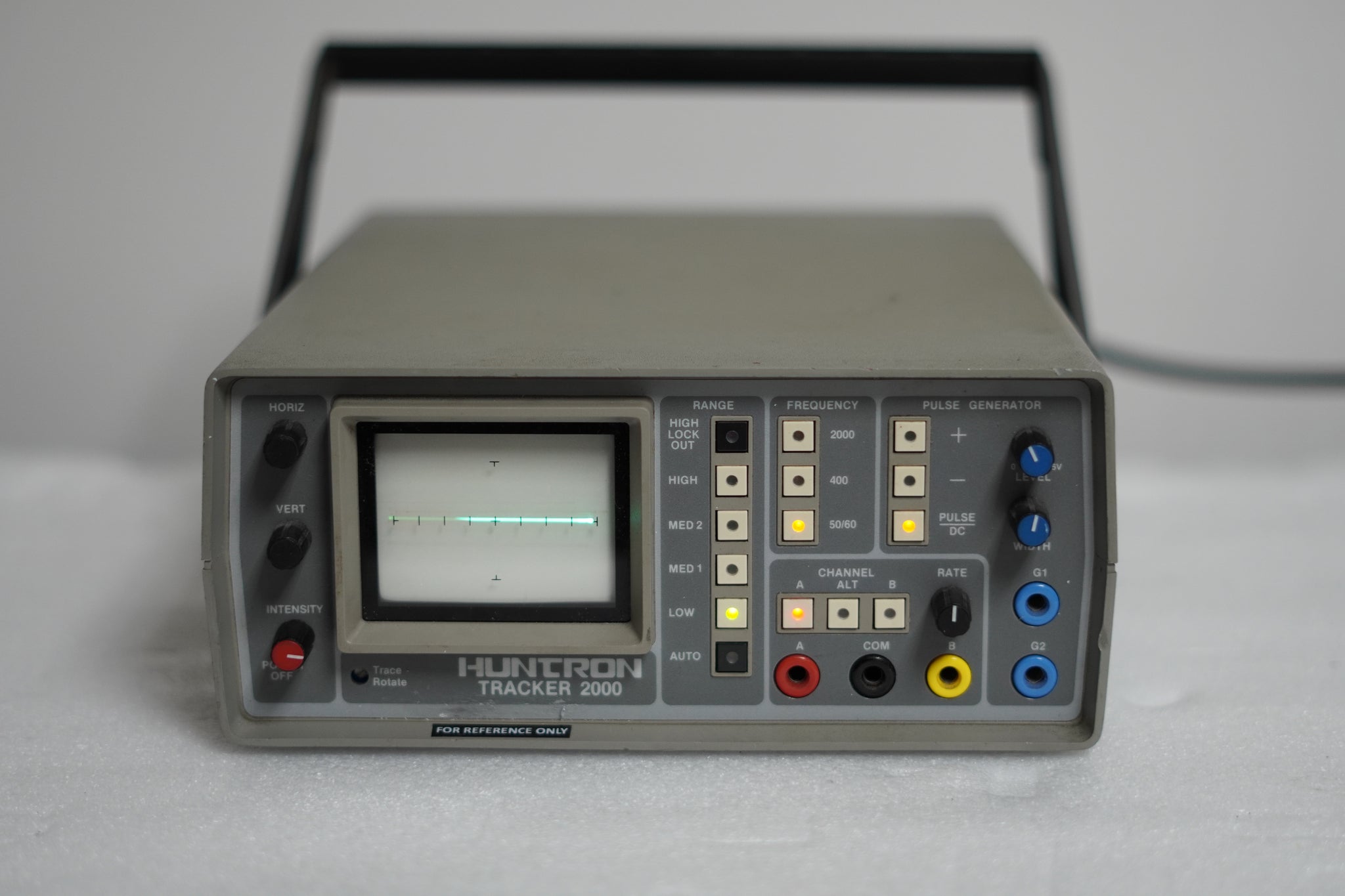

Huntron 2000 Tracker Component Tester Circuit Analyzer

  • $1,295.00
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Huntron 2000 Tracker Component Tester Circuit Analyzer

Product Overview

The Huntron 2000 is an analyzer from Huntron. Analyzers are key tools to test electronic equipment in the engineering, medical, automotive, and technological industries. Use analyzers for monitoring the performances of many different types of electronic devices. You may need analyzers for the measurement of components such as audio spectrums, voltages and currents, signals, and frequencies.

Additional Features:

  • Test components and boards without power-ideal for catastrophic failures
  • Get a picture of a component’s overall health-including intermittent problems
  • Test gate-fired devices with a built-in pulse generator
  • Non-destructive testing
  • Input Selection: A, B, Alternate (variable rate)
  • Test Frequencies: 50/60 Hz, 400 Hz, 2000 Hz
  • Functions Range Selection: Manual or AutoScan; High Range Lockout
  • Compare-A-Trace: Adjustable (0.5 Hz to 10 Hz)
  • Pulse Generator Level: 0V to 5V; DC Mode: +DC or -DC; Pulse Mode: +Pulse, -Pulse, or both; adjustable duty cycle

General Specifications

  • Line Voltage: 100 VAC, 115 VAC or 230 VAC, 50 or 60 Hz
  • Power: 20 Watts maximum
  • Display: 2.8 in (7.0 cm) diagonal CRT
  • Dimensions: 11 in L x 9 in W x 4 in H (28 cm L x 23 cm W x 10 cm H)
  • Operating Temp: +32°F to +122°F (0°C to +50°C)
  • Storage Temp: -58°F to +140°F (-50°C to +60°C)
