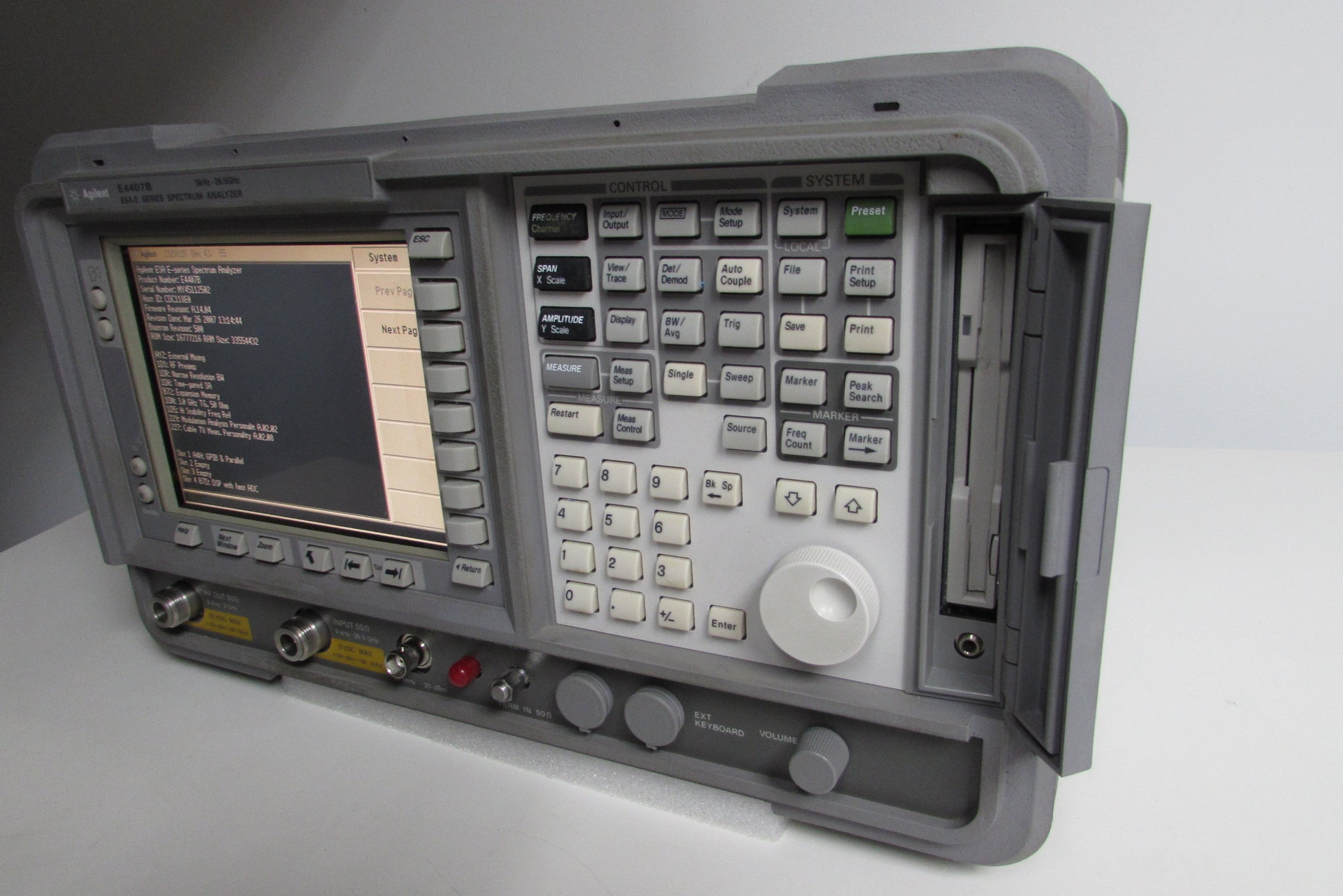

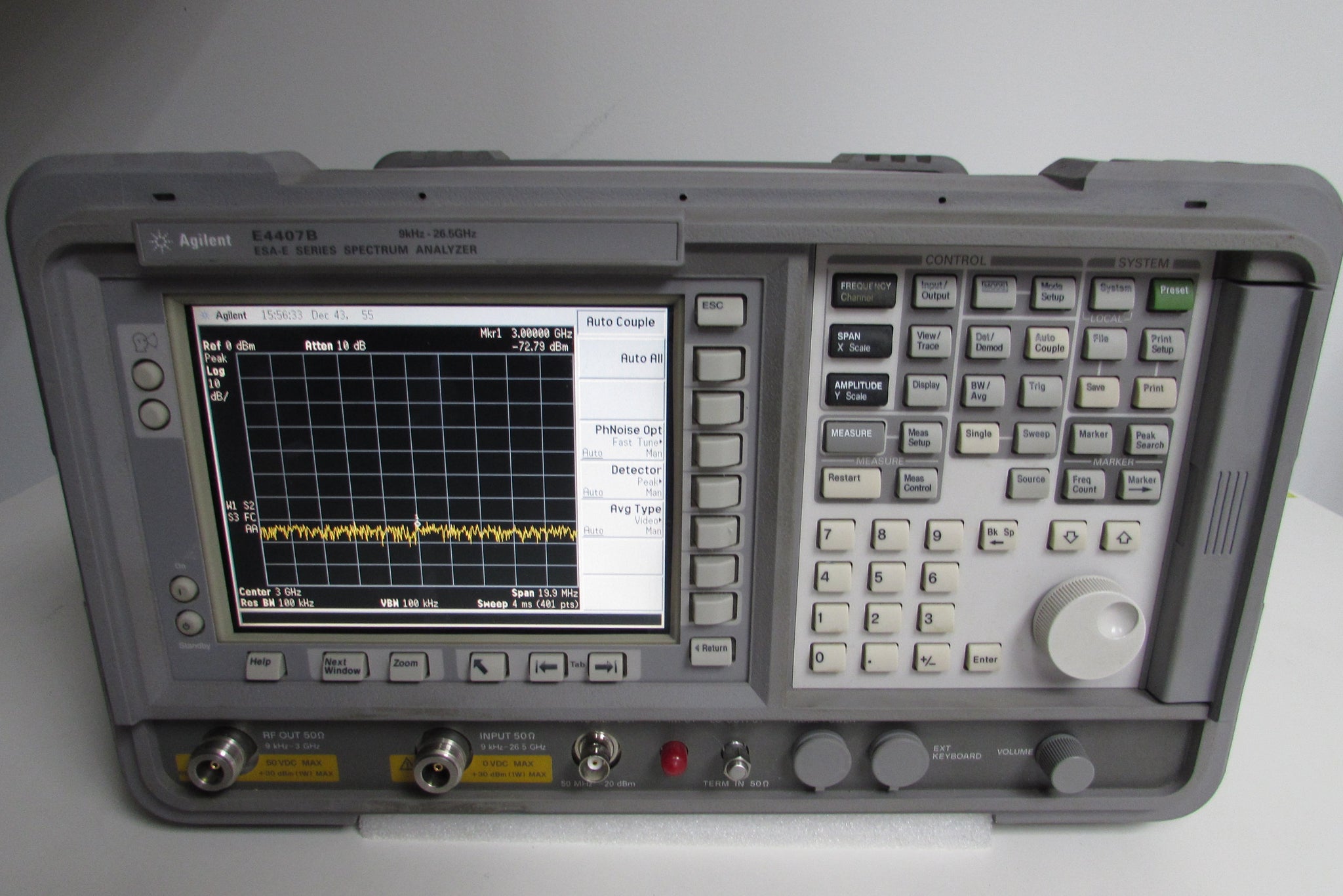

Agilent E4407B ESA-E Standard Spectrum Analyzer, 9 kHz to 26.5 GHz with 11 options

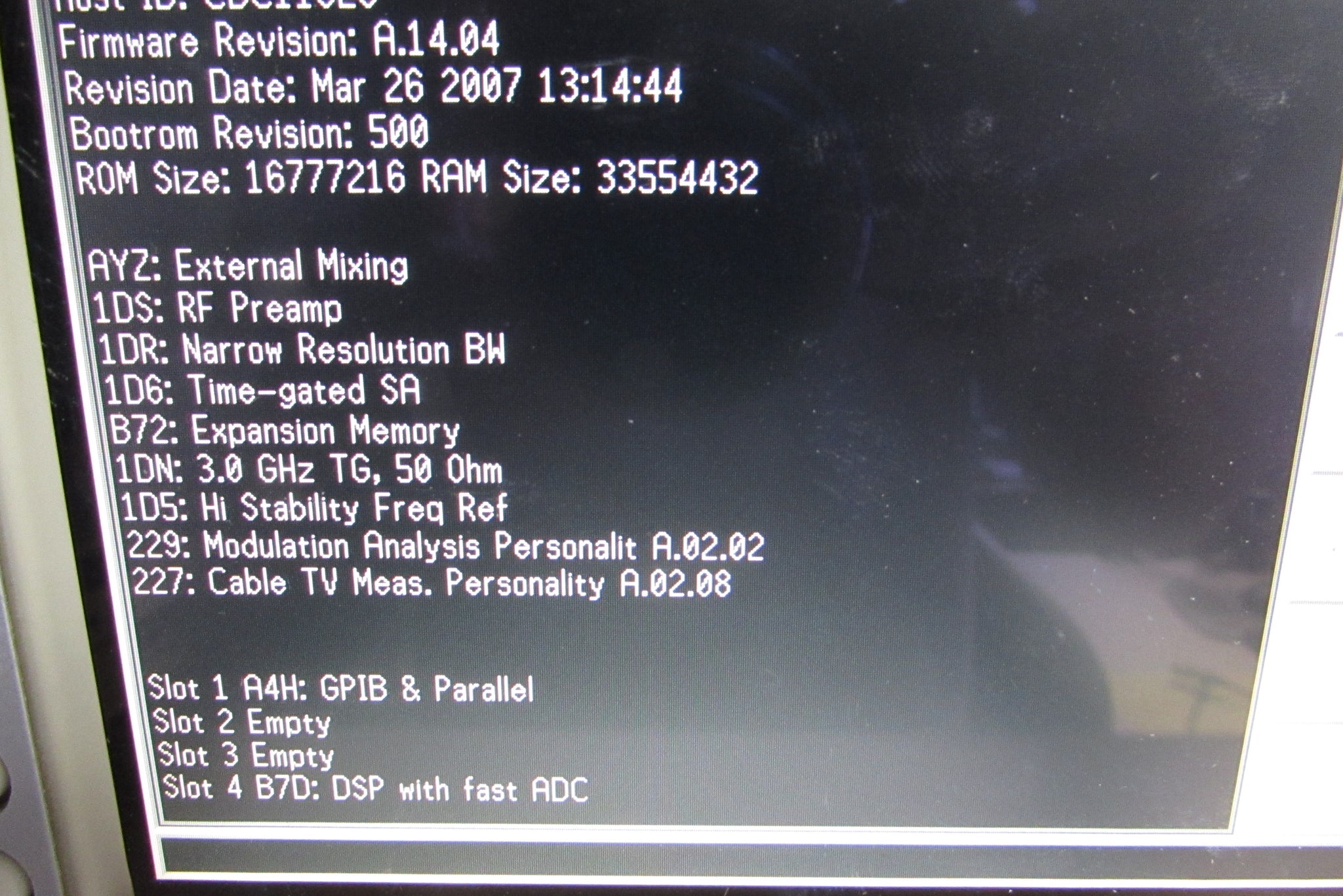

Agilent E4407B ESA-E Standard Spectrum Analyzer, 9 kHz to 26.5 GHz Opt AYZ, 1DS, 1DR, 1D6, B72, 1DN, 1D5, 229, 227, A4H, B7D
Product Overview
The Agilent E4407B is a 26.5 GHz Spectrum Analyzer from Agilent. A spectrum analyzer measures the power of spectrums of known and unknown signals. Spectrum analyzers collect information such as the magnitude of an input signal compared to its frequency. As a frequency analyzer, spectrum analyzers’ main use is to document and analyze electrical input signals as well as spectral compositions of other signals.
Additional Features:
- Frequency range: 9 kHz-26.5 GHz
- Rugged and portable for lab grade performance in the field
- One-millisecond RF sweep time, 45 measurements per second
- RMS, peak, neg peak, quasi-peak detectors
- ± 0.4 dB overall amplitude accuracy
- Optional 1 Hz digital-resolution bandwidth filter and preamplifier
- -166 dBm sensitivity, with internal preamp, +12.5 dBm TOI
- Maximum frequency coverage up to 325 GHz with external mixing
- Variable sweep (trace points) from 2 to 8192
- Segmented sweep for up to 32 discontinuous spans in one sweep
