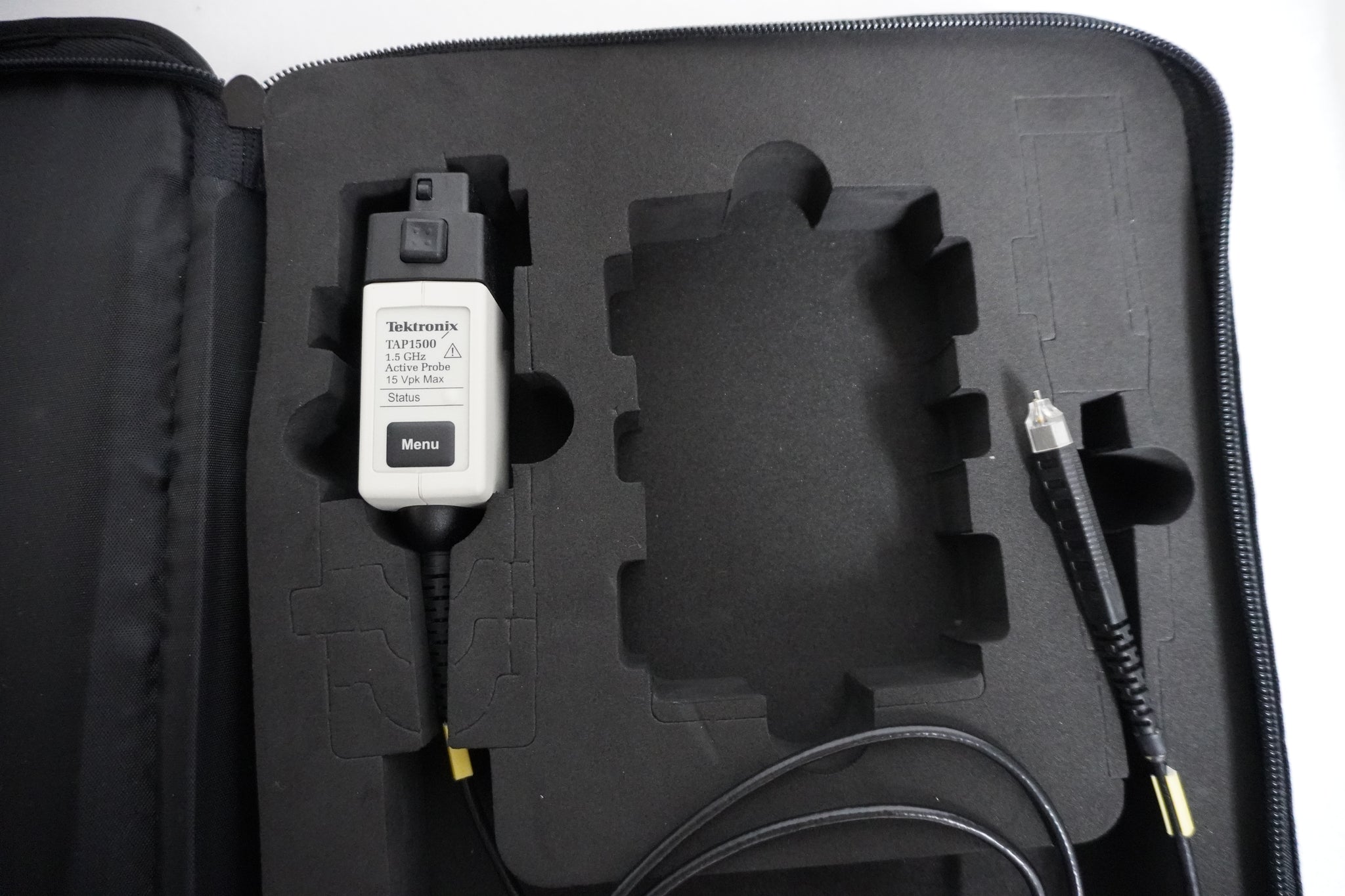

Tektronix TAP1500 Oscilloscope Probe, Active, 1.5 GHz, 15 V

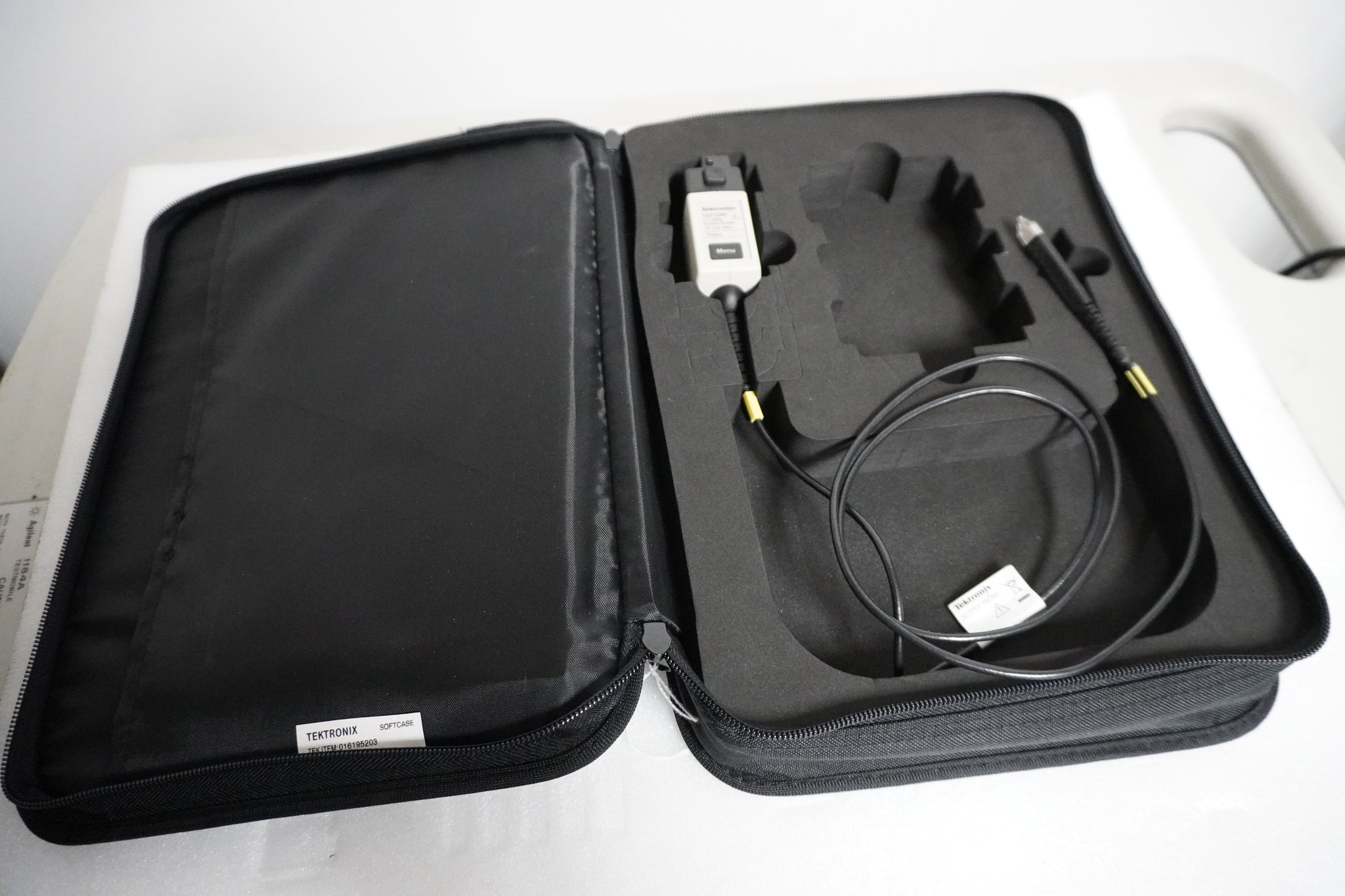

Tektronix TAP1500 Oscilloscope Probe, Active, 1.5 GHz, 15 V. No accessories.
Product Overview
The Tektronix TAP1500 Single-ended Active FET Probe provides excellent high-speed electrical and mechanical performance required for today’s digital system designs. Specifically designed for use and direct connection to the TekVPI™ probe interface used on Tektronix' new DPO7000 and DPO4000 Series Oscilloscopes, the TAP1500 Active FET probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems:
- Lower DUT loading effects with ≤1 pF input capacitance and 1 MΩ input resistance
- Versatile DUT connectivity for attaching to small SMDs
- Preserves oscilloscope bandwidth at the probe tip for DPO7000 and DPO4000 Series Oscilloscope models, up to ≤1 GHz
Additional Features:
- ≥1.5 GHz Probe Bandwidth
- <267 ps Rise Time
- ≤1 pF Input Capacitance
- 1 MΩ Input Resistance
- –8 V to +8 V Input Dynamic Range
- –10 V to +10 V DC Input Offset Range
- Versatile Mechanical Performance
- Small for Reliability
