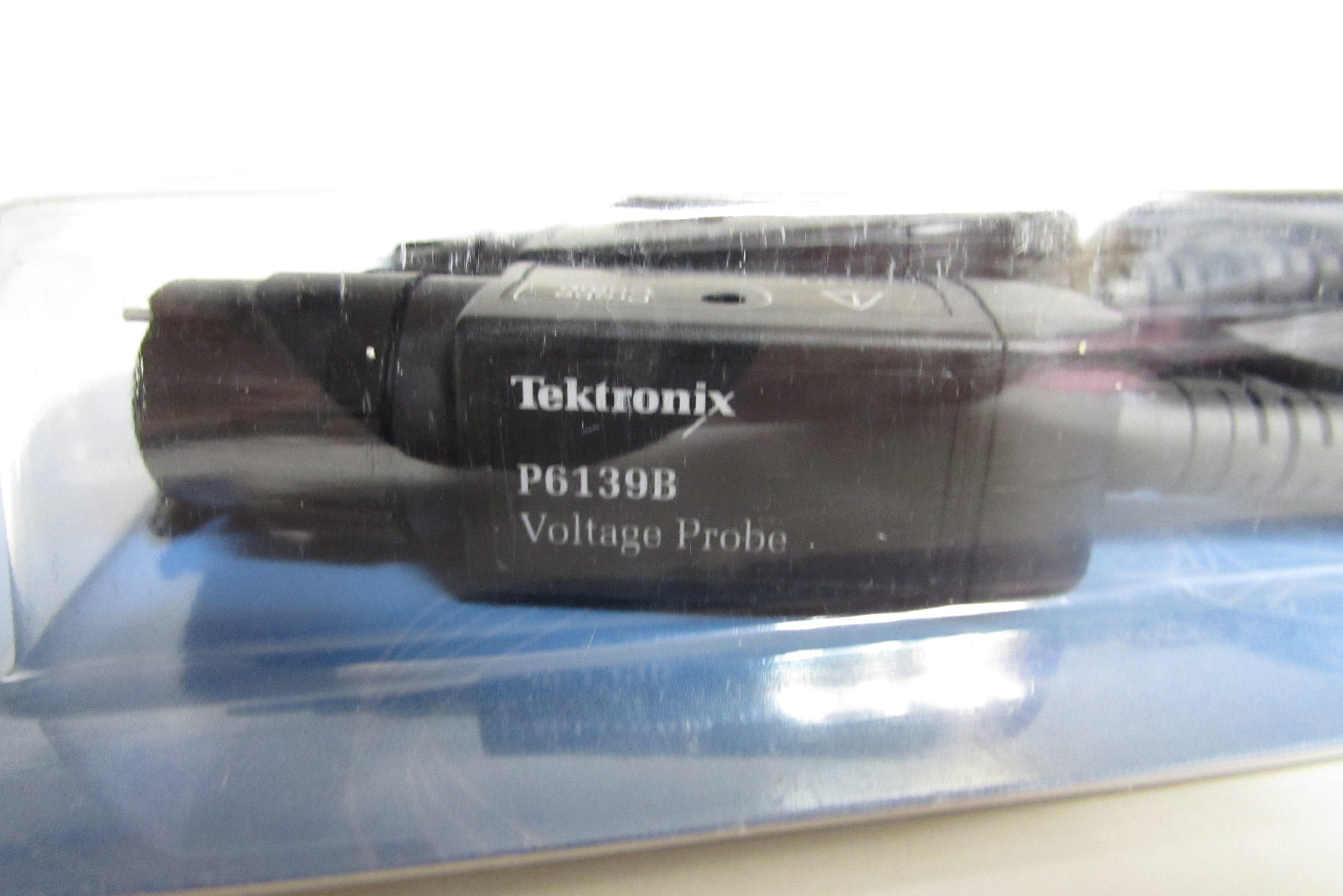

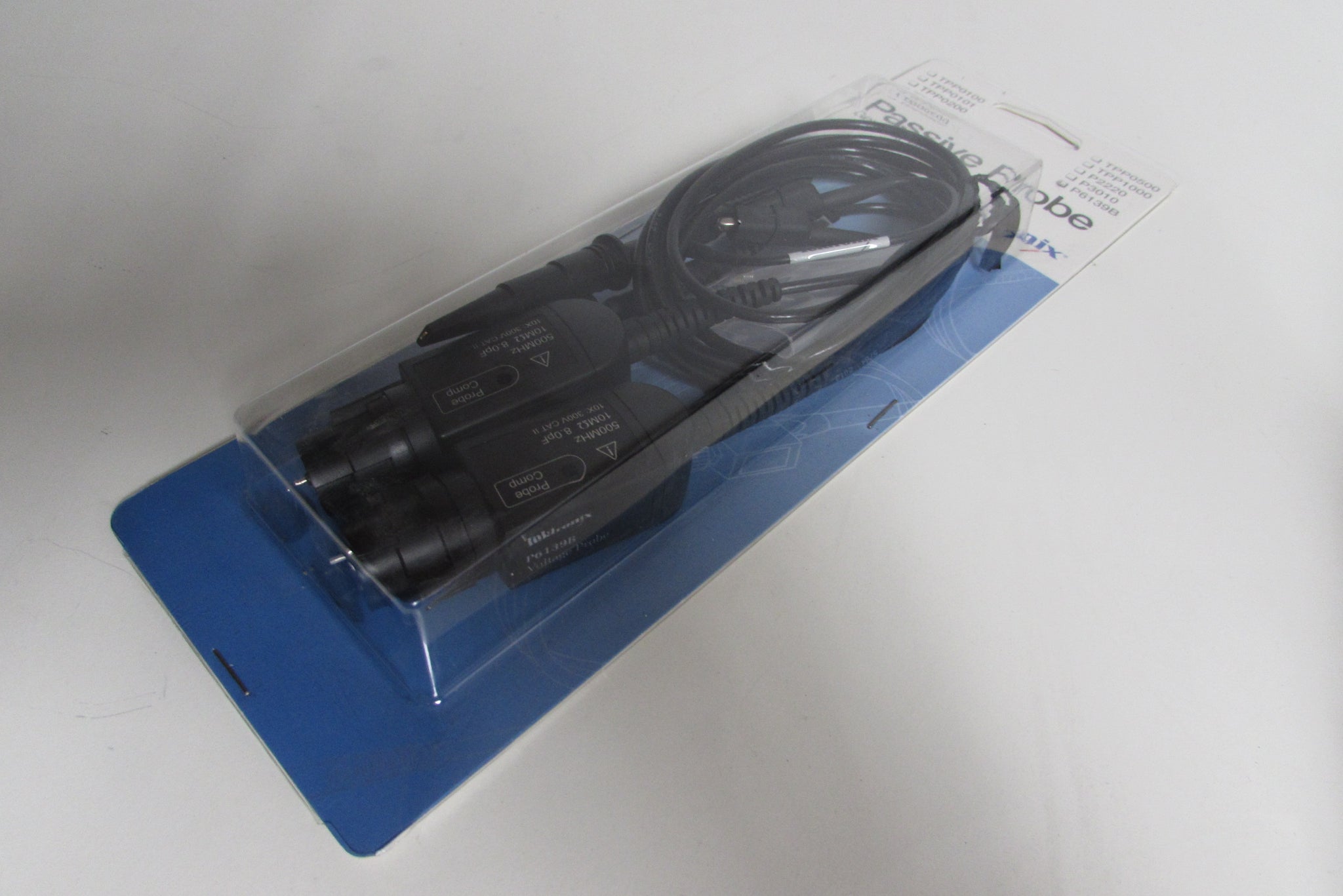

Tektronix P6139B Passive Probe, 500 MHz, 10x
Tektronix P6139B Passive Probe, 500 MHz, 10x
Product Overview
The Tektronix P6139B probes are high bandwidth, high impedance 10X passive voltage probes with 10 MΩ input resistance. These probes feature a small probe head and sharp tip that makes it easier to probe dense circuitry.
Features:
- 500 MHz Probe Bandwidth
- Large Input Impedance at the Probe Tip 10 MOhm, 8 pF
- Compensation Range: 8 pF to 18 pF
- Cable Length: 1.3M
- 10X Attenuation Factor
- 300 V CAT II Input Voltage
- Compact Probe Head for Probing Small Geometry Circuit Elements
- Small Probe Body for Enhanced Visibility to the Device-Under-Test
- Replaceable Probe Tip Cartridges
- Large Accessory Set for Versatile Connectivity
Standard Accessories
- Long ground spring (2)
- 6" alligator ground lead (1)
- Standard hook tip (1)
- Universal IC cap, 3.8 mm (1)
- Marker band set, 2 each of 5 colors (1)
- Adjustment tool (1)
- Manual (English only)
Connectivity:
- P6139B features the TekProbe Interface for Direct BNC Connection for Oscilloscopes with 1 MOhm Inputs
- Integrated Oscilloscope and Probe Measurement Systems Feature Intelligent Communication that Automatically Scales and Adjusts Units on the Oscilloscope Display
Applications:
- Low Power Devices
- Service
- Manufacturing Engineering
- Test Research and Development
