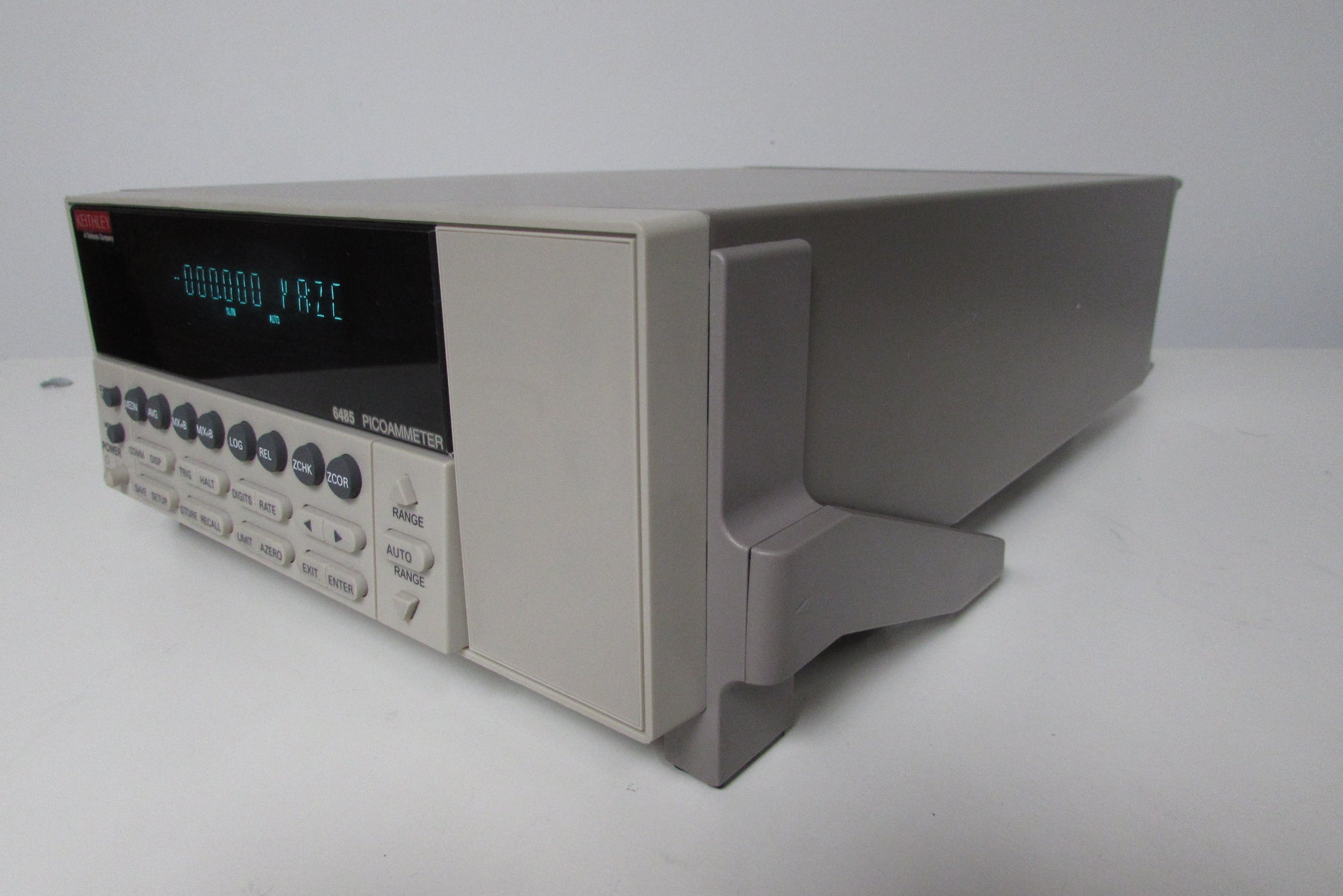

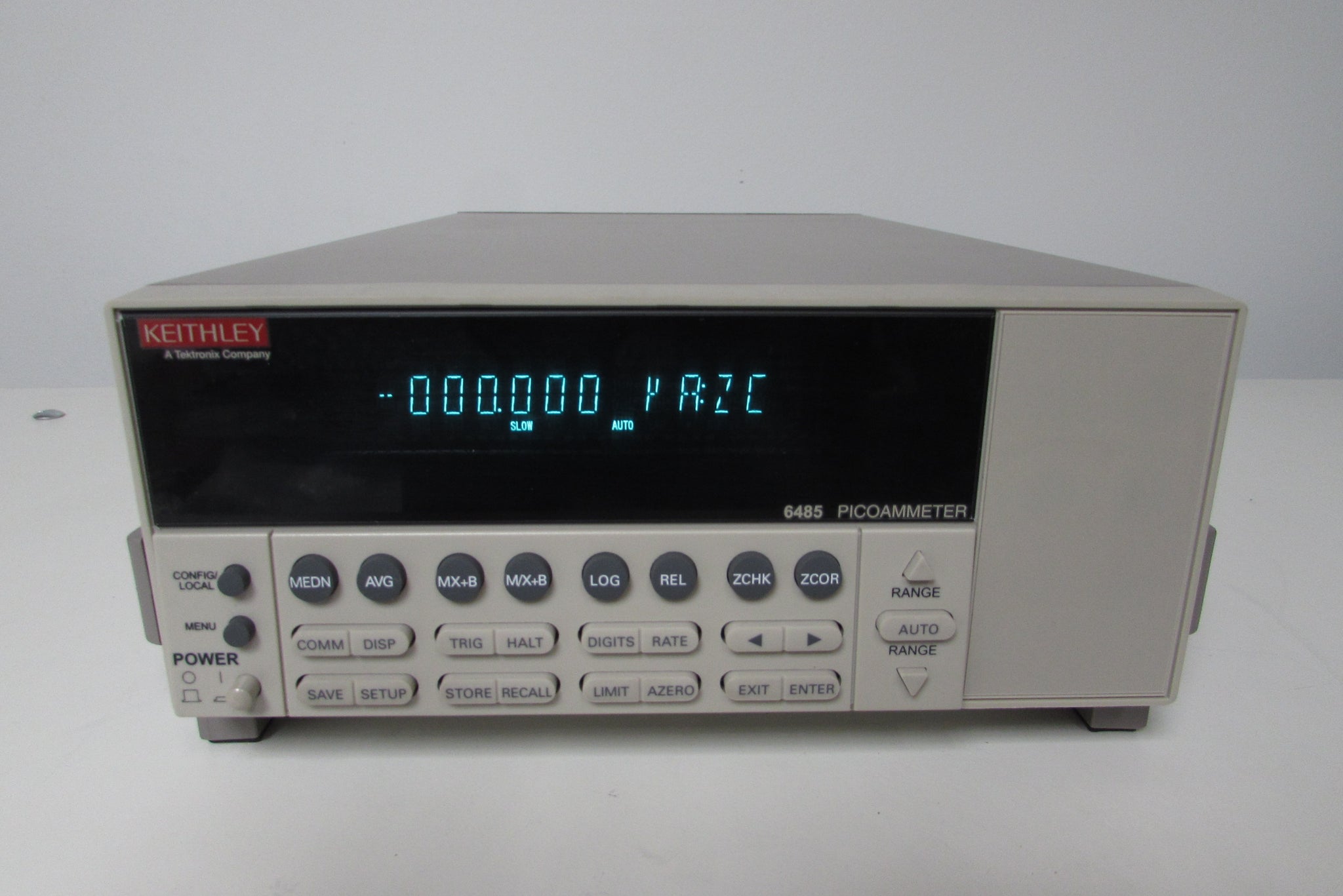

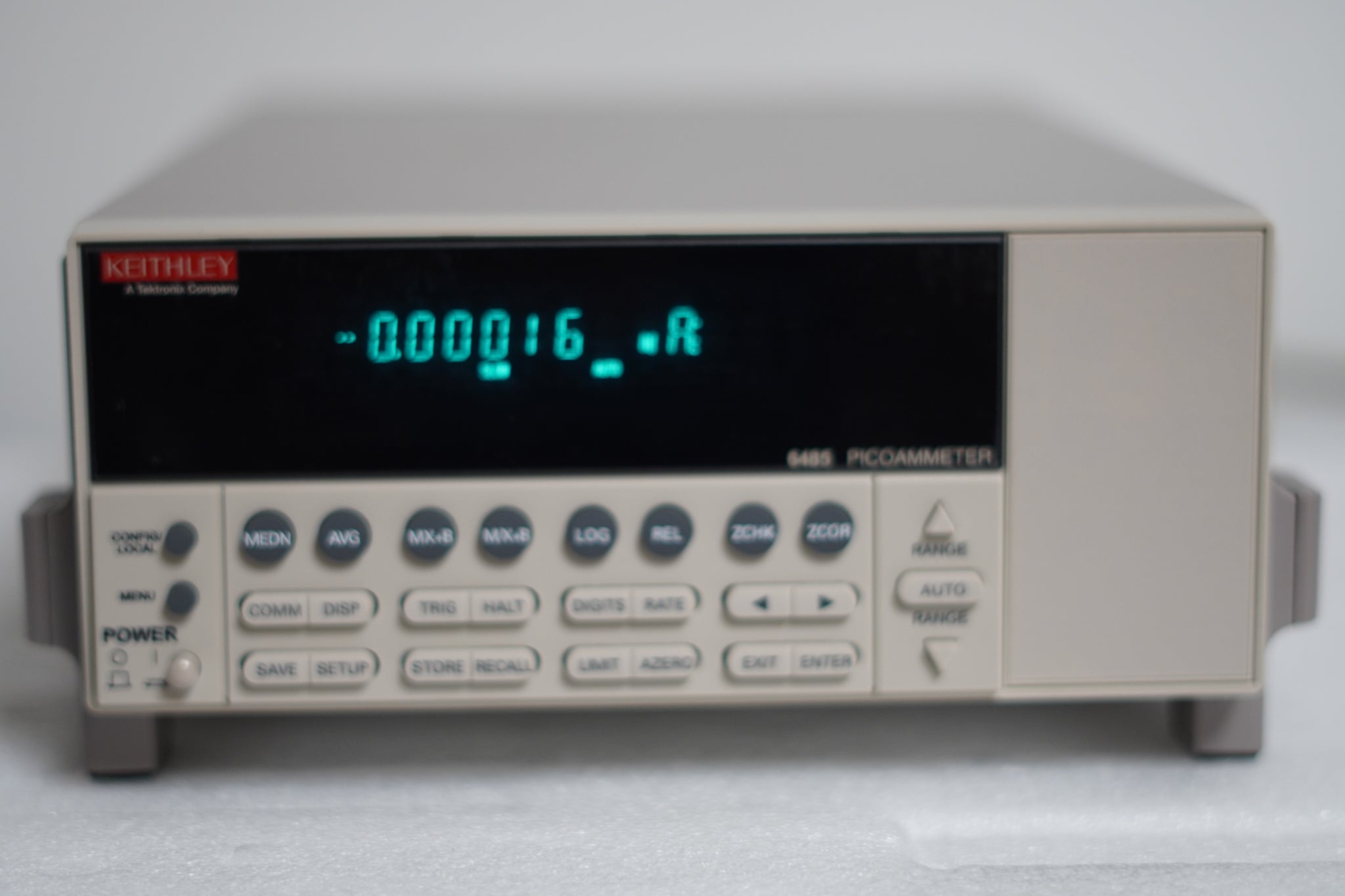

Keithley 6485 Picoammeter, 5½-digit
Keithley 6485 Picoammeter, 5½-digit
Product Overview
The 5-1/2 digit Model 6485 Picoammeter combines Keithley's expertise in sensitive current measurement instrumentation with enhanced speed and a robust design. With eight current measurement ranges and high speed autoranging, this cost-effective instrument can measure currents from 20fA to 20mA, taking measurements at speeds up to 1000 readings per second.
Features
- Cost-effective low current measurement solution
- 10fA resolution
- 5-1/2 digit resolution
- <200μV burden voltage
- Up to 1000 readings/second
- Built-in Model 485 emulation mode

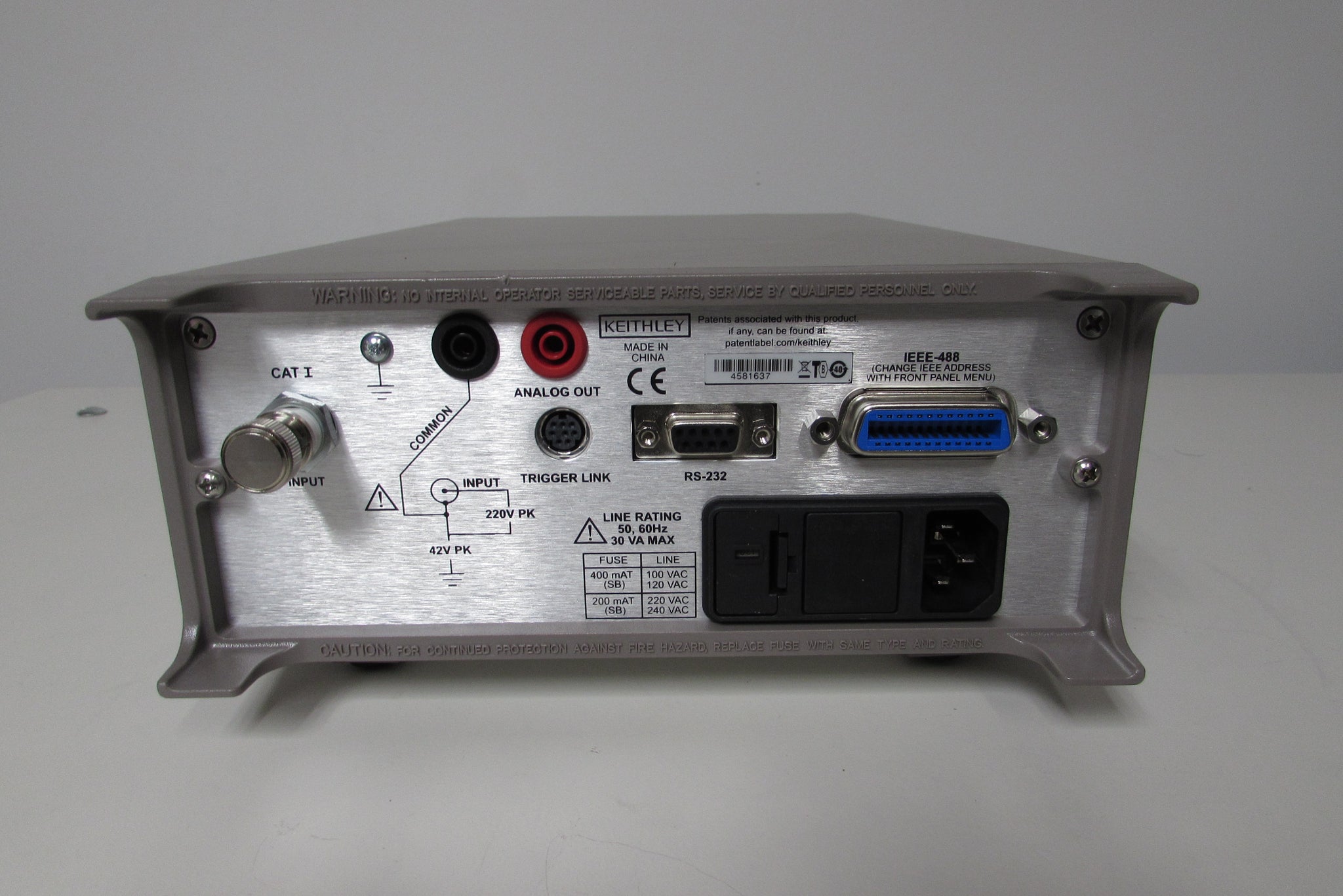

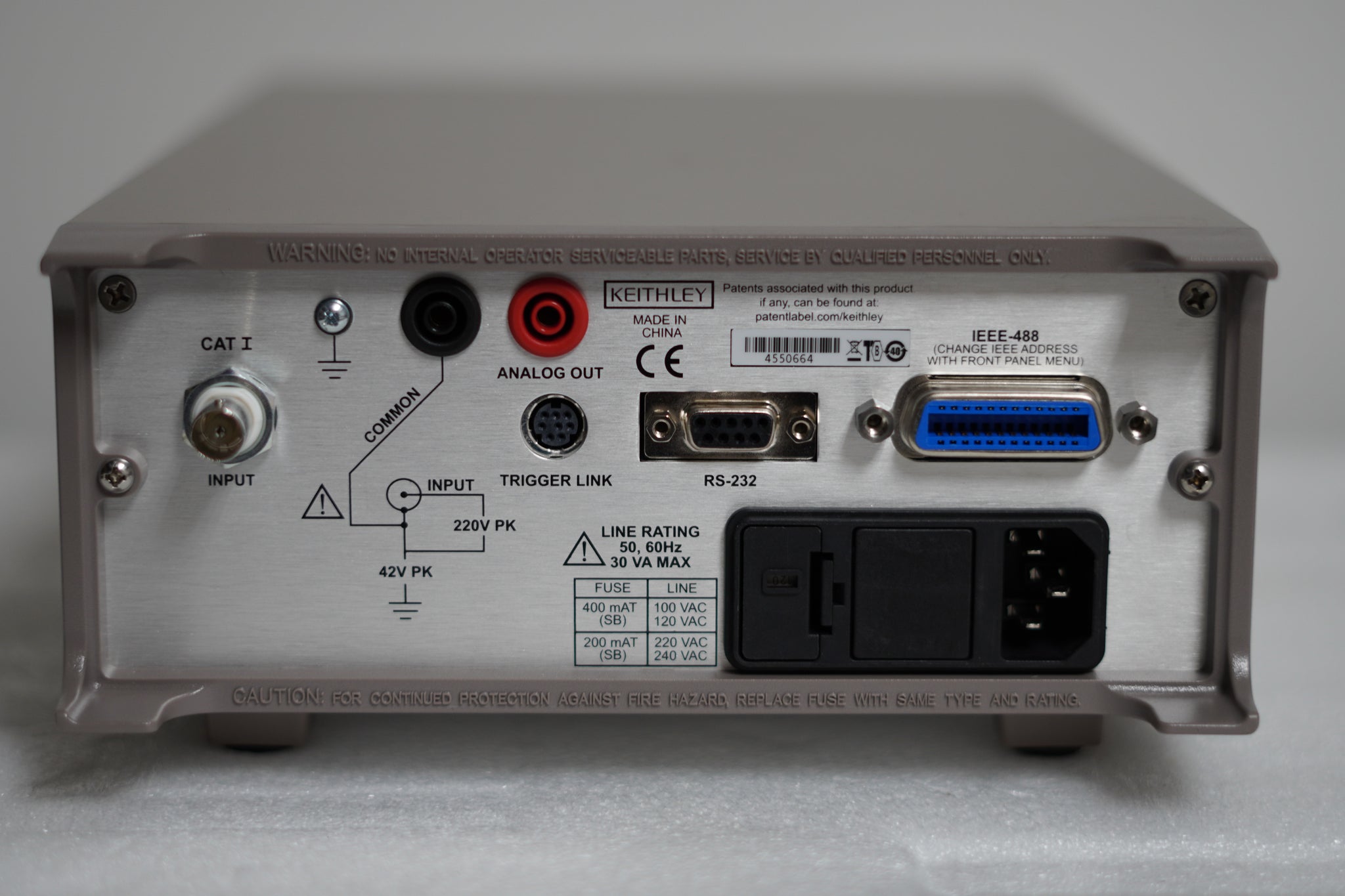

- IEEE-488 and RS-232 interfaces
- Analog output
