Agilent 16047A LCR Impedance Test Fixture for Axial/Radial
Product Overview
The Agilent 16047A is a fixture from Agilent. A fixture is a kind of electronic test equipment that continuously runs tests on a piece of equipment. Fixtures test electronic components, circuits, chips, and software. Engineers use fixtures to hold the equipment under test (EUT) in place and run tests using controlled electronic signals.
Axial and Radial Test Fixture Frequency: DC to 13 MHz Maximum Voltage: ±40 V peak max (AC+DC) Operating Temperature: 0°C to 55°C Terminal Connector: 4-Terminal Pair, BNC DUT Connection: 4-Terminal Proportional Error Impedance: ±5 x (f/10)²; f: [MHz] Dimensions (approx.): 124 (W) x 31 (H) x 62 (D) mm Applicable Instruments: 4263B, 4268A, 4279A, 4284A, 4285A, 4288A, 4294A, (4192A, 4194A, 4263A, 4278A)
We ship worldwide. Most in-stock items ship the same business day when ordered by 2:00 PM PT. Every instrument is professionally packed, insured, and shipped with tracking. Shipping cost is calculated at checkout.
We accept all major credit cards, PayPal, and Shop Pay. Purchase orders are welcome from qualified businesses, universities, and government agencies — contact us for terms.
All items sold include a 14-Day Right-to-Return and a 90-Day Warranty (unless otherwise noted in the description above).

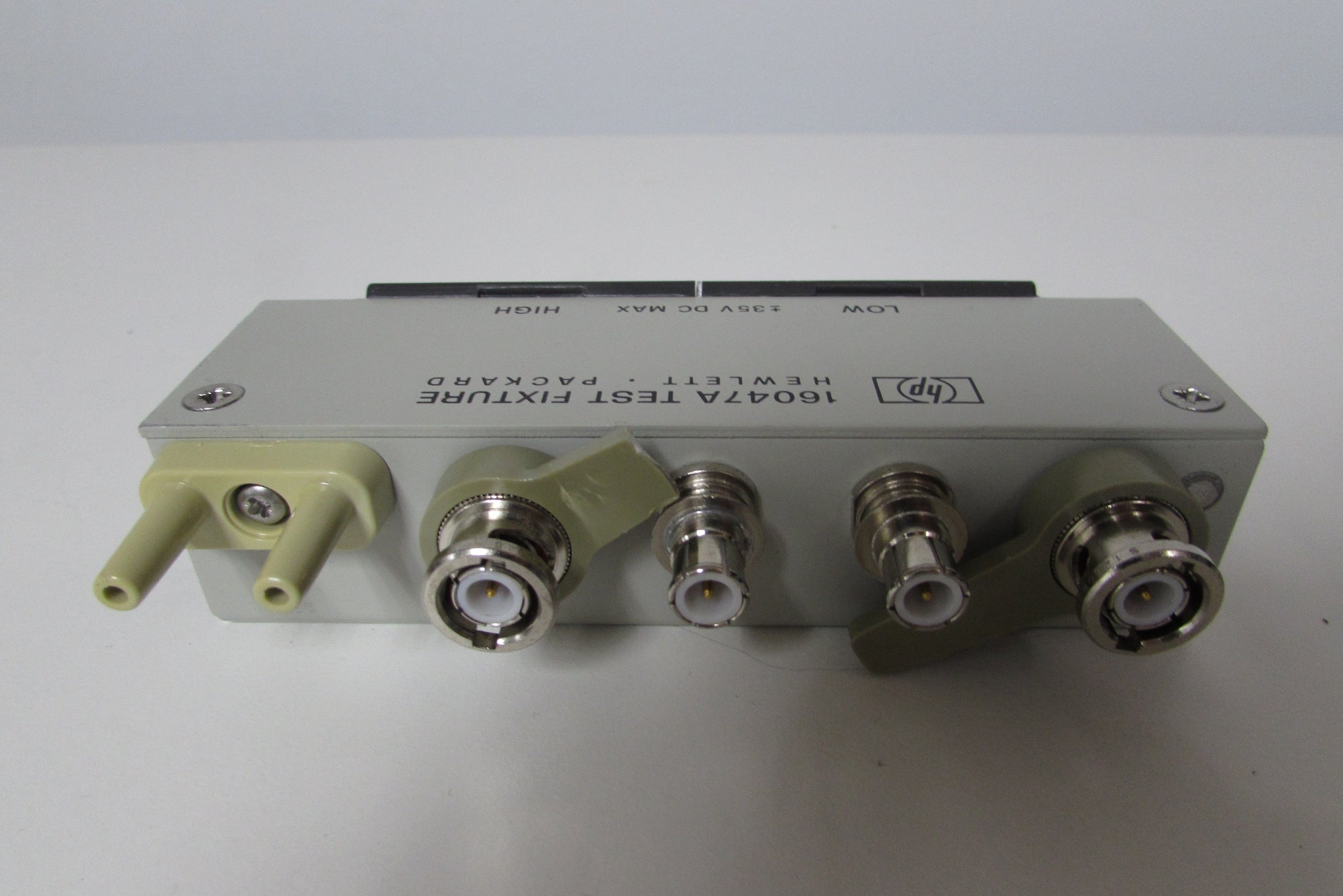

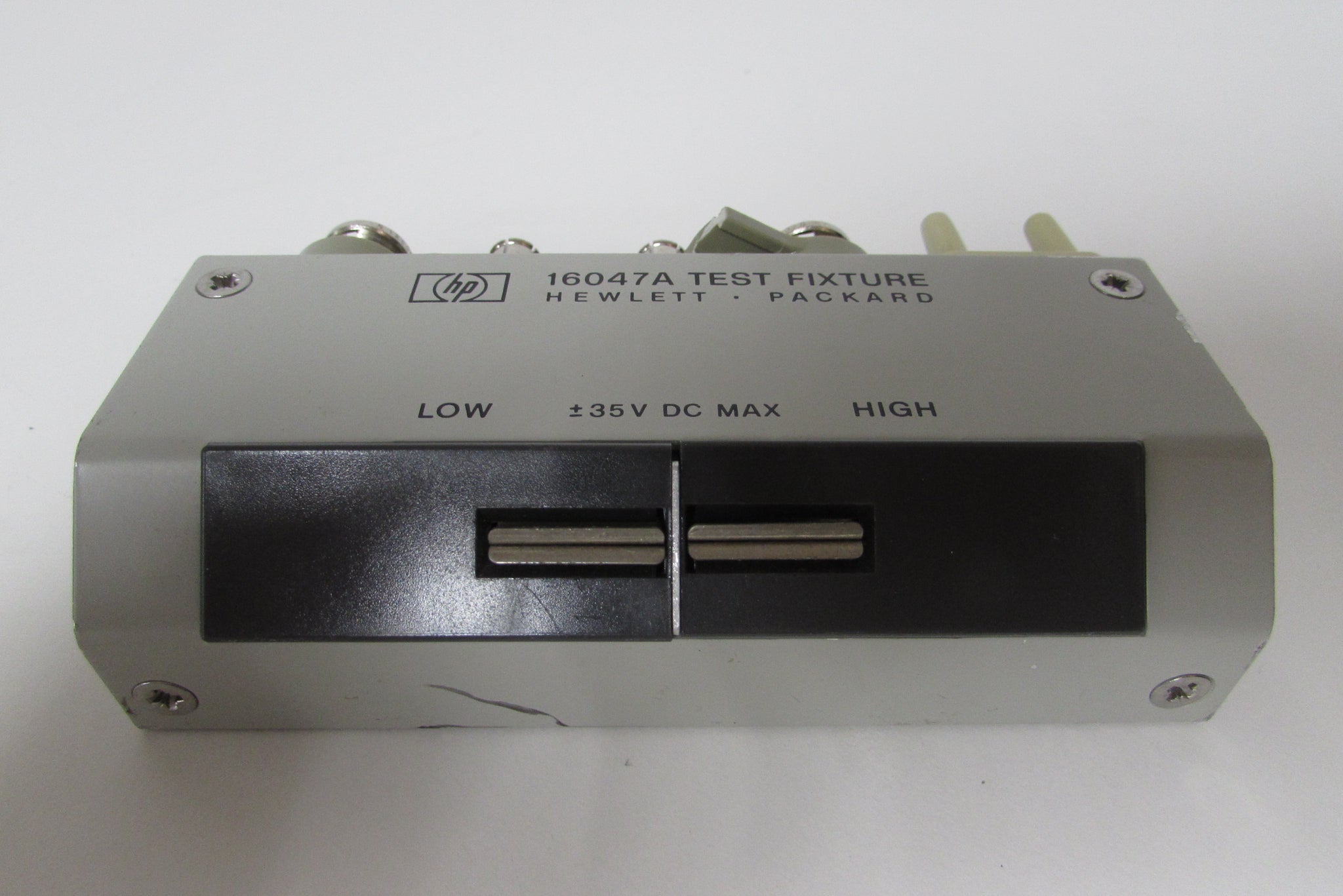

The photos in the listing are of the actual item (or equivalent to the item being sold).
