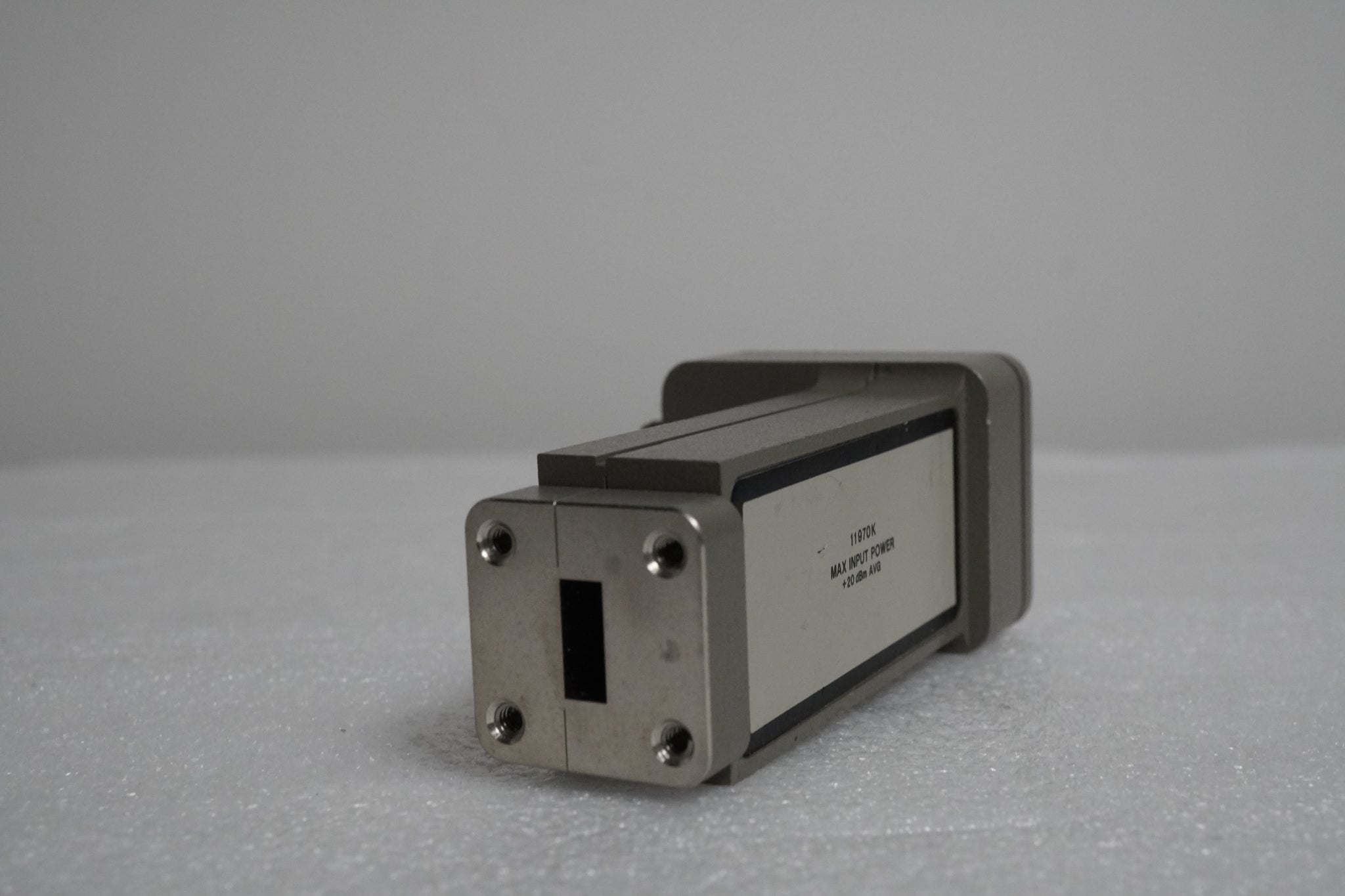

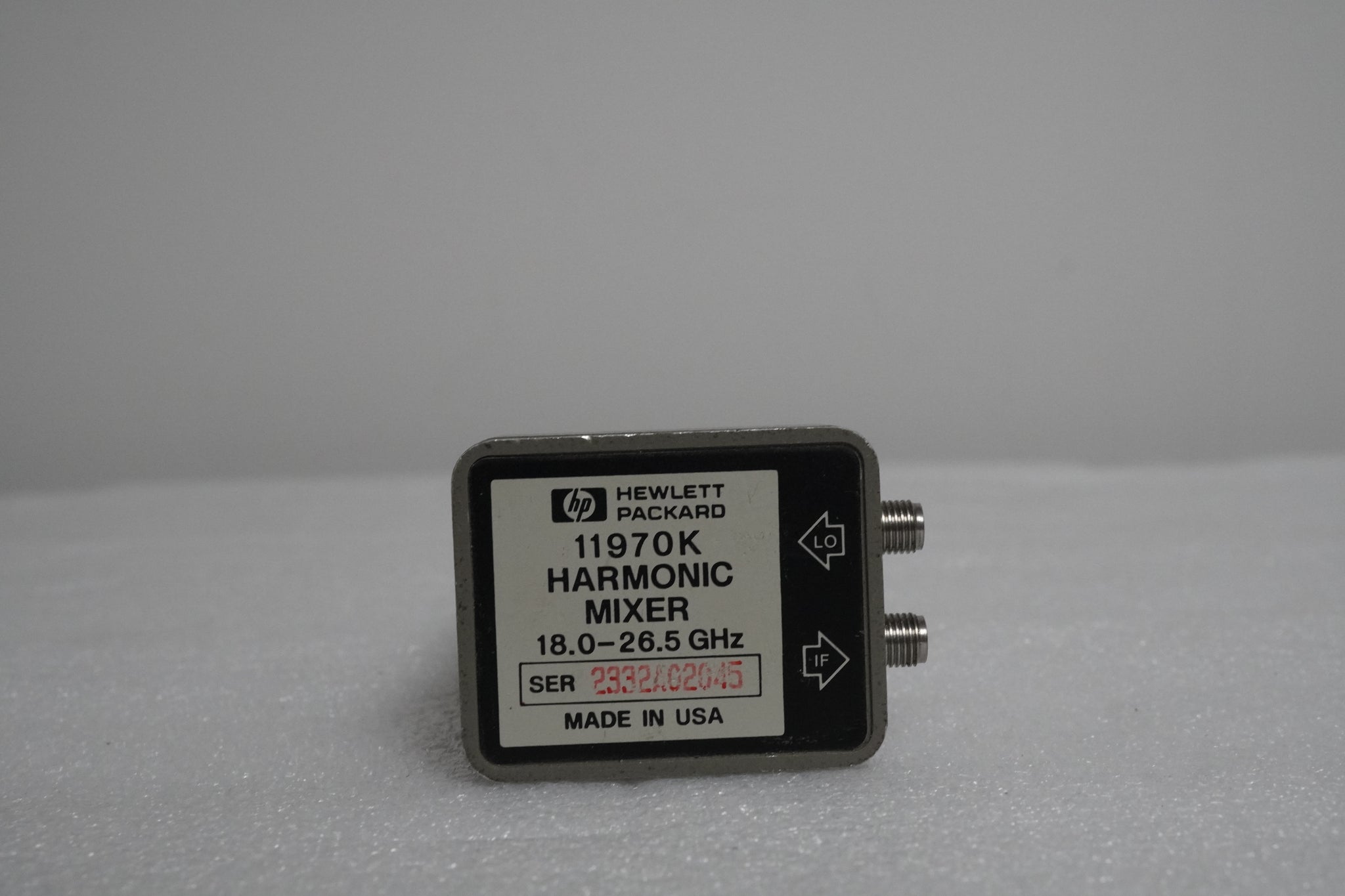

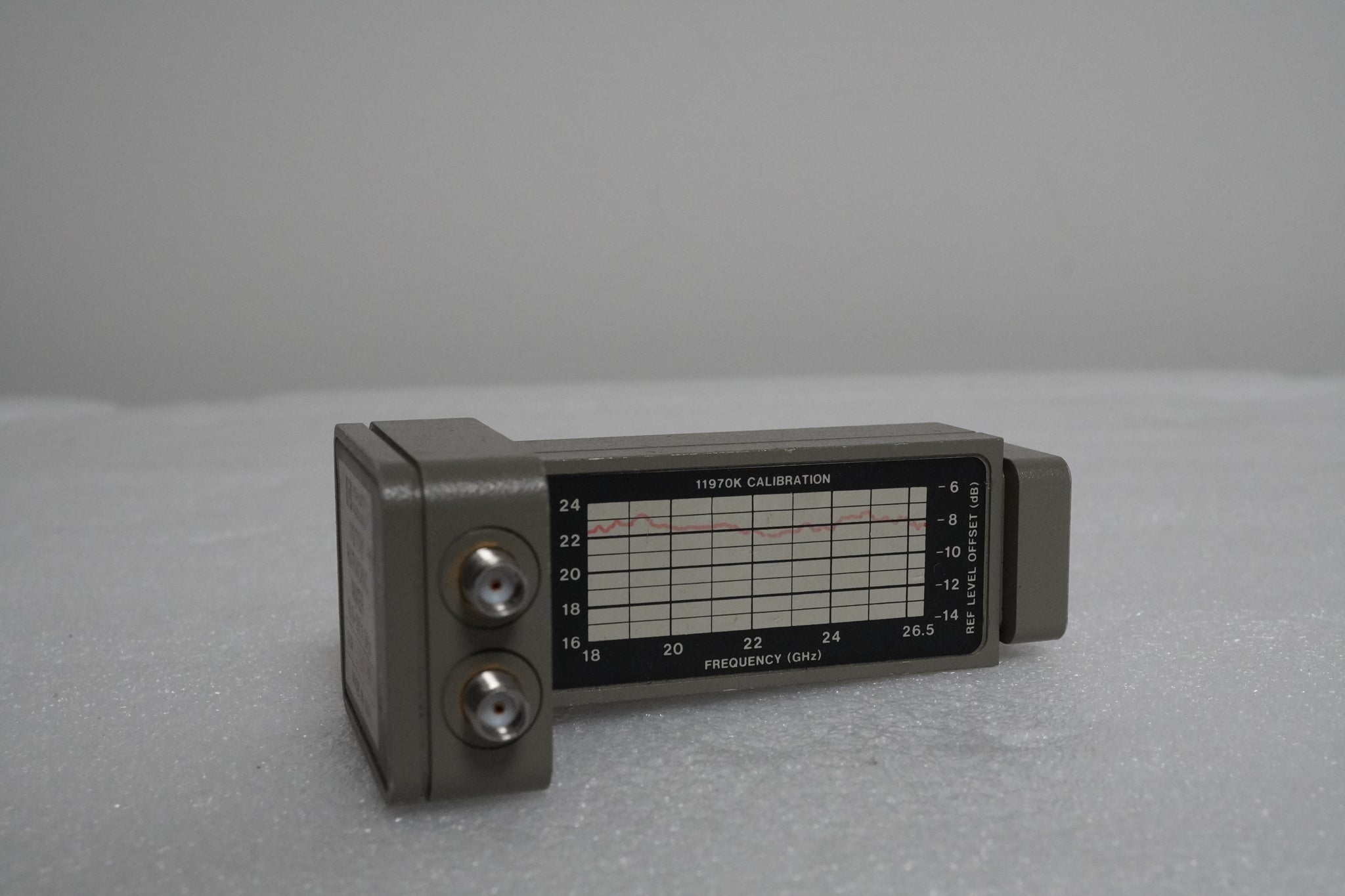

Agilent HP 11970K Waveguide Harmonic Mixer, 18 - 26.5 GHz

Product Overview

The Agilent 11970K waveguide mixer is a general-purpose harmonic mixer employing a dual-diode design to achieve flat frequency response and low conversion loss. These are achieved without external DC bias or tuning stubs. Manual operation and computer-controlled hardware operation are simplified because mixer bias and tuning adjustment are not required.

The 11970K extends the frequency range of the Agilent spectrum analyzers to the K-Band (18 to 26.5 GHz). The compatible Agilent spectrum analyzers include: the E4440A/E4446A/E4448A PSA (with Option AYZ), the E4407B ESA-E (with Option AYZ), the 856xEC, the 8566B (with a preamplifier), and the 7000 modular analyzer (with the 70907A/B external mixer interface module).

Additional Features:

  • 18 to 26.5 GHz
  • Flat frequency response
  • Low conversion loss
  • No bias or tuning adjustments
  • 100 mW safe input level
