Agilent 8495B + 8494B Manual Step Attenuator Set, Opt 001 (Type-N)

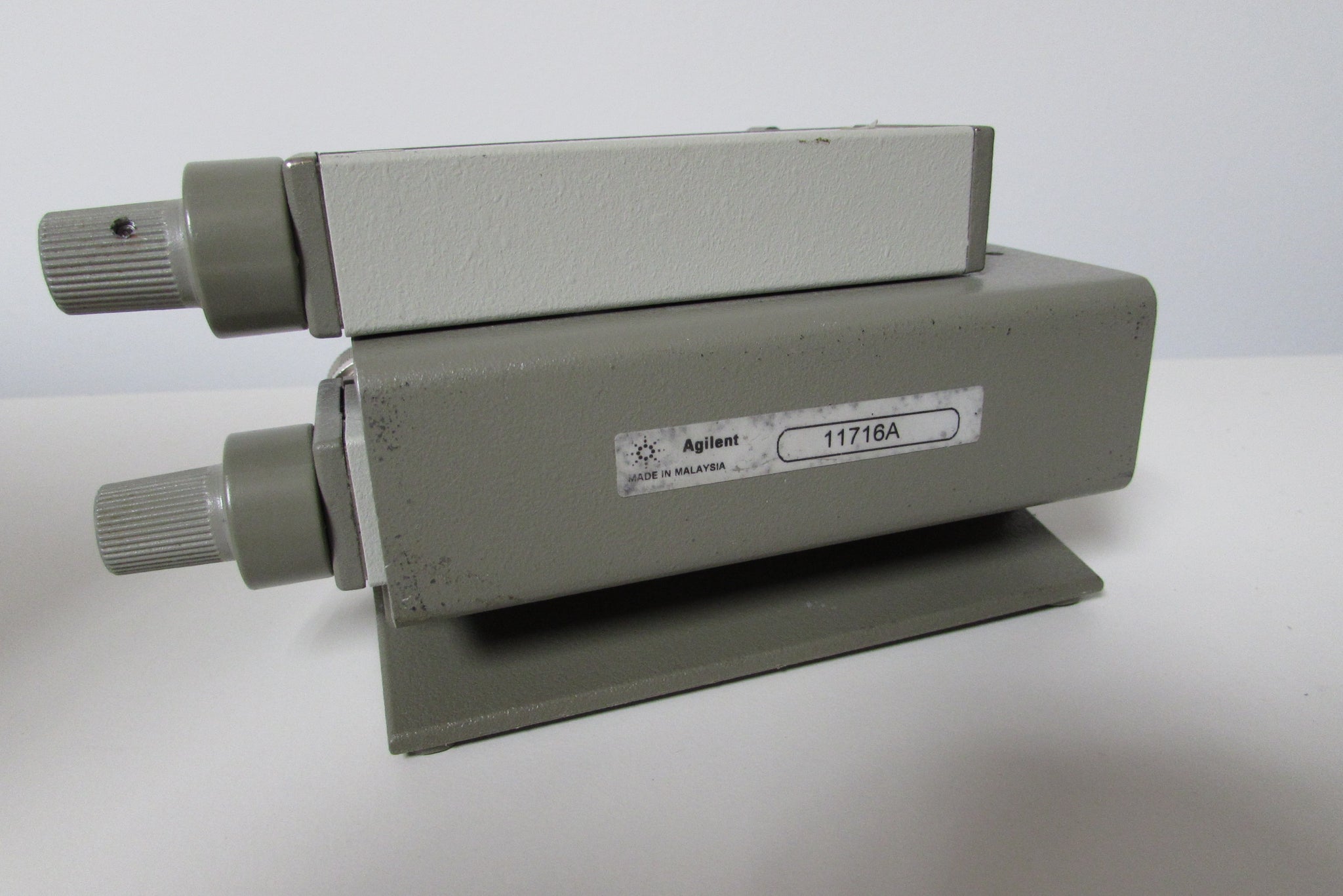

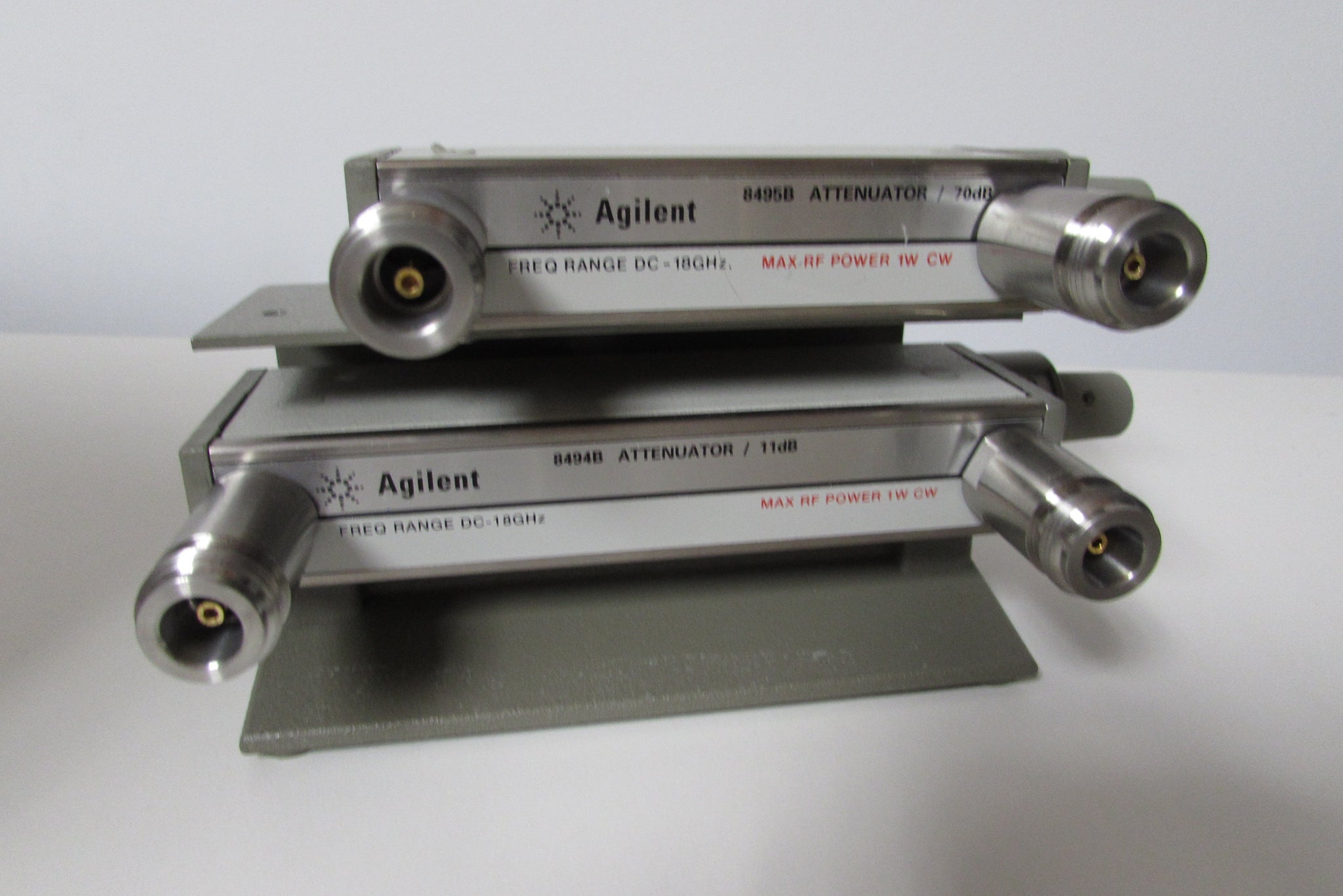

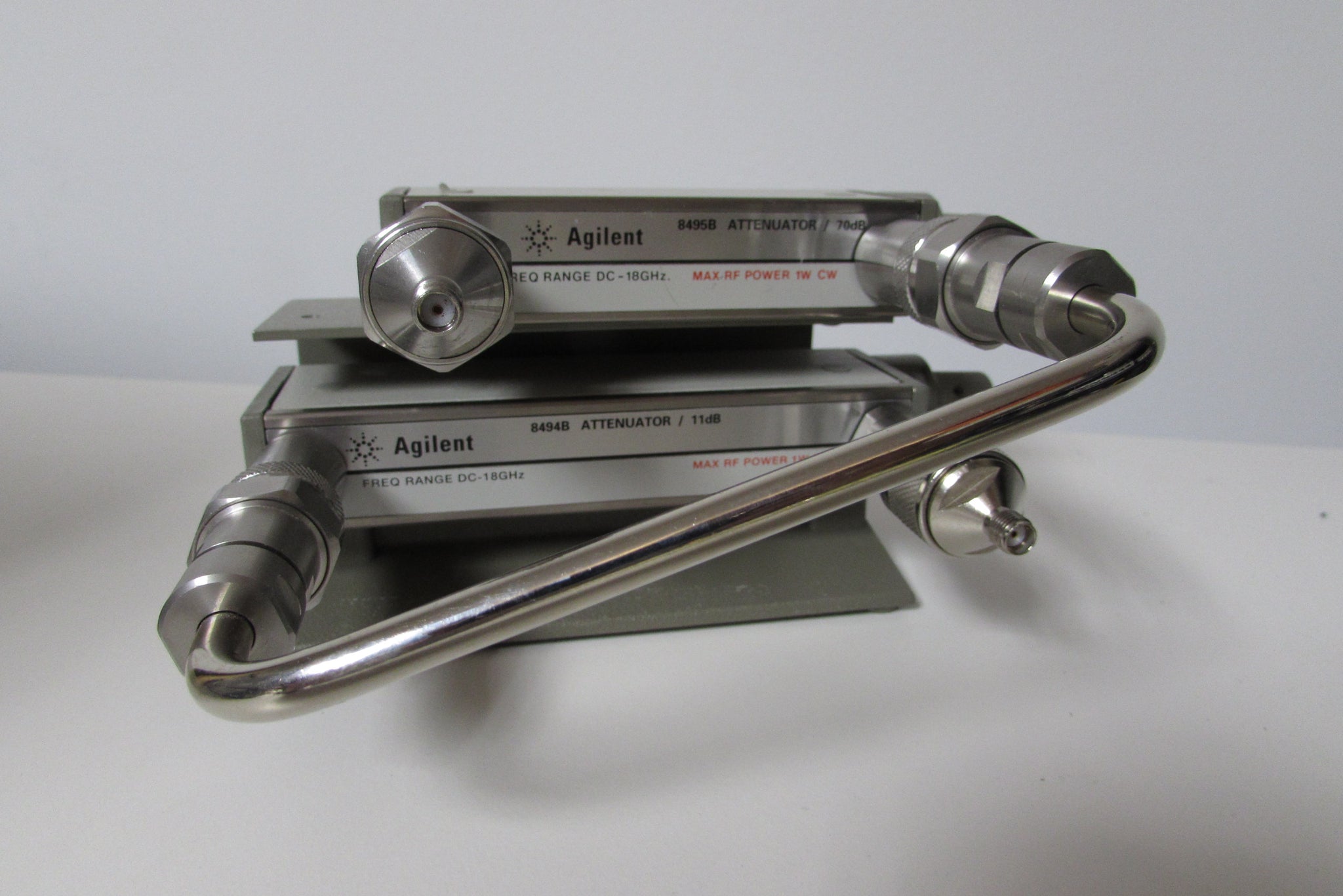

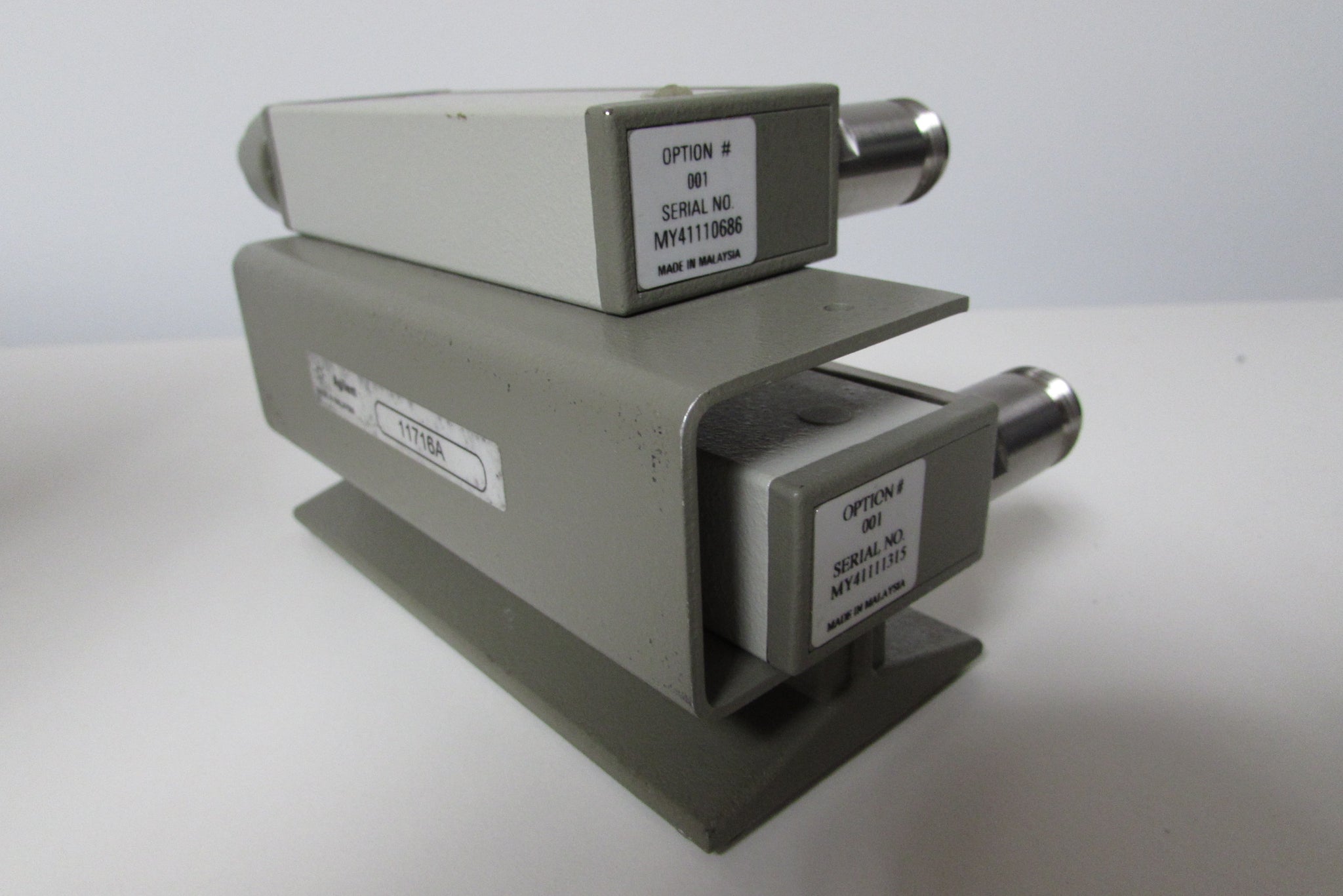

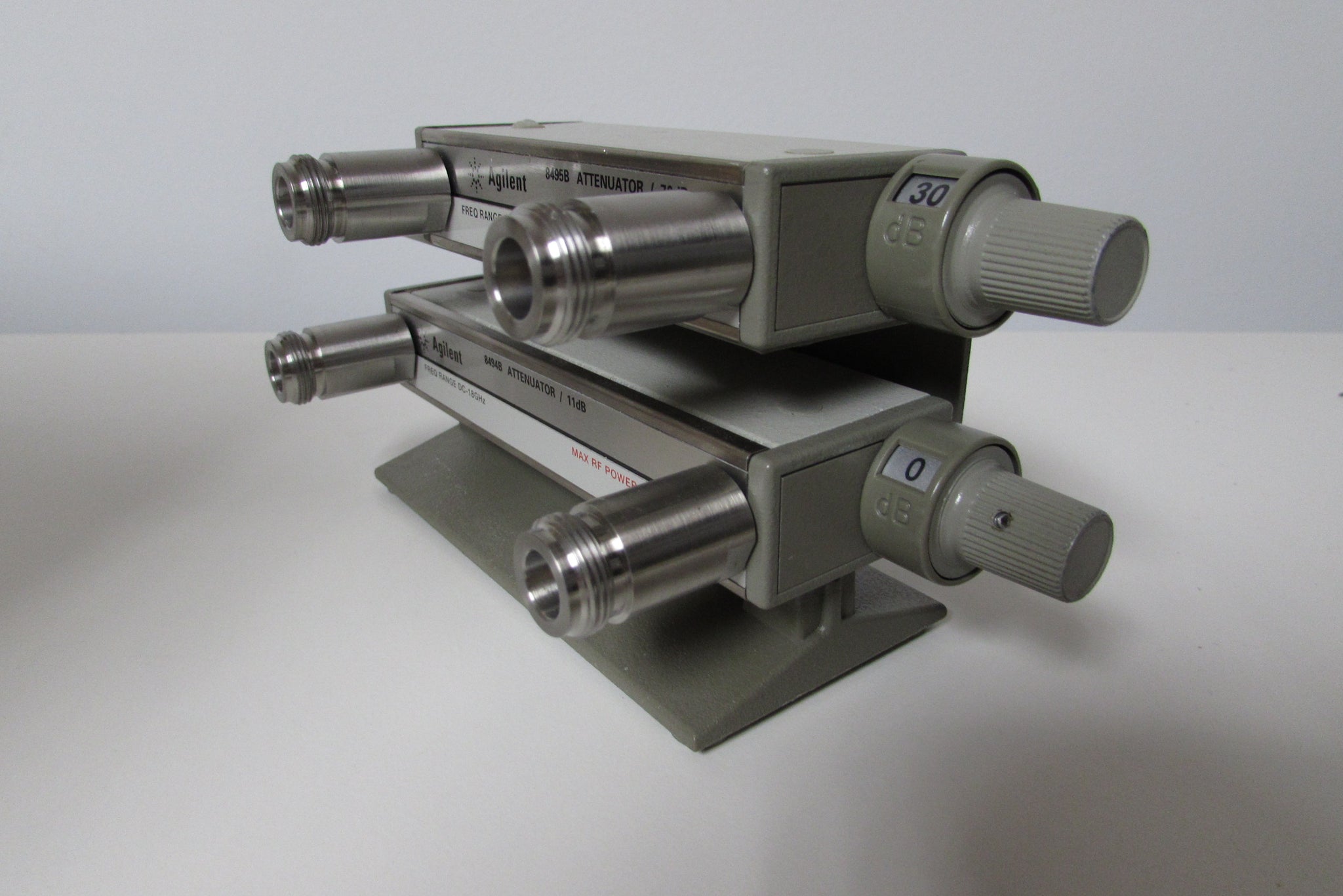

Agilent 8495B + 8494B Manual Step Attenuator Set, Opt 001 (Type-N) + 11716A bracket + 08445-20022 N(M)-N(M) Hardline Cable 5.75" Connects

Product Overview

The Keysight 8495B dc to 18 GHz manual step attenuator offers exceptional repeatability and reliability. It provides attenuation in 10-dB steps from 0 to 70 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, Option UK6 provides NIST traceable data (SWR and attenuation). Custom step attenuator / switch combinations are possible. The Keysight 11716A / B / C interconnect kits provide quick connection of Keysight 8494 / 5 / 6  /7 1-dB and 10-dB step attenuators in series for greater dynamic range with 1-dB steps.

The Agilent 8494B is a used Manual Step Attenuator that offers exceptional repeatability and reliability. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option 890. Custom step attenuator/switch combinations are possible. The Agilent 11716A/B/C interconnect kits provide quick connection of Agilent 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.
