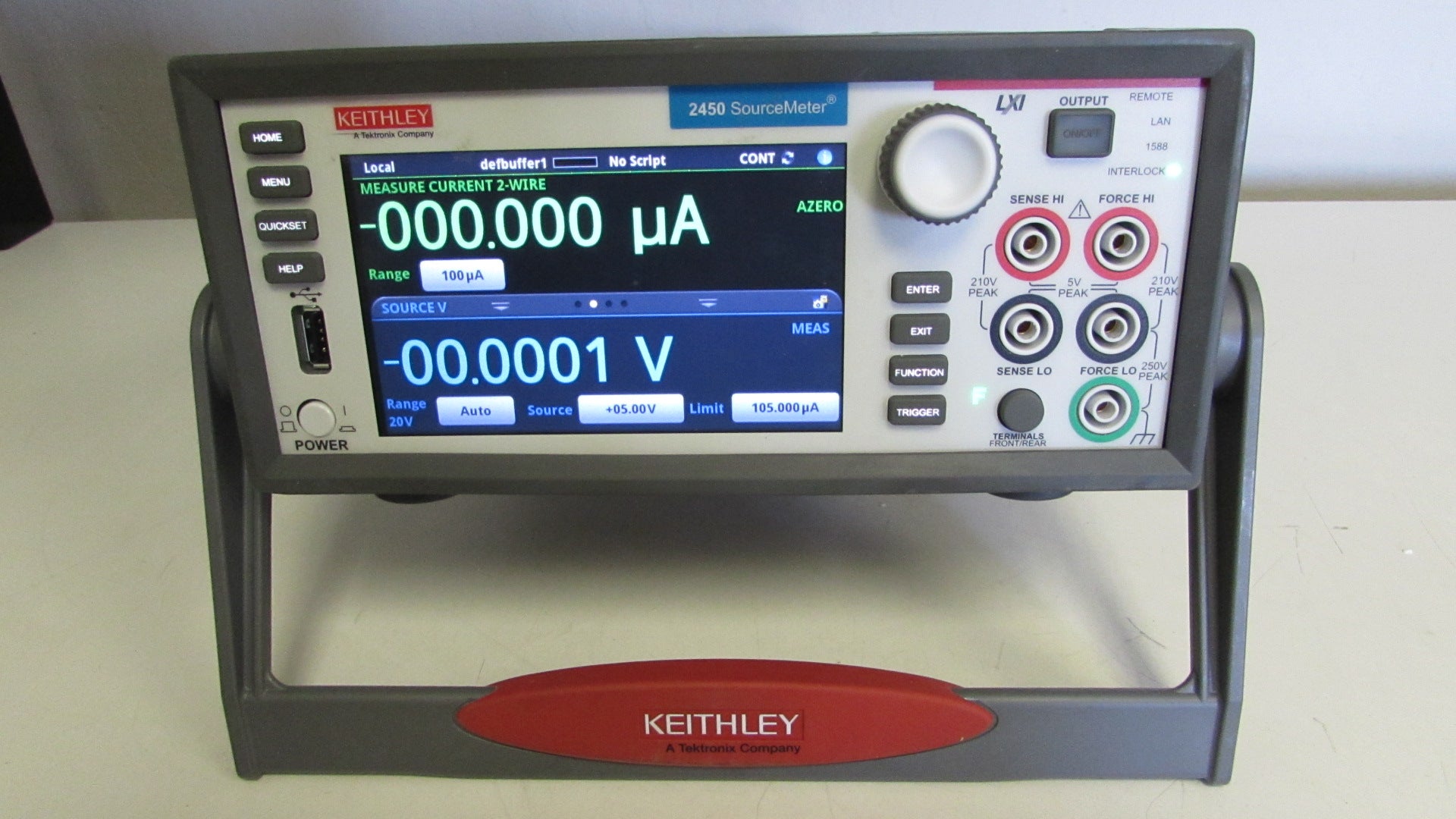

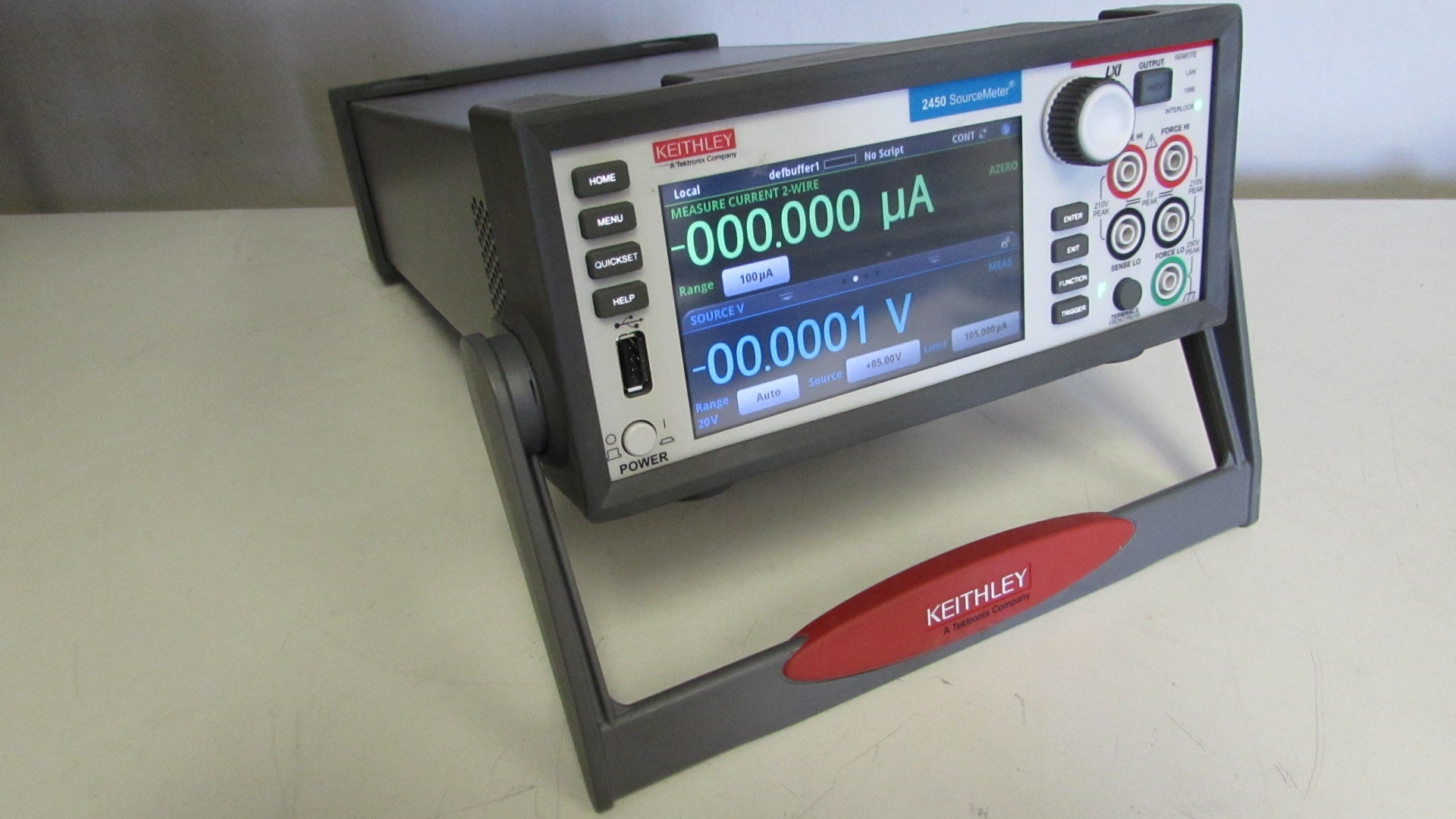

Keithley 2450 Source Meter / Unit, Current/Resistance/Voltage Measure, Current/Voltage Source, 20 W, 20mV to 200V

Keithley 2450 Source Meter / Unit, Current/Resistance/Voltage Measure, Current/Voltage.  This unit is missing the back bumper and there's a few scratches on the case.  Unit tested good (source and measure correctly).

Product Overview

The Keithley 2450 200V/1A/20W Advanced Touchscreen SourceMeter SMU Instrument truly brings Ohm's law (current, voltage, and resistance) testing right to your fingertips. Its innovative graphical user interface (GUI) and advanced, capacitive touchscreen technology allow intuitive usage and minimize the learning curve to enable engineers and scientists to learn faster, work smarter, and invent easier. The 2450 is the SMU for everyone: a versatile instrument, particularly well-suited for characterizing modern scaled semiconductors, nano-scale devices and materials, organic semiconductors, printed electronics, and other small-geometry and low-power devices. All this combined with Keithley SMU precision and accuracy allow users to Touch, Test, InventTM with the new favorite go-to instrument in the lab for years to come.

Features:

Capability of analyzers, curve tracers, and I-V systems at a fraction of the cost
200V, 1A, 20W
Five-inch, high resolution capacitive touchscreen GUI
0.012% basic measure accuracy with 6 1/2-digit resolution
Enhanced sensitivity
Source and sync (4-quadrant) operation
Four "Quickset" modes for fast setup and measurements
Built-in, context-sensitive front panel help
Front panel input banana jacks

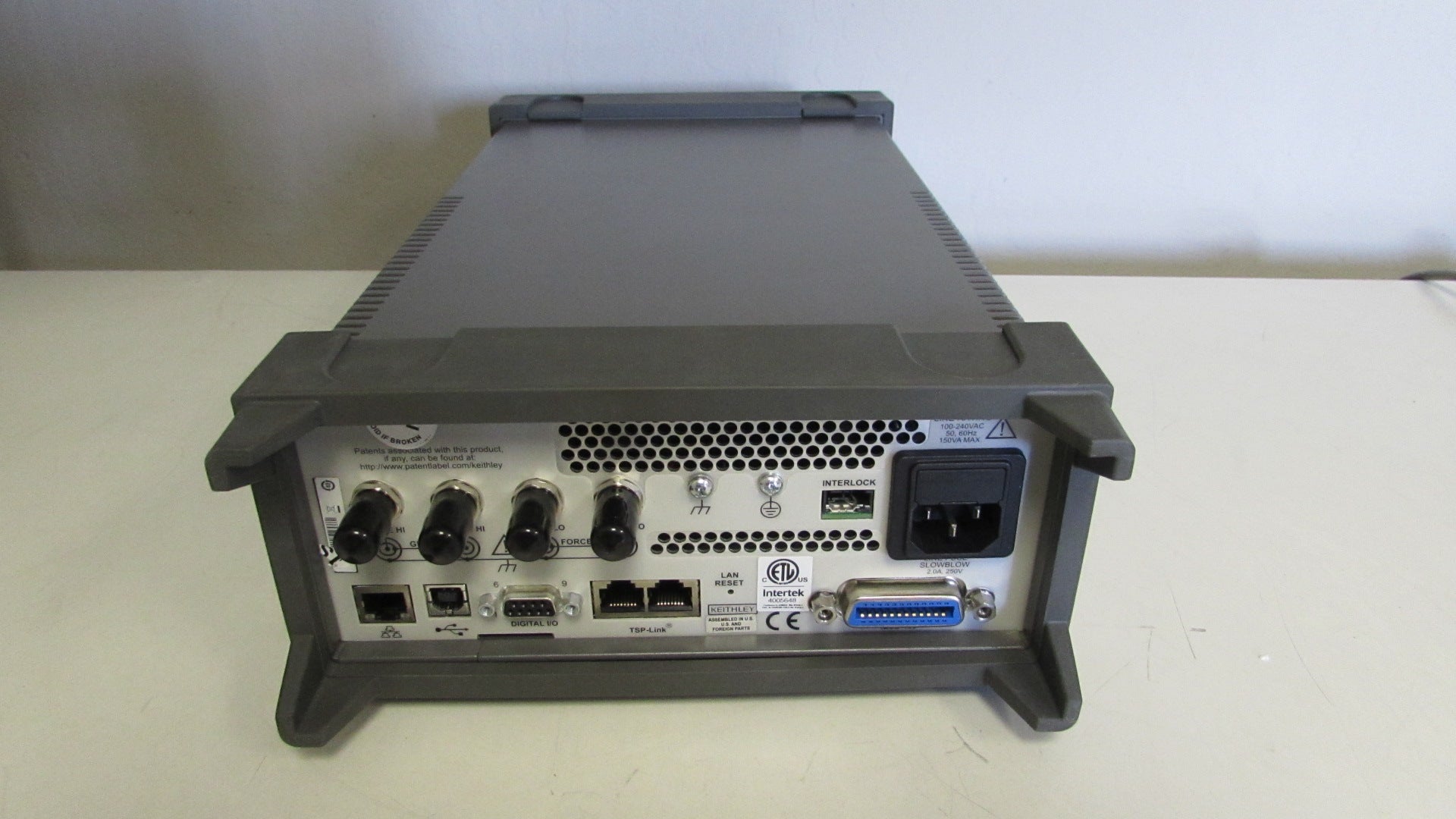

Rear panel input triaxial connections
2450 SCPI and TSP scripting programming modes
Model 2400 SCPI-compatible programming mode
Front panel USB memory port for data/programming/configuration I/O

Applications:
Nanomaterials and devices
Graphene
Carbon nanotubes
Nanowires
Low power nanostructures
Semiconductor structures
Wafers
Thin films
Organic materials and devices
E-inks
Printable electronics
Energy efficiency and lighting
LEDs/AMOLEDs
Photovoltaics/solar cells
Batteries
Discrete and passive components
Two-leaded resistors, diodes, zener diodes, LEDs, disk drive heads, and sensors
Three-leaded small signal bipolar junction transistors (BJTs), field effect transistors (FETs) (and more)
Material characterization
Resistivity
Hall effect
