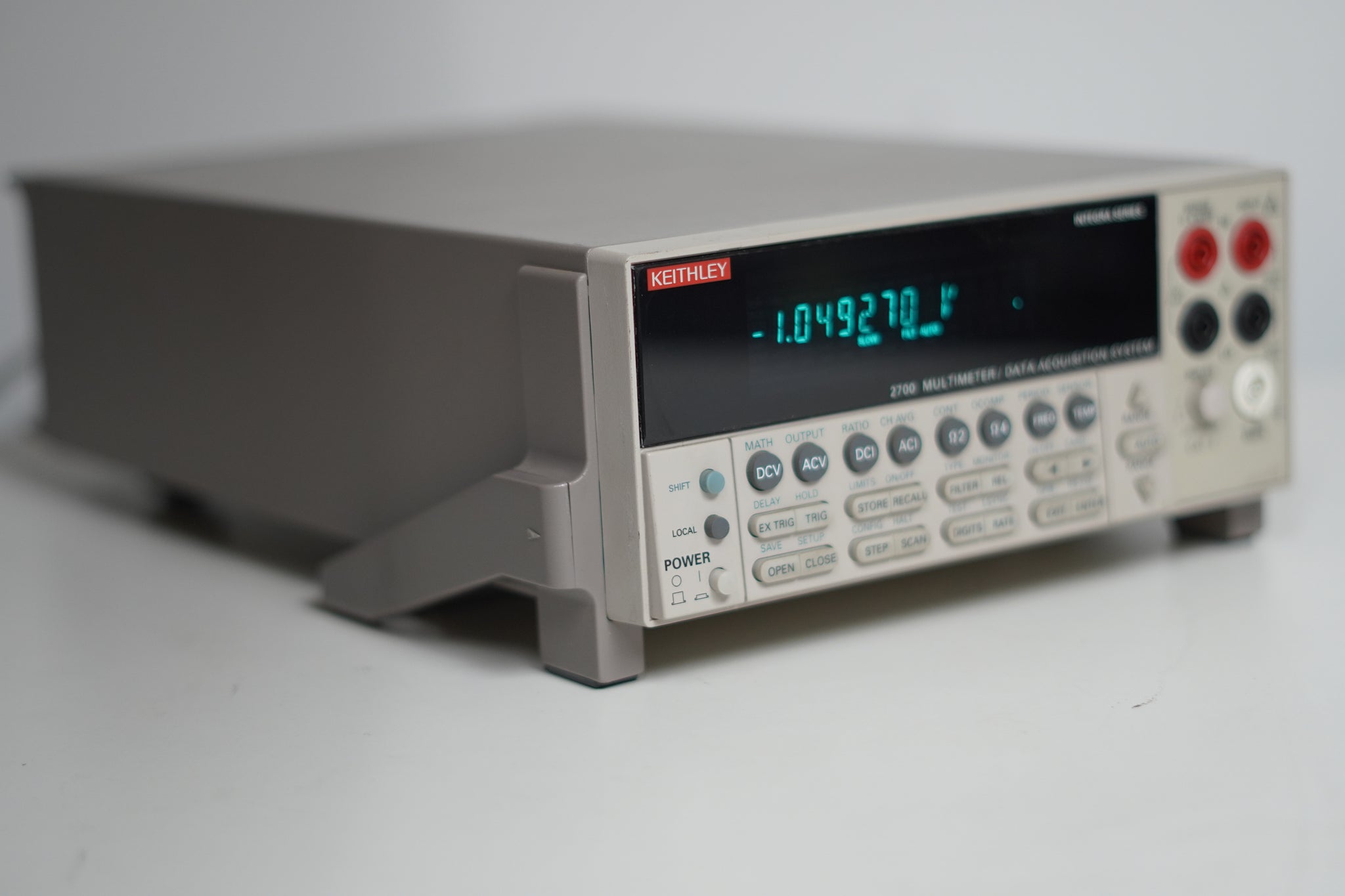

Keithley 2700 DMM, Data Acquisition, Datalogging System

  • $595.00
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Keithley 2700 DMM, Data Acquisition, Datalogging System, no module

Product Overview

Integra Series systems (2700, 2701, 2750) combine precision measurement, switching, and control in a single, tightly integrated enclosure for either rack-mounted or benchtop applications. These cost-effective, high performance test platforms offer affordable alternatives to separate DMMs and switch systems, dataloggers/recorders, plug-in card data acquisition equipment, and VXI/PXI systems. The Integra Series plug-in switching and control modules offer unmatched flexibility and testing efficiency for a wide range of industries and applications.

System builders can create test solutions with a combination of channel count, cost per channel, and system performance unmatched by any other singlebox measurement system. The input modules provide the flexibility to vary the channel count from 20 to 200 (2-pole), apply a stimulus to the device under test, route signals, control system components, and make precision measurements with up to 14 functions. Robust digital I/O capabilities can be used for triggering, handshaking with other automation equipment, and alarm limit outputs. Scan rates of up to 500 channels/second (up to 3500 readings/second on a single channel) will increase test productivity.

DMM, Data Acquisition, Datalogging System w/2 Slots
Combines functions of DMM, switch system, and datalogger
True 6½-digit (22-bit) resolution
Choice of 12 switch/control plug-in modules
Up to 200 differential input channels (with 300V isolation) for measurement and control

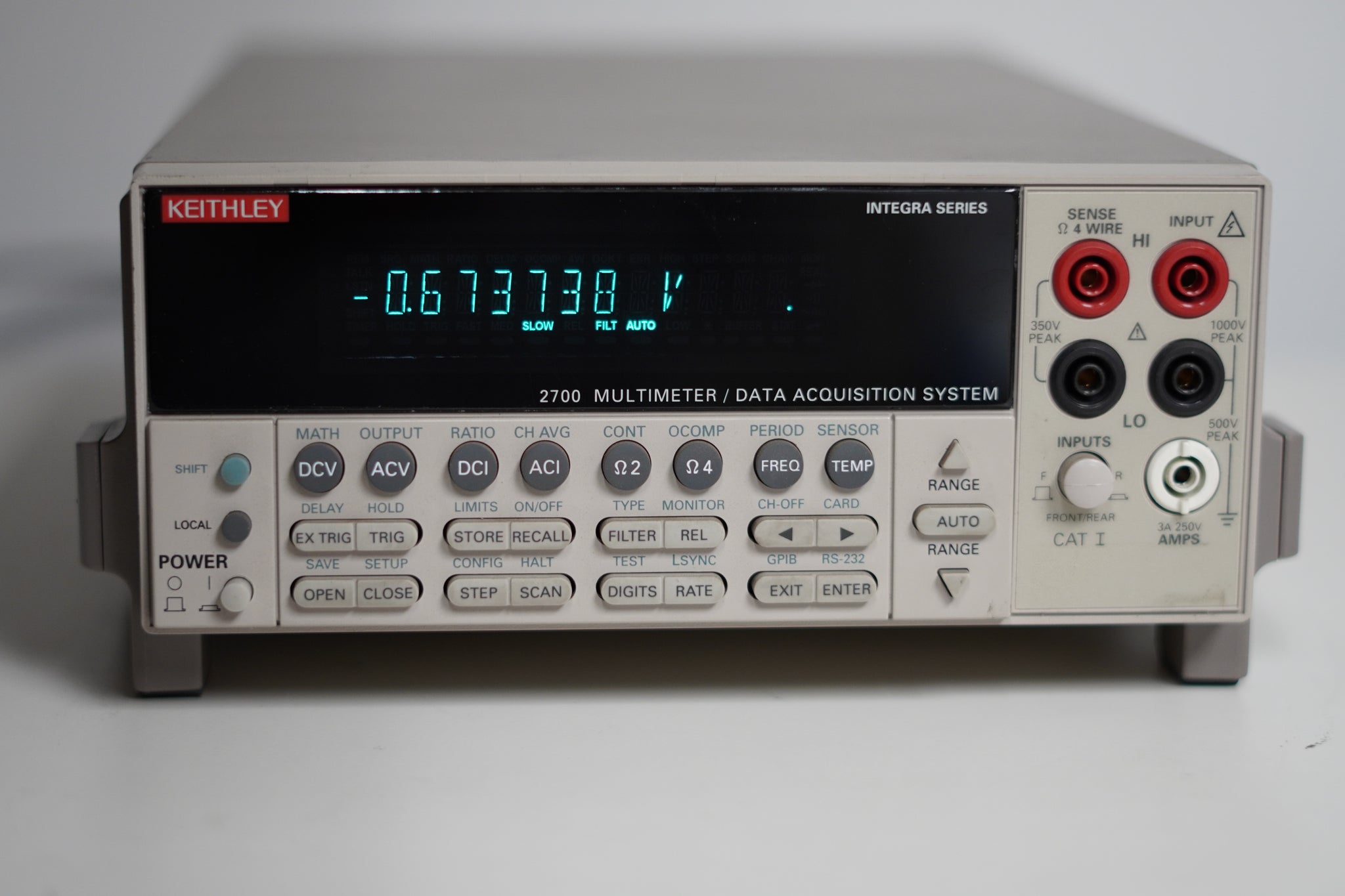

Convenient front panel inputs
Free LabVIEW™, LabWindows/CVI, Visual Basic, C/C++, and TestPoint™ drivers (IVI style)

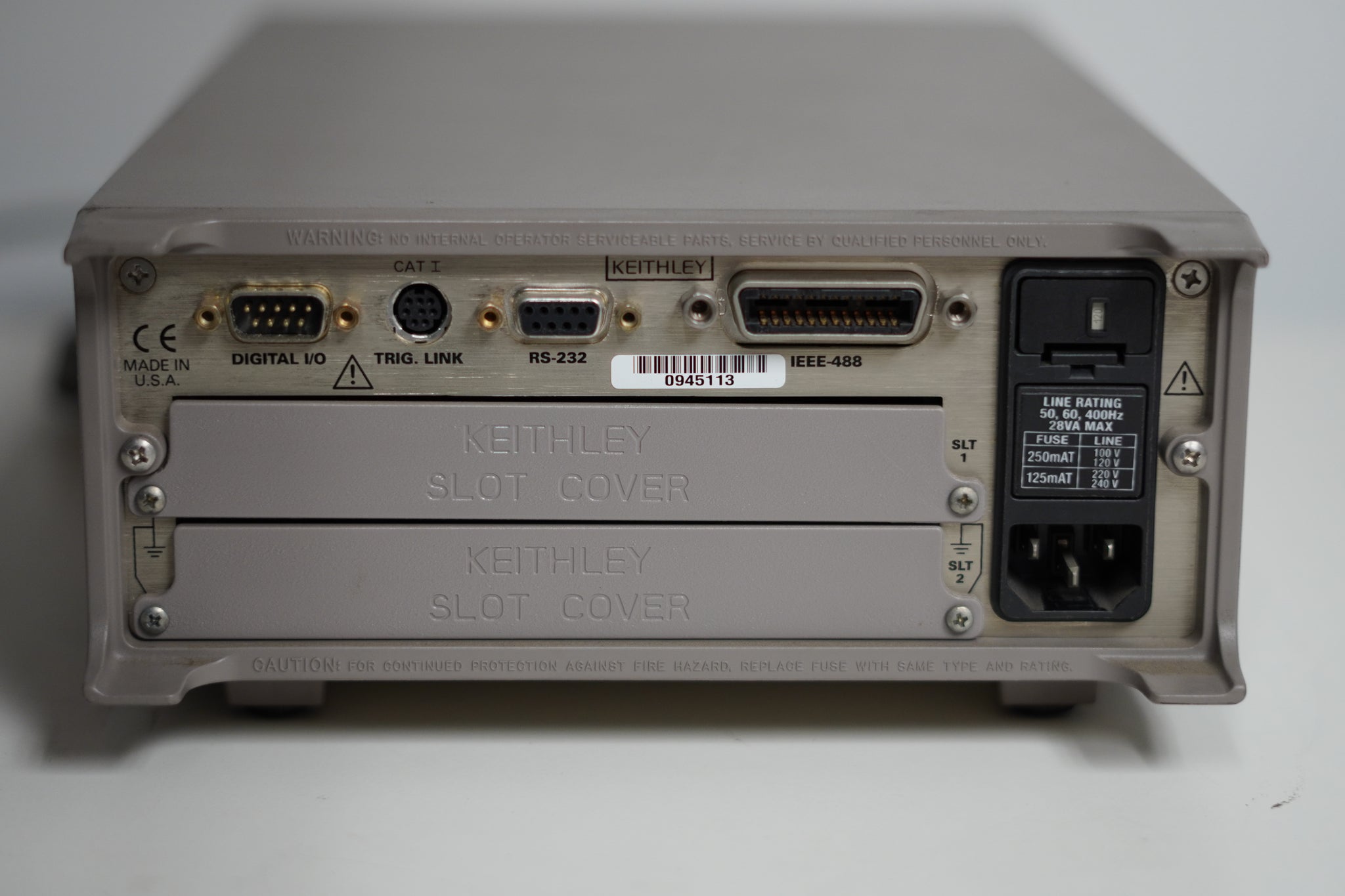

GPIB and RS-232 communications capabilities
Free ExceLINX™-1A datalogging software


Applications:
Production test of electronic products and devices
Accelerated stress testing (AST)
Process monitor and control
Device characterization/R&D
Low ohms, multichannel measurements
