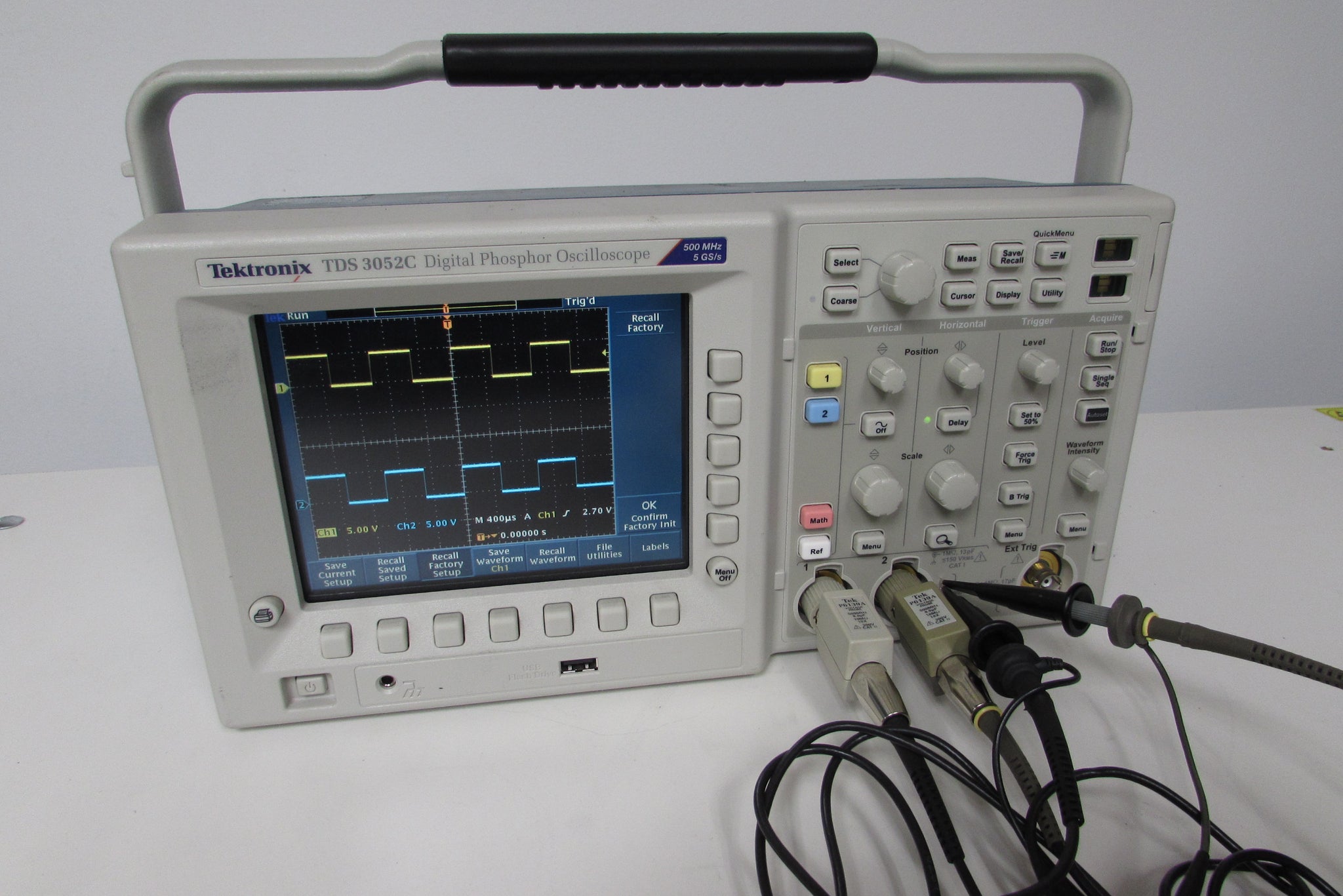

Tektronix TDS3052C Digital Oscilloscope 500MHz 5Gs/s 2CH, TDS3GV, 2 P6139A

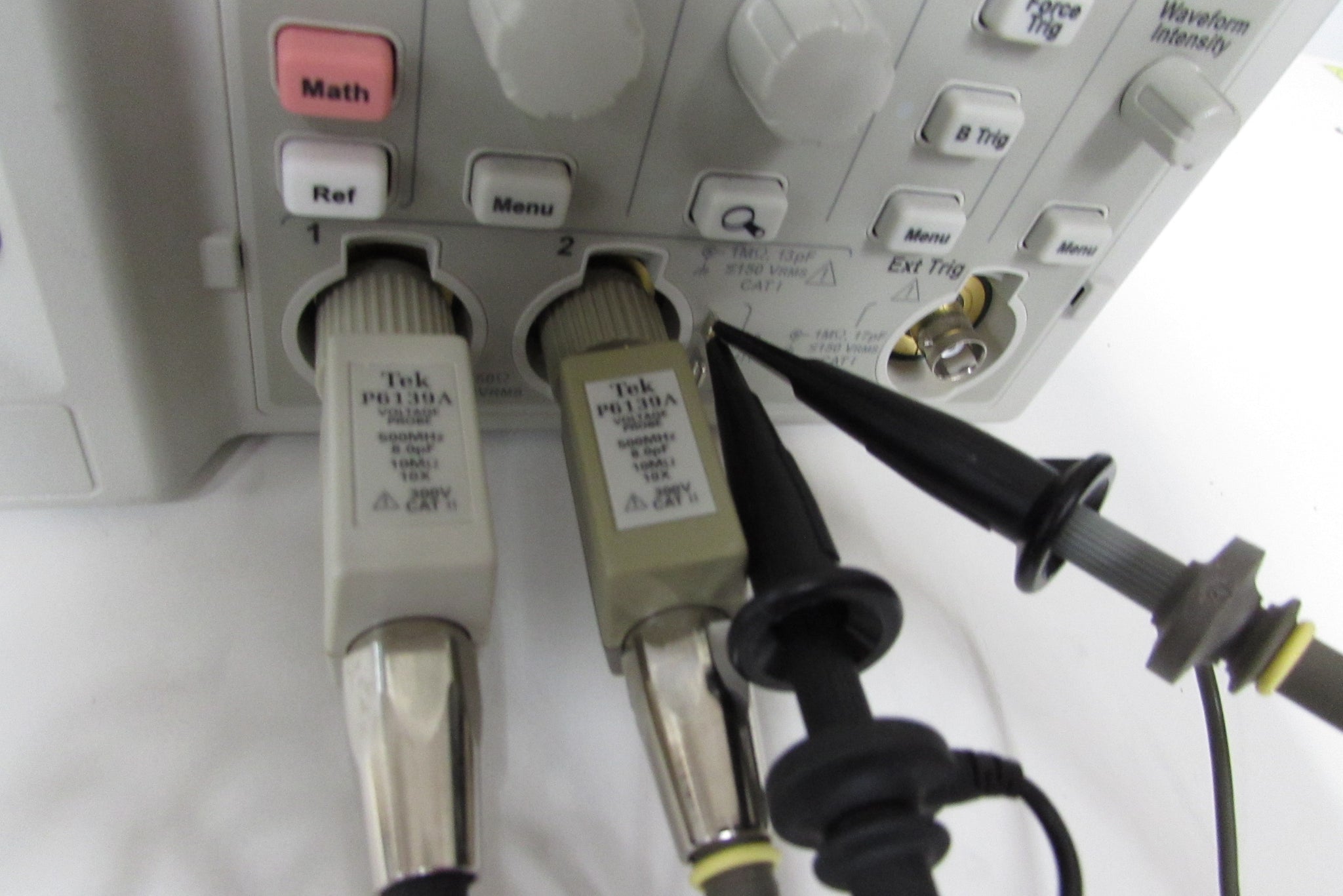

Tektronix TDS3052C Digital Oscilloscope 500MHz 5Gs/s 2CH, TDS3GV communication module, 2 P6139A passive probes.
Product Overview
The Tektronix The TDS3052C is a 2 Channel, 500 MHz, 5 GS/s, 10 kPts digital oscilloscope from Tektronix. It packs the power of a DPO in a compact design that is only 5.9 in. (149 mm) deep, freeing up valuable benchtop space. And when you need to move your oscilloscope to another lab, its portable 7 lb. (3.2 kg) design makes for easy transport.
Application:
- Digital design and debug
- Video installation and service
- Power supply design
- Education and training
- Telecommunications mask testing
- Manufacturing test
- General bench testing
Features:
- Bandwidth: 500 MHz
- Analog channels: 2
- Real time sample rates on all channels: 5 GS/s
- Record length on all channels: 10k
- Continuous waveform capture rate: 3,600 wfms/s
- Suite of advanced triggers
- Front-panel USB host port for easy storage and transfer of measurement data
- 25 automatic measurements
- FFT standard
- Multiple language user interface
- WaveAlert automatic waveform anomaly detection
- TekProbe interface supports active, differential, and current probes for automatic scaling and units
- Lightweight design (only 7 lb./3.2 kg) for easy transport
- Optional internal battery operation provides up to three hours without line power
