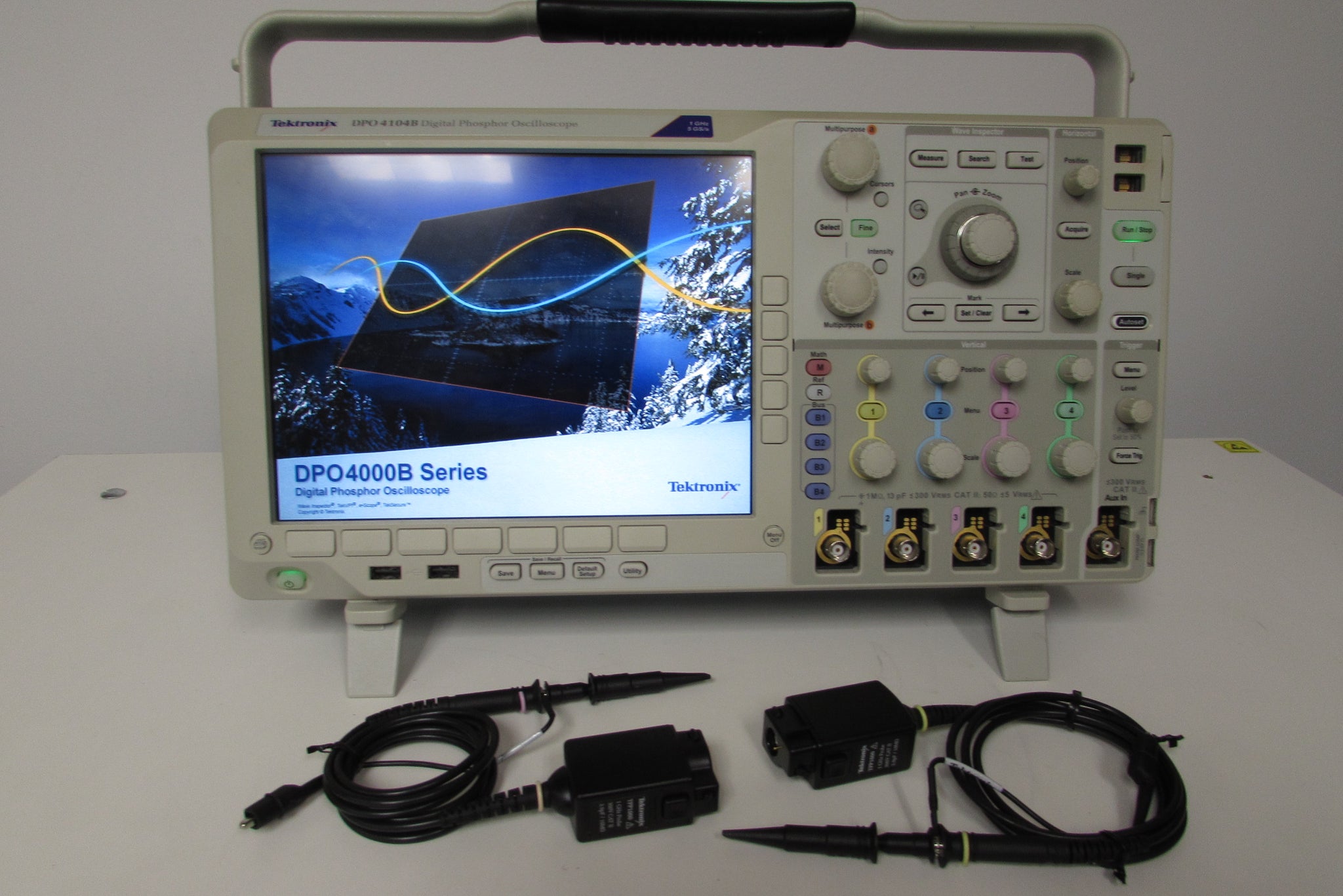

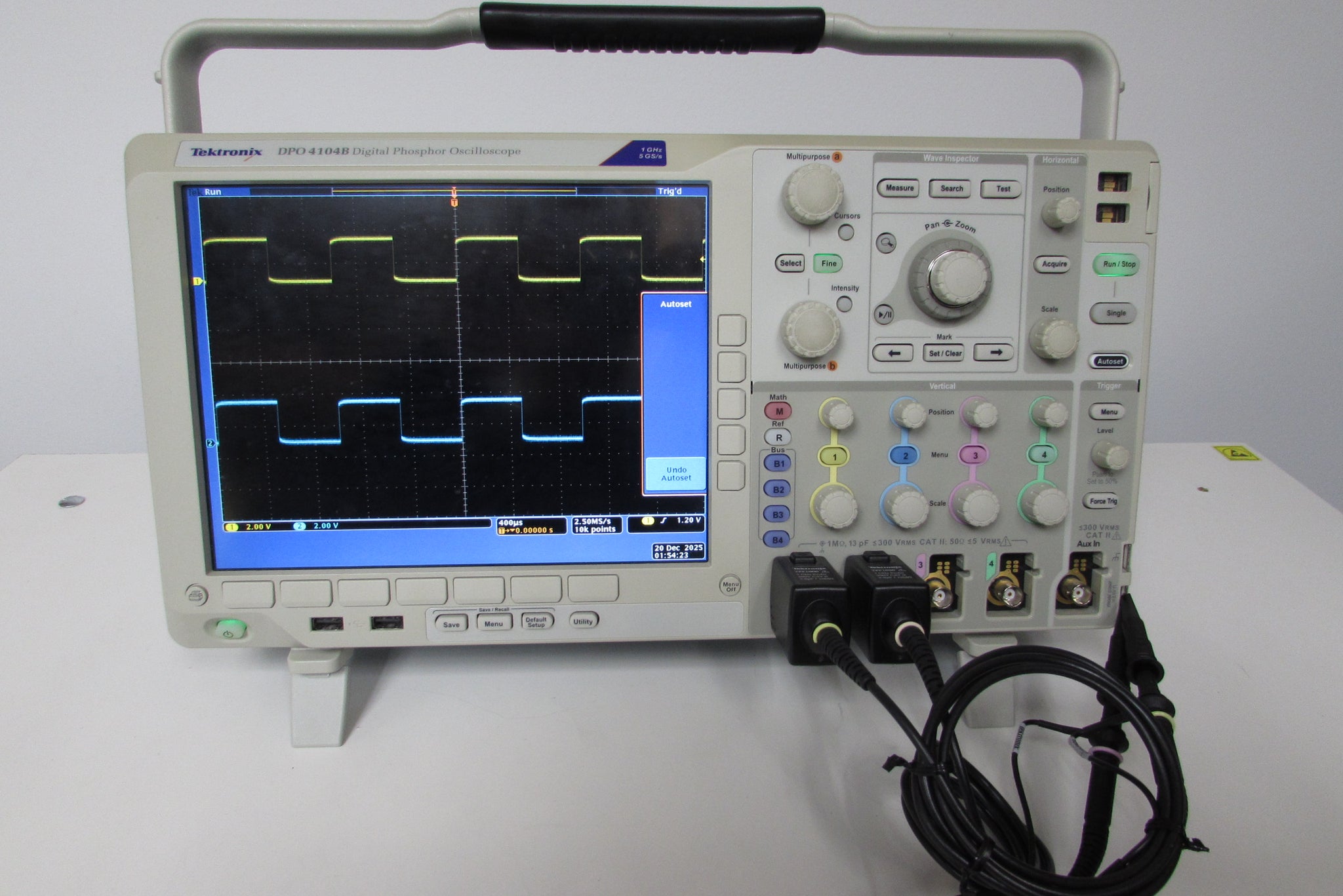

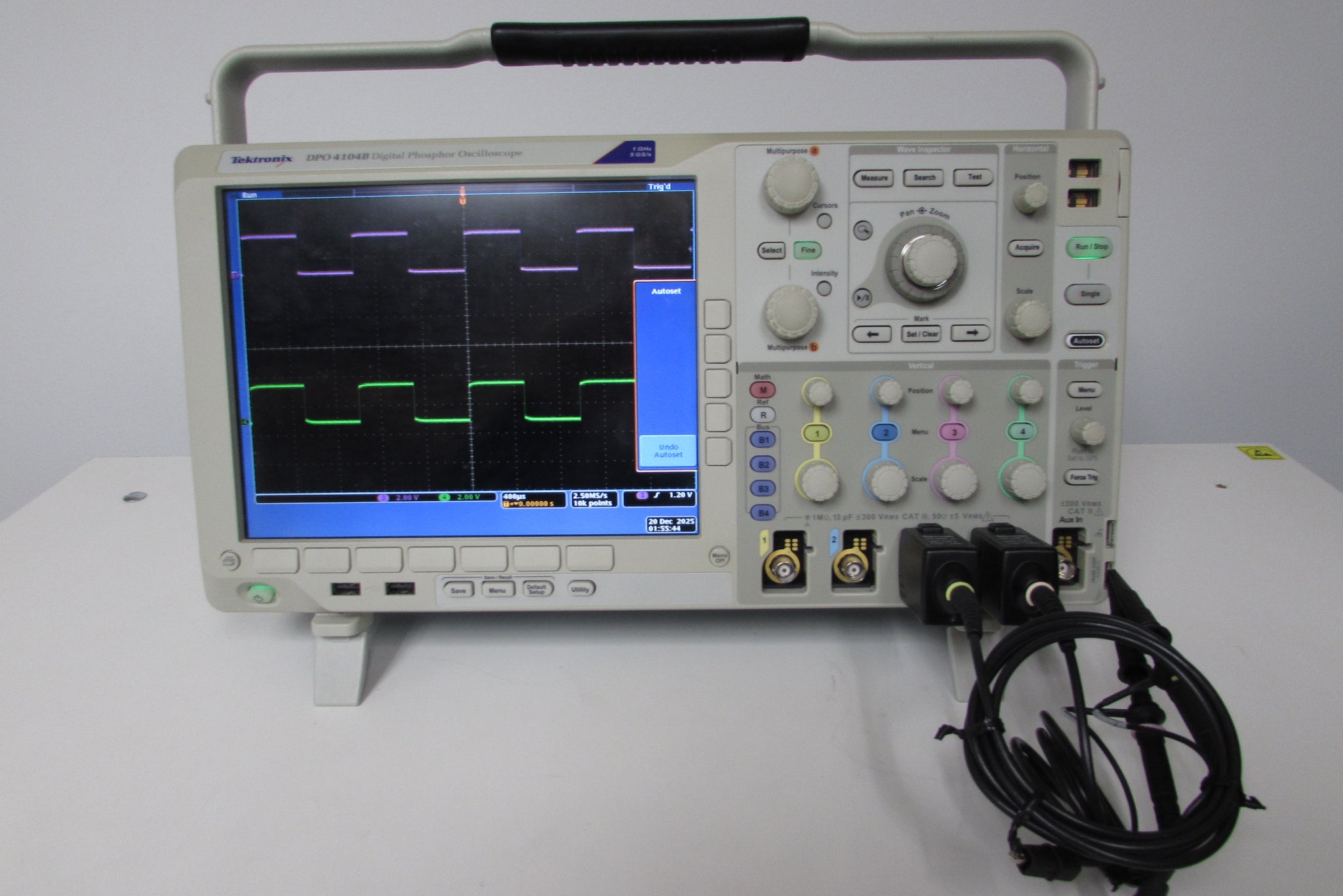

Tektronix DPO4104B Digital Phosphor Oscilloscope, 1GHz, 5Gs/s 4ch, TPP1000 Probes x2
Tektronix DPO4104B Digital Phosphor Oscilloscope, 1GHz, 5Gs/s 4ch, TPP1000 Probes x2

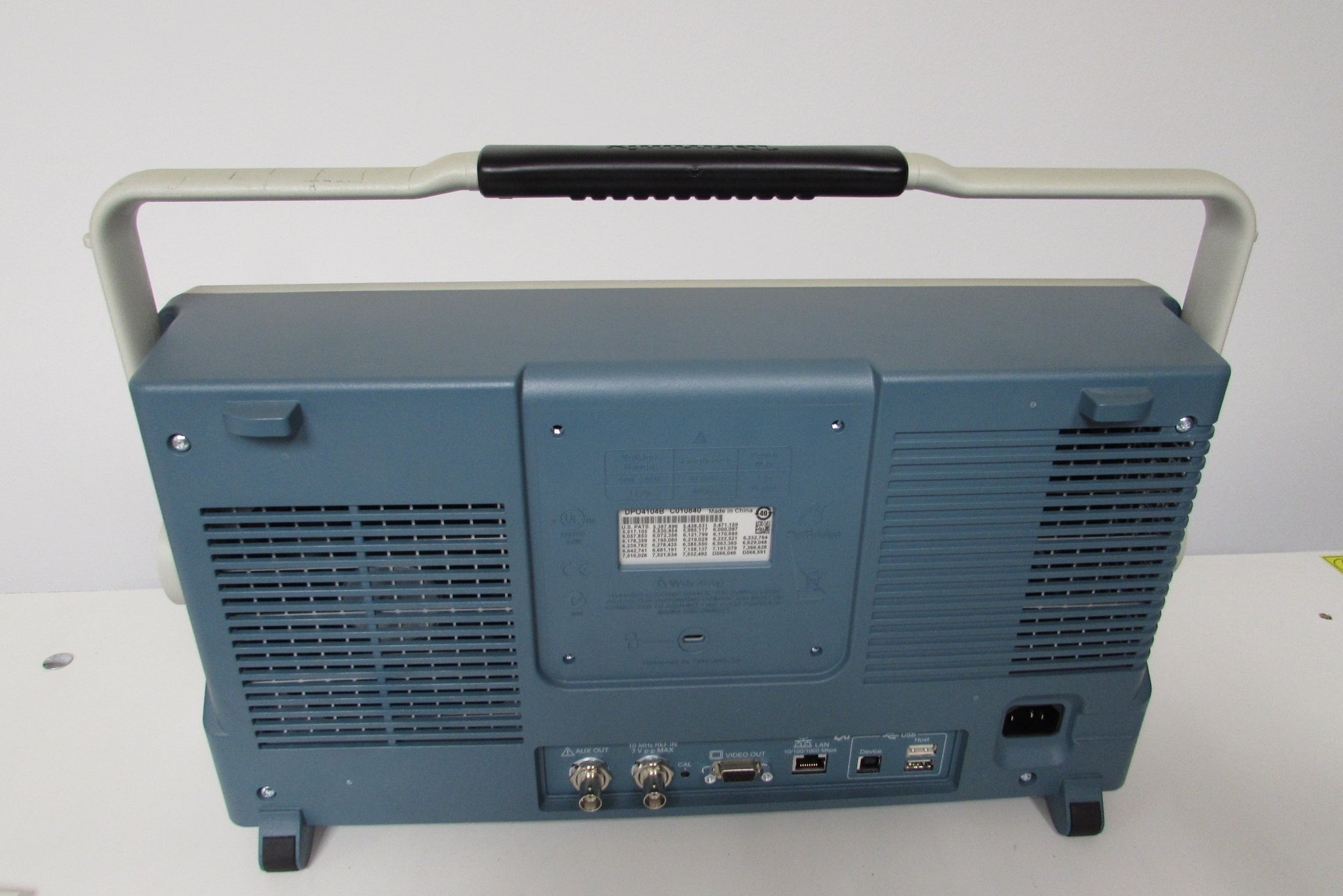

Product Overview
With the MSO/DPO4000B Mixed Signal Oscilloscope Series, you can analyze up to 20 analog and digital signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 1 GHz and up to 5X oversampling on all channels ensure you have the performance you need to see fast-changing signal details. To capture long windows of signal activity while maintaining fine timing resolution, the MSO/ DPO4000B Series offers deep record length of up to 20M points standard on all channels. And with Wave Inspector® controls for rapid waveform navigation, automated serial and parallel bus analysis, limit and mask testing, and automated power analysis – your Tektronix oscilloscope provides the feature-rich tools you need to simplify and speed debug of your complex design.
Additional Features:
- Bandwidth: 1 GHz
- Channels: 4
- Rise Time: 350 ps
- Sample Rate: 5 GS/s
- Record Length: 20M
- Input coupling: AC, DC
- Input impedance: 1 MΩ ±1%, 50 Ω ±1%
- Vertical resolution: 8 bits (11 bits with Hi Res)
- DC gain accuracy: ±1.5%, derated at 0.10%/°C above 30 °C
- Channel-to-channel isolation: Any two channels at equal vertical scale ≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated bandwidth
- Power consumption: 250W Maximum
- >340,000 wfm/s maximum waveform capture rate
- Suite of advanced triggers
- Wave Inspector® controls provide easy navigation and automated search of waveform data
- 42 automated measurements, and FFT analysis for simplified waveform analysis

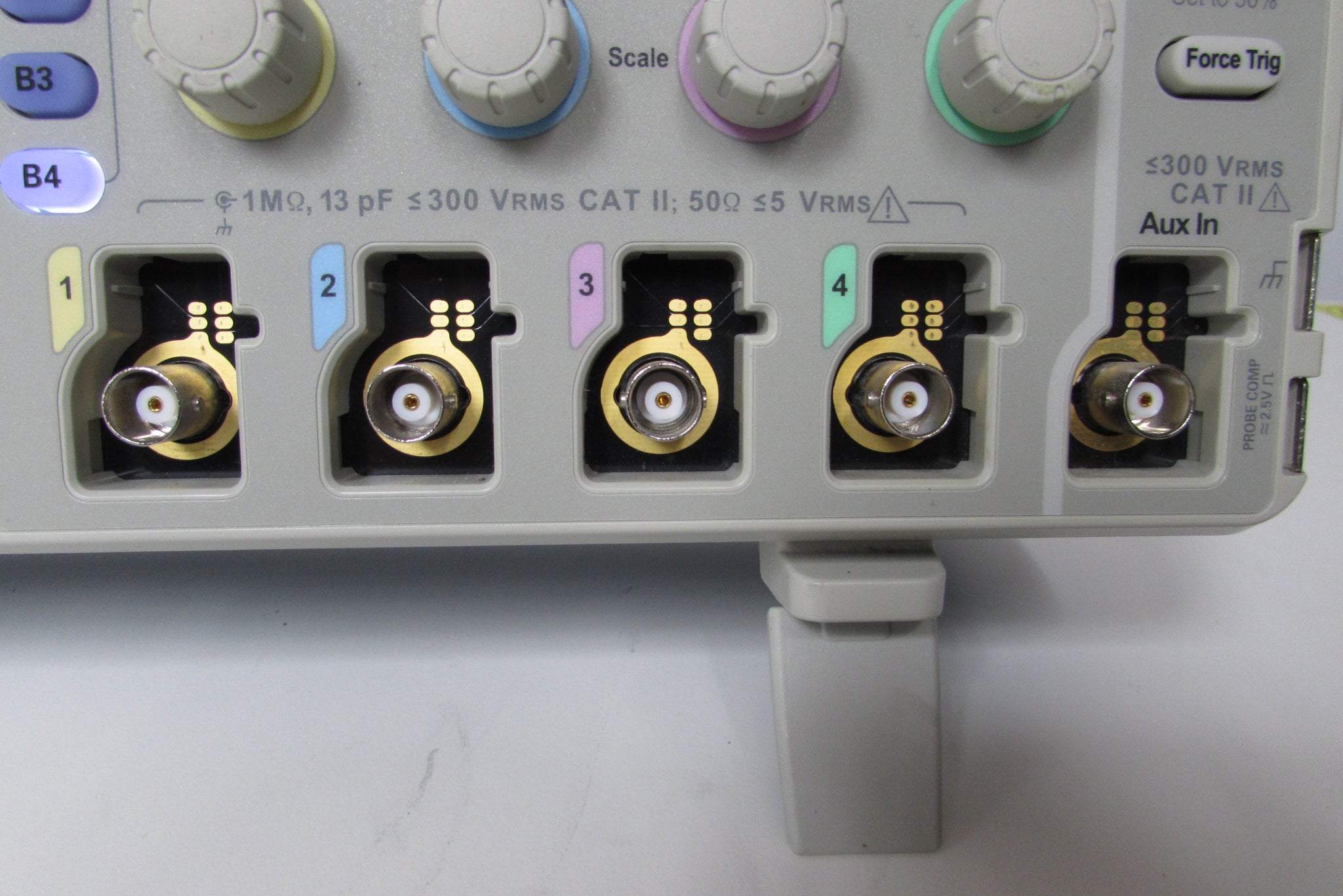

- TekVPI® probe interface supports active, differential, and current probes for automatic scaling and units

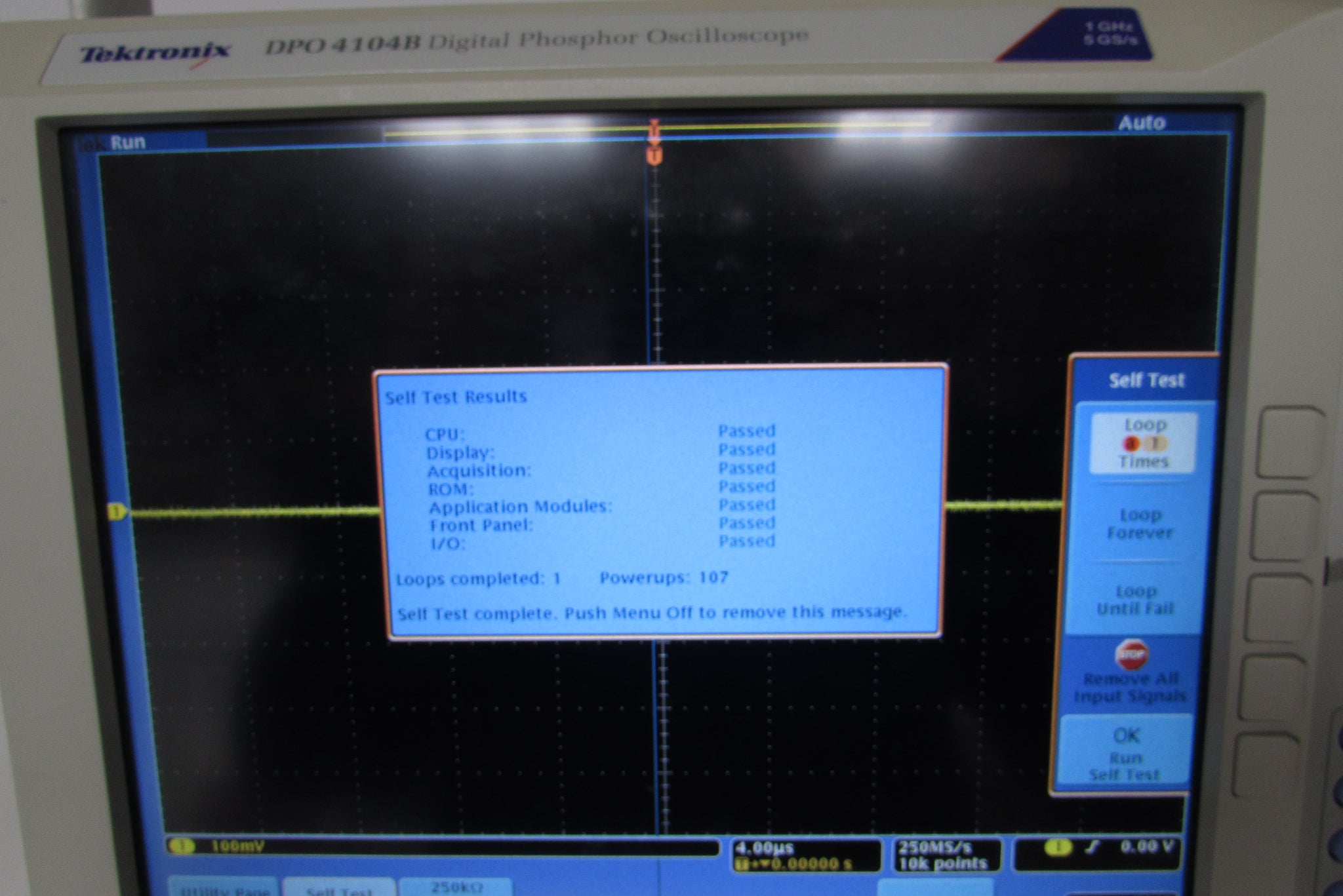

- 10.4 in. (264 mm) bright XGA color display
