Sorensen DCS55-55E DC Power Supply, 0-55V, 0-55A
Sorensen DCS55-55E DC Power Supply, 0-55V, 0-55A
Product Overview
The Sorensen DCS55-55E is a 3000 Watt DC Power Supply from Sorensen. Supplies DC Voltage and Current to test, design, and troubleshoot electric and electronic circuits. Applications include Burn In, QA, ATE, Research, Design, and Education to name a few.
- Voltage: 0-55V
- Current: 0-55A
- Power: 3000W
- Ripple and Noise: 20mV RMS

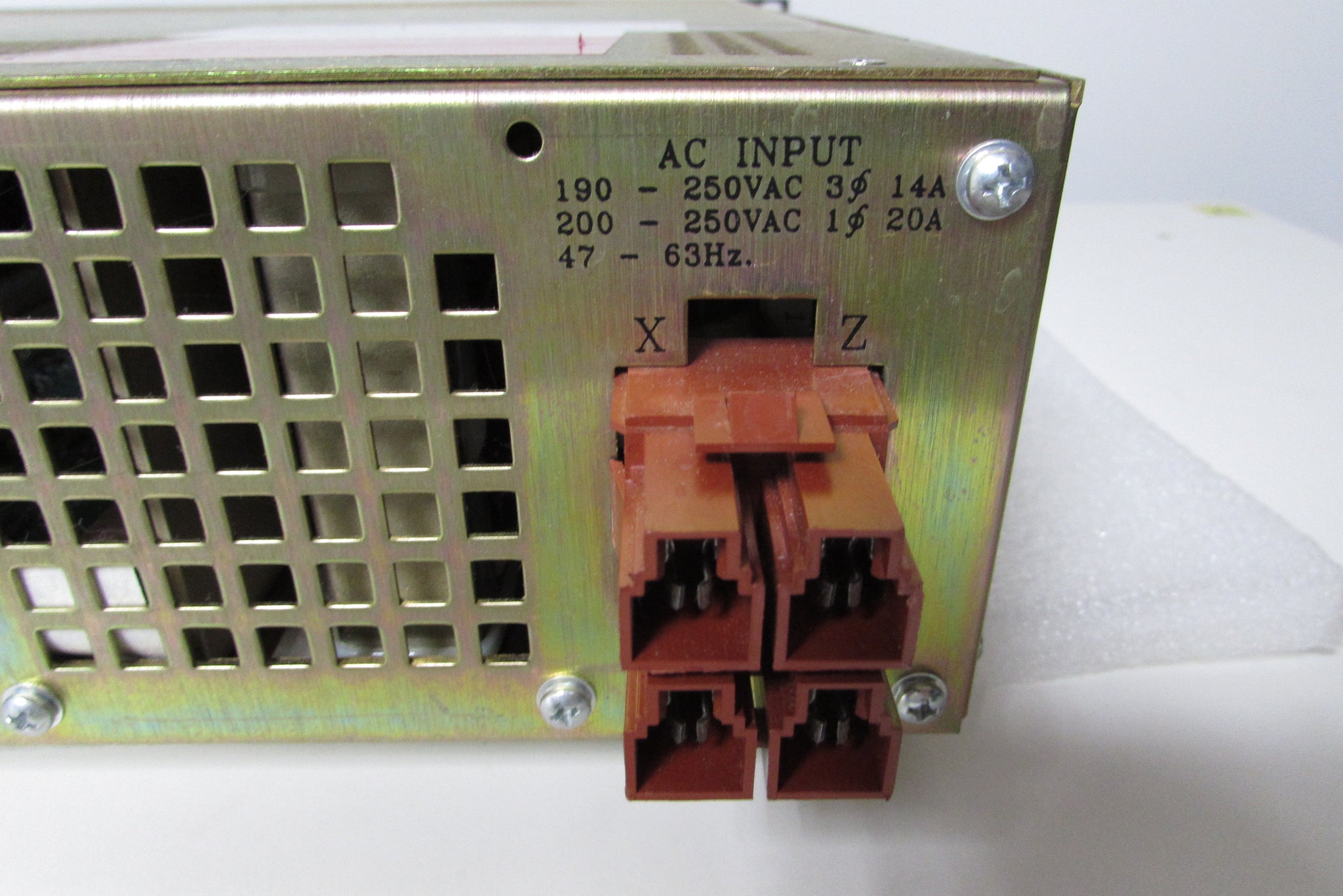

- 47-63 Hz Single or Three phase

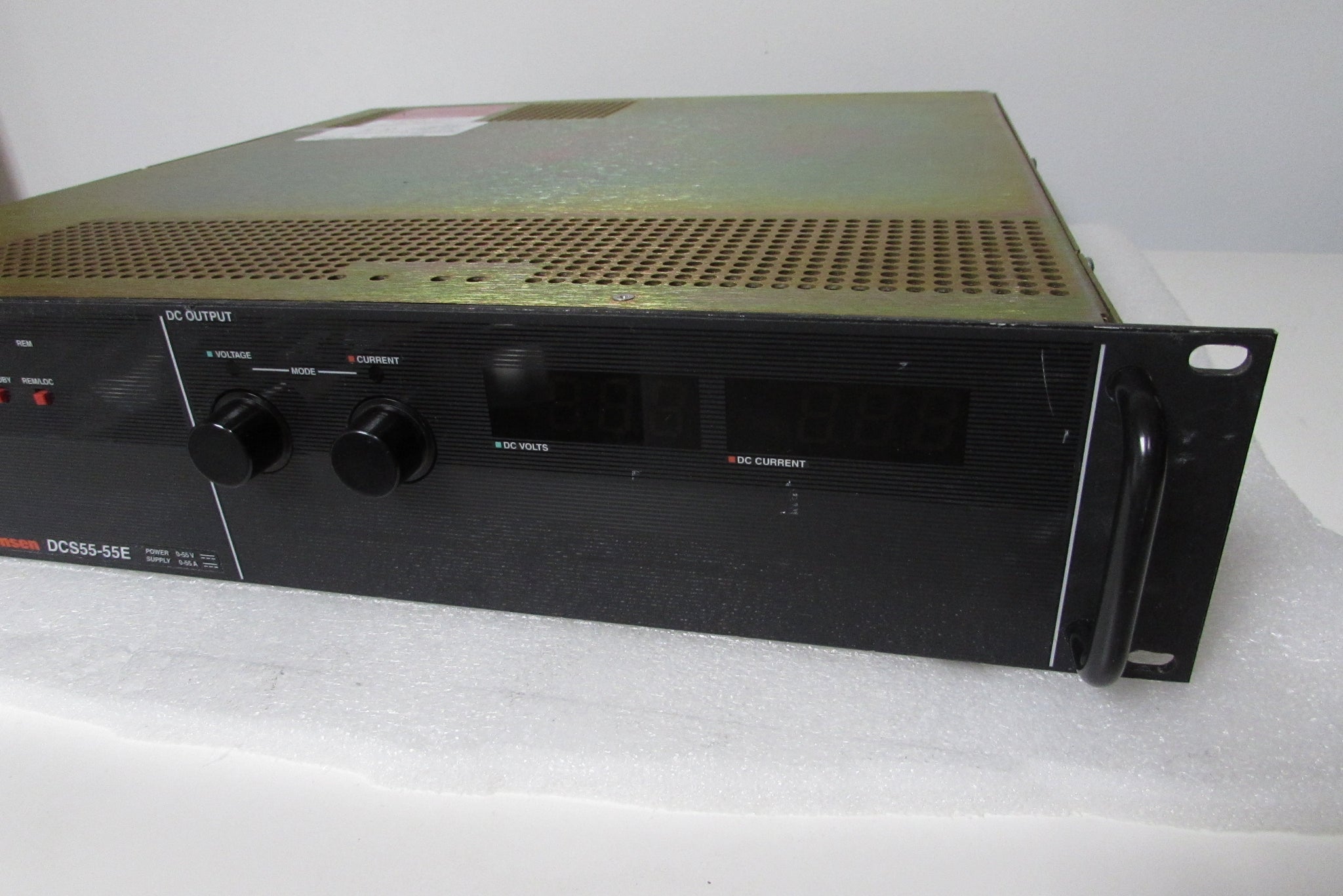

- Simultaneous digital display of both voltage and current
- Ten-turn potentiometer voltage and current controls permit high resolution setting of the output voltage and current from zero to the rated output
- Automatic mode crossover into current or voltage mode
- Flexible output configuration; multiple units can be connected in parallel or series to provide increased current or voltage
- Adjustable Over-Voltage Protection (OVP)
- External TTL, AC or DC shutdown
- Remote voltage, current limit and OVP programming with selectable programming constants
