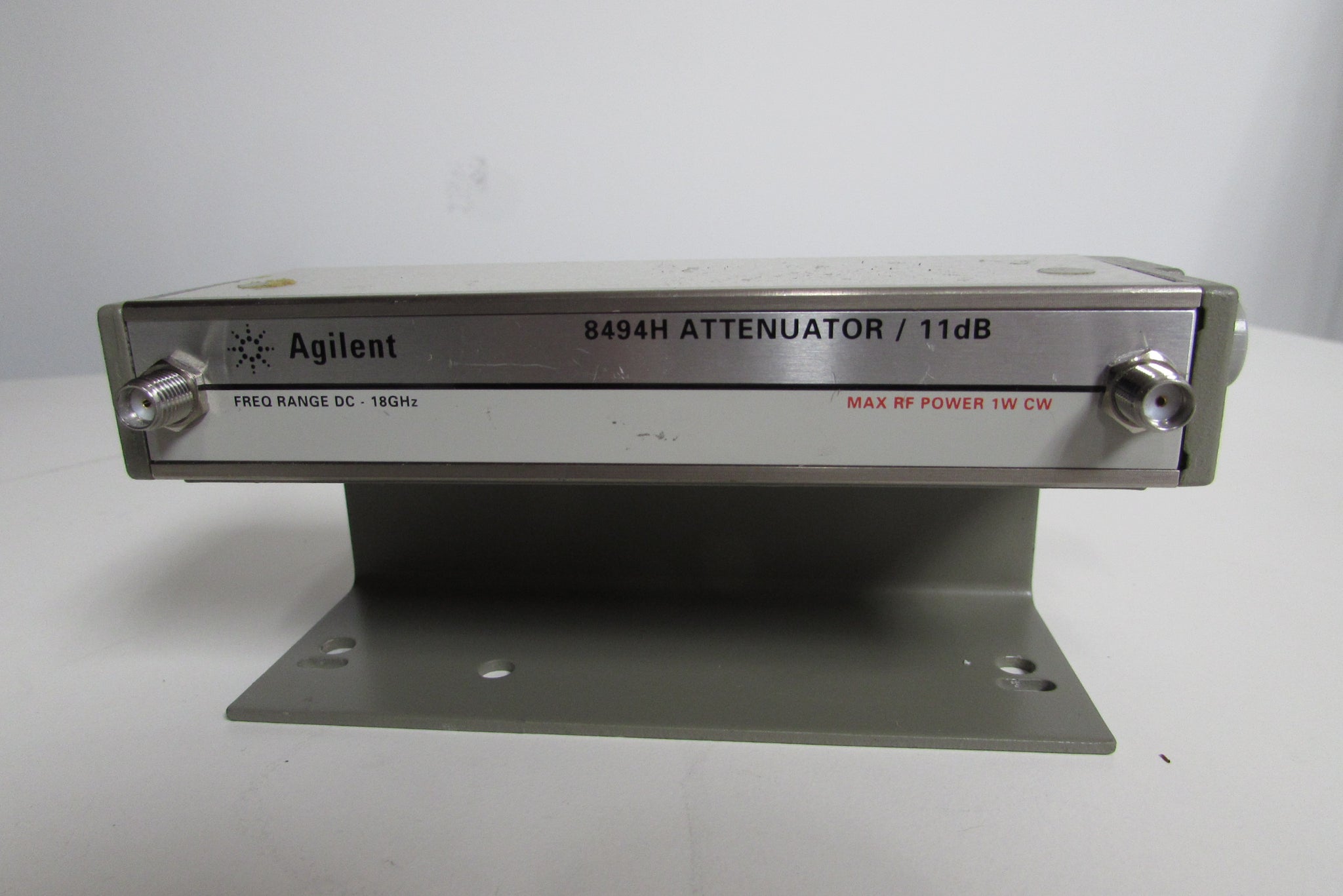

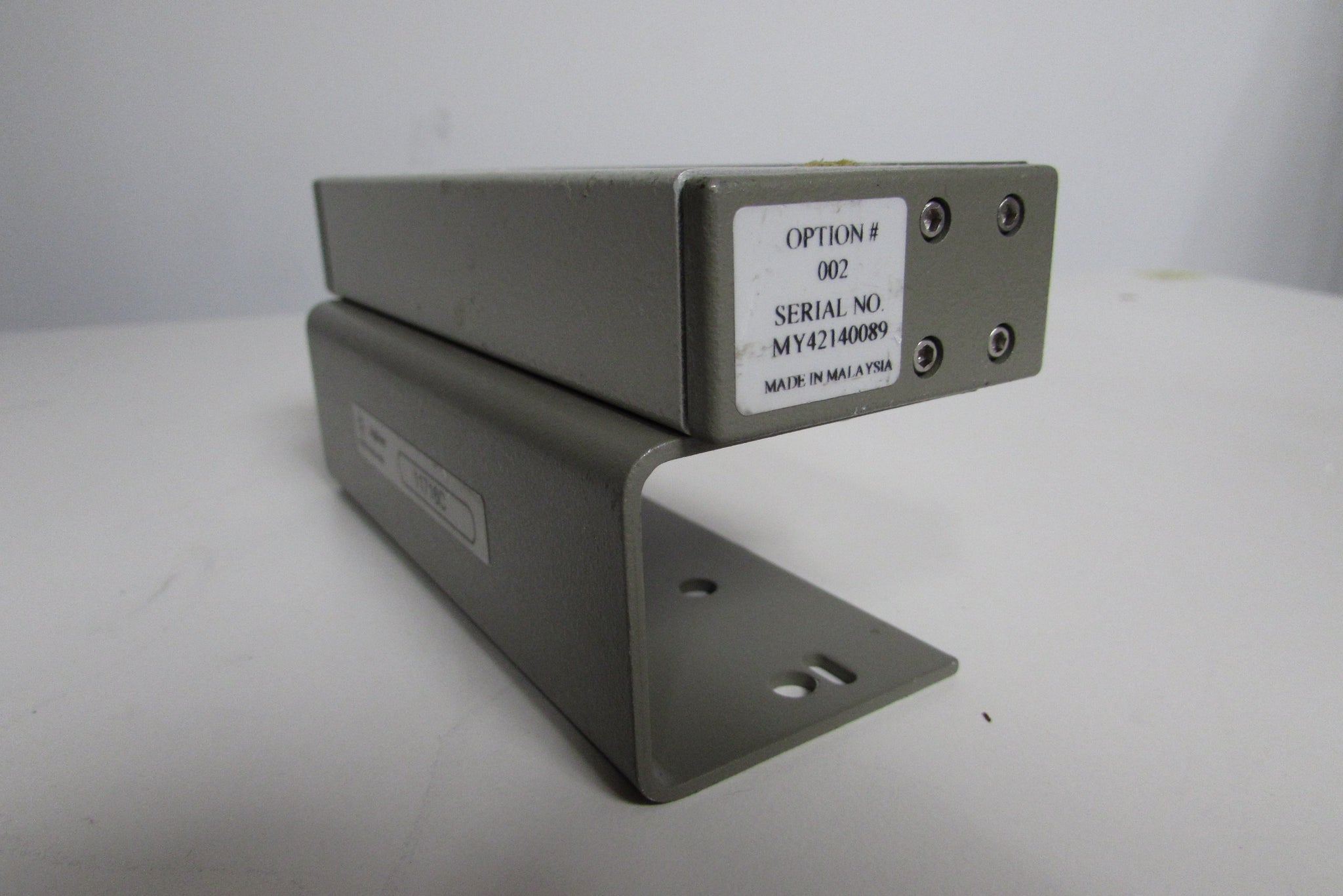

Agilent 8494H Attenuator 11 dB Freq Range DC-18GHz Opt 002 (SMA)
Agilent 8494H Attenuator 11 dB Freq Range DC-18GHz Opt 002 (SMA)
Product Overview
The Keysight 8494H dc to 18 GHz programmable step attenuator offers exceptional repeatability and reliability. It provides attenuation in 1-dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB).
Repeatability and life span
- Repeatability life: 0.03 dB max 5 million cycles per section, typical
- 5 million cycles per section
Power handling
- Maximum RF input power: 1 W (average), 100 W (peak)
Features:
- Connector type: choice of type-N female, SMA female, APC-7

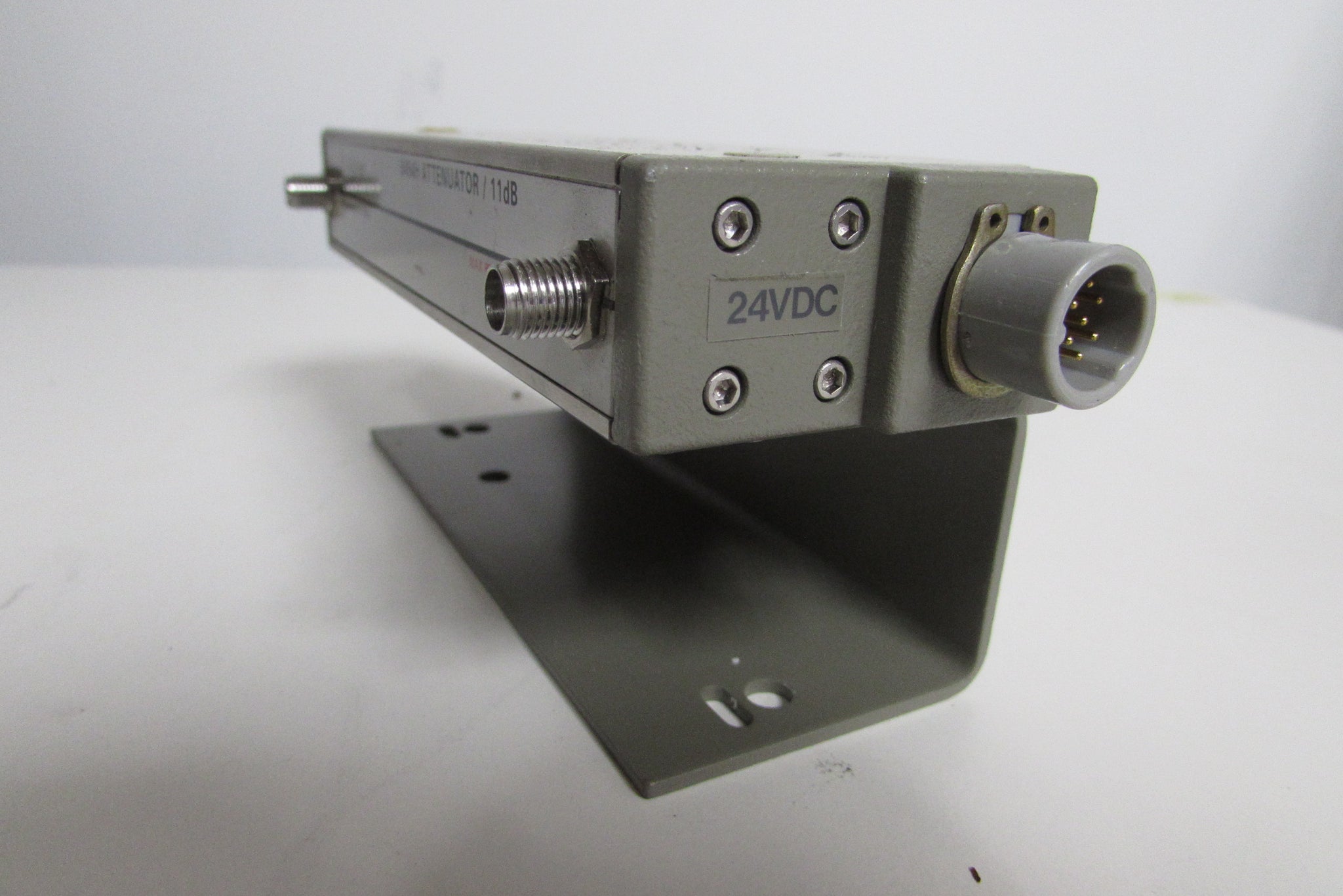

- Programming connector: 12-pin Viking, optional 14-pin DIP
- Superior RF performance
- Frequency range: dc to 18 GHz
- Insertion loss at 0 dB: 0.6 dB + 0.09 dB / GHz
- Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
