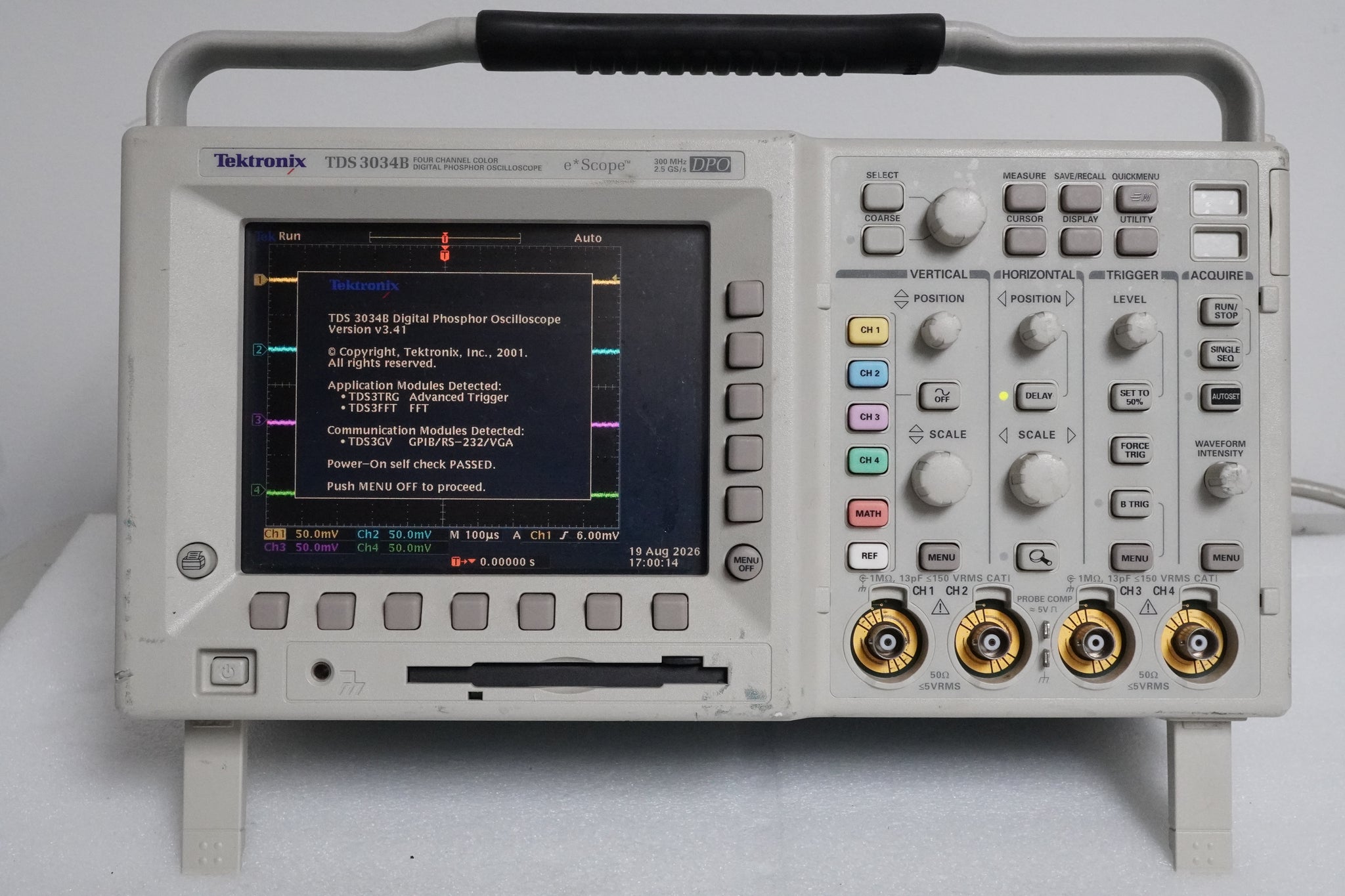

Tektronix TDS3034B Digital Storage Oscilloscope 300MHz, 2.5GS/s, 4ch w/ P6139A
Tektronix TDS3034B Digital Storage Oscilloscope 300MHz, 2.5GS/s, 4ch w/ P6139A
Product Overview
Product Overview
The Tektronix TDS3034B is a 300 MHz, 4 channel digital oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
Additional Features:
- Bandwidth: 300 MHz
- Channels: 4
- Sample Rate: 2.5GS/s
- Record Length: 10K points
- 3,600 wfms/s Continuous Waveform Capture Rate
- Full VGA Color LCD
- 25 Automatic Measurements
- FFT Standard
- Multi-language User Interface
- QuickMenu Graphical User Interface for Easy Operation
- WaveAlert™ Automatic Waveform Anomaly Detection
- Optional Internal Battery Operation up to 3 Hours
- Plug-in Printer for Portable Documentation of Results
- TekProbe™ Interface Supports Active, Differential and Current Probes for Automatic Scaling and Units
OpenChoice® Solutions Simplify Instrument Control, Documentation and Analysis
- e*Scope® Web-based Remote Control

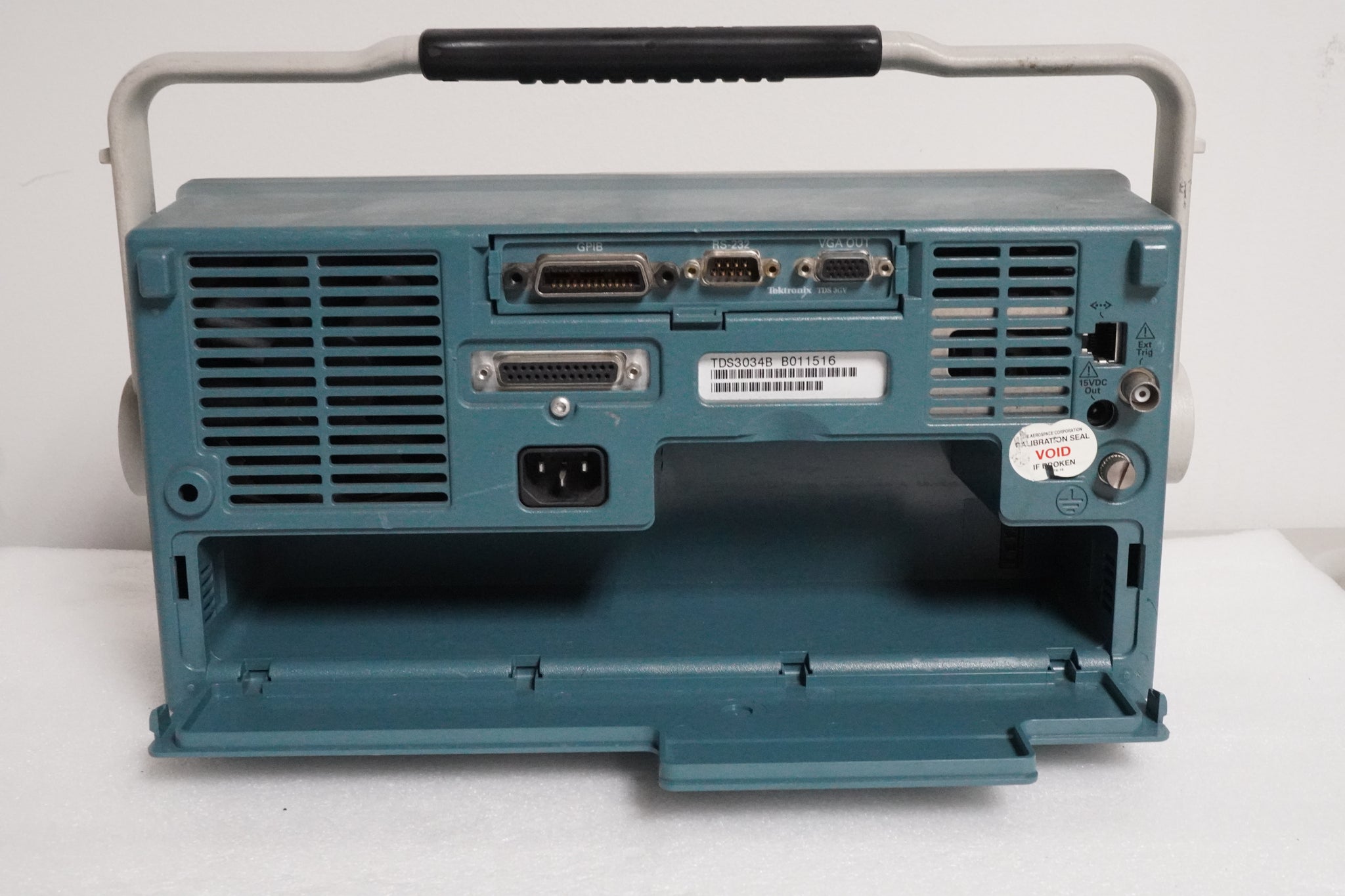

- Built-in Ethernet Port
- GPIB, RS232, VGA
- TDSPCS1 OpenChoice Software
- WaveStar™ Software
- Integration with Third-party Software
Application Modules for Specialized Analysis
- Advanced Analysis Module
- Limit Testing Module
- Telecommunications Mask Testing Module
- Extended Video Module
- 601 Serial Digital Video Module
Applications:
- Digital Design and Debug and Test
- Video Installation and Service
- Power Supply Design
- Education and Training
- Telecommunications Mask Testing
- Manufacturing test
