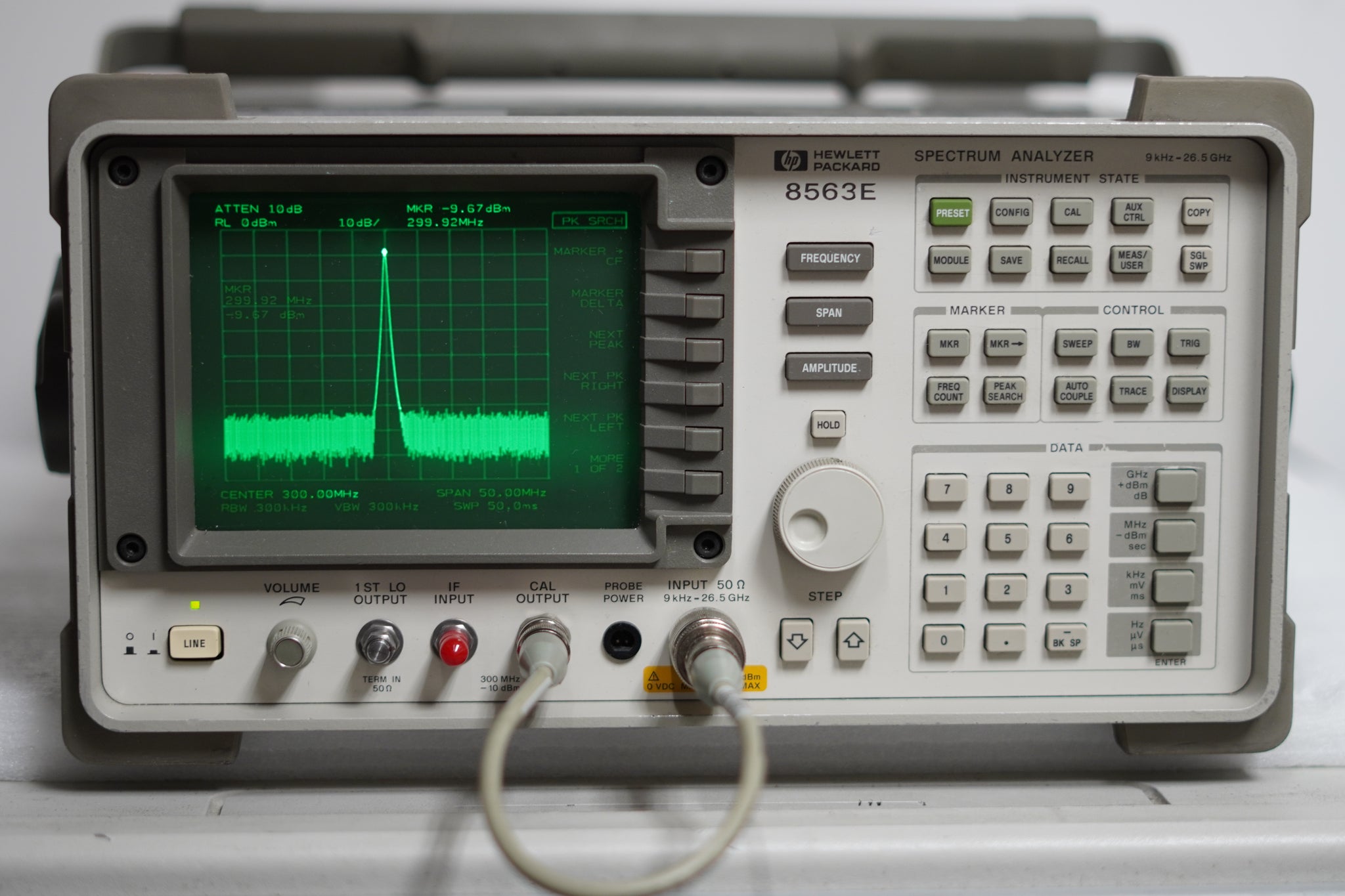

Agilent 8563E Spectrum Analyzer, 30Hz to 26.5GHz, No option

Agilent 8563E Spectrum Analyzer, 30Hz to 26.5GHz, No option

Product Overview

The Agilent 8563E portable microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 9 kHz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.

The 8563E combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions.

Using the Agilent 11974 series millimeter mixers, preselected coverage reaches 75 GHz, and with other mixers, un-preselected coverage can be extended higher.

The units meet all MIL-T-28800 requirements, including those for temperature, pulse shock, and transit drop. The analyzer fully meets specifications at temperatures from - 10 degrees to + 55 degrees Celsius and they can withstand 30 g's of shock.

These spectrum analyzers are optimized for high-performance measurement applications. Key specifications include Phase noise of -113 dBc/Hz at 10 kHz offset from the carrier, 100 db of third order dynamic range, -144 dBm sensitivity at 1 GHz, in a 1 Hz RBW. An image enhanced harmonic mixer extends excellent performance into the microwave frequencies in the HP 8563E.

Additional Features:

• Continuous 30 Hz to 26.5 GHz sweep
• Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
• Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
• Precision timebase and 1 Hz counter resolution
• MIL-T-28800 rugged
• Measurement personalities for digital radio and phase noise measurement
• Internal Mixing: 30 Hz to 26.5 GHz
• External Mixing: 18 GHz to 325 GHz

Options:
