Agilent 34972A Data Acquisition Switch Unit w/ DMM, include a fresh CALIBRATION

  • $1,695.00
    Unit price per
Shipping calculated at checkout.

Only 1 left!

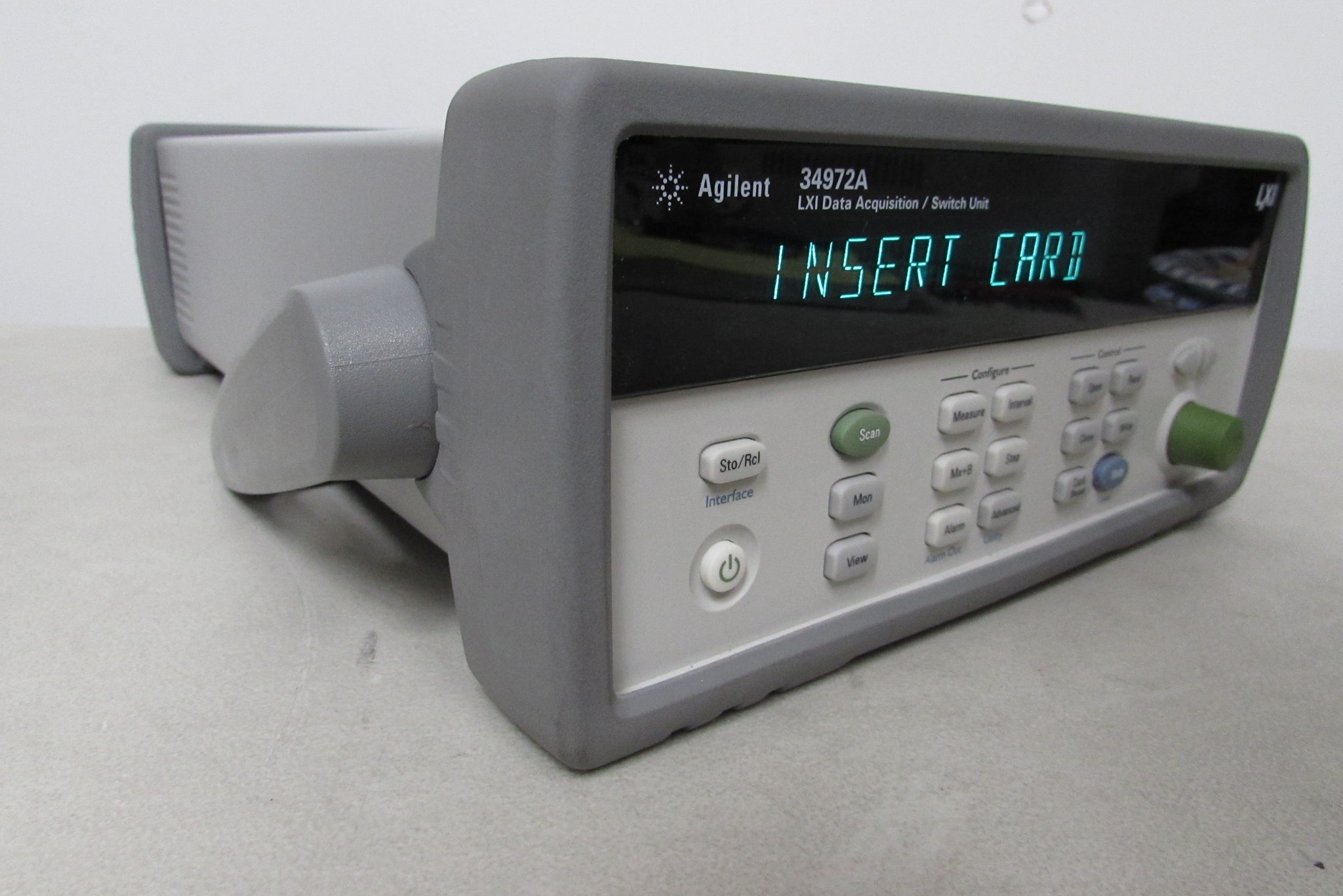

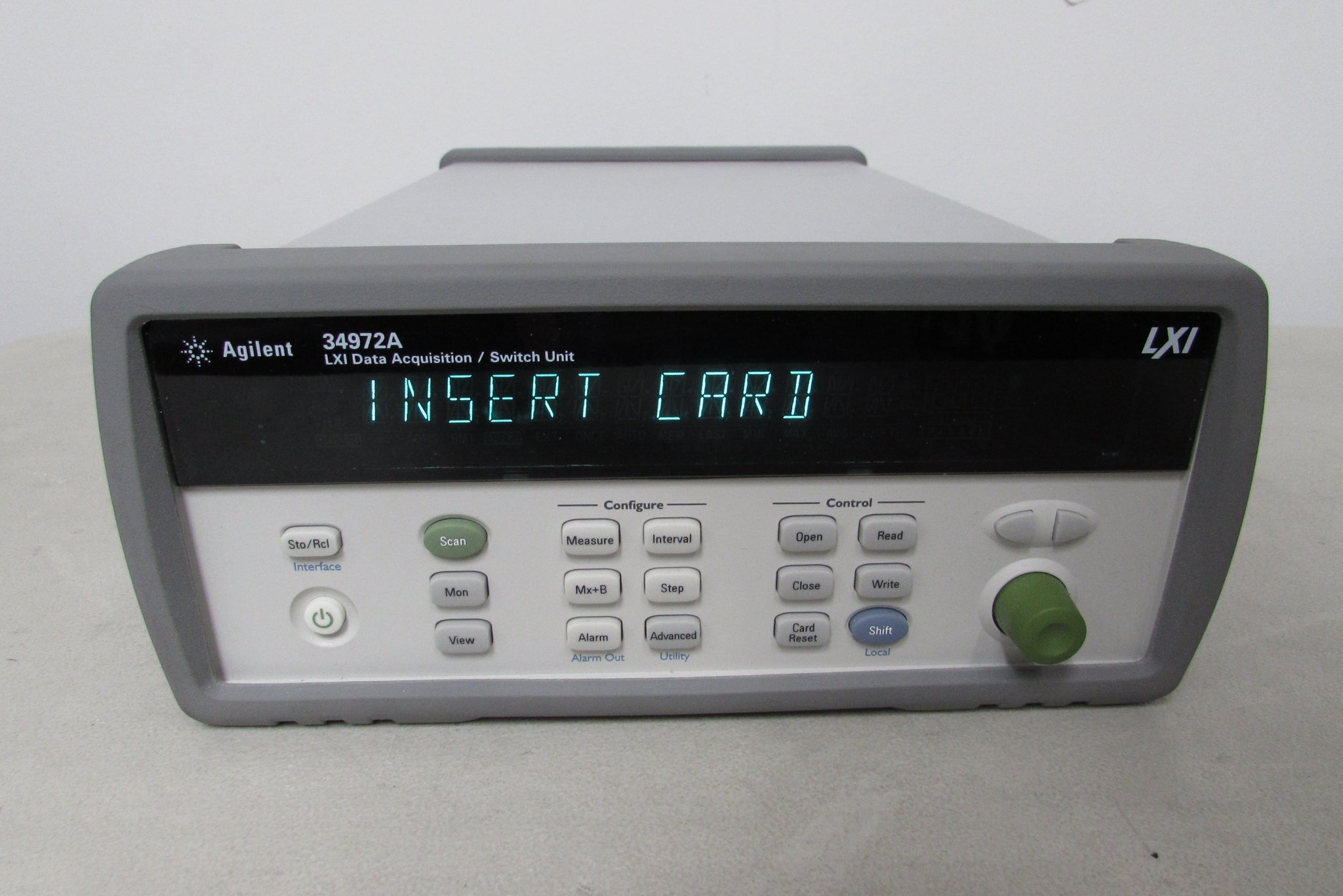

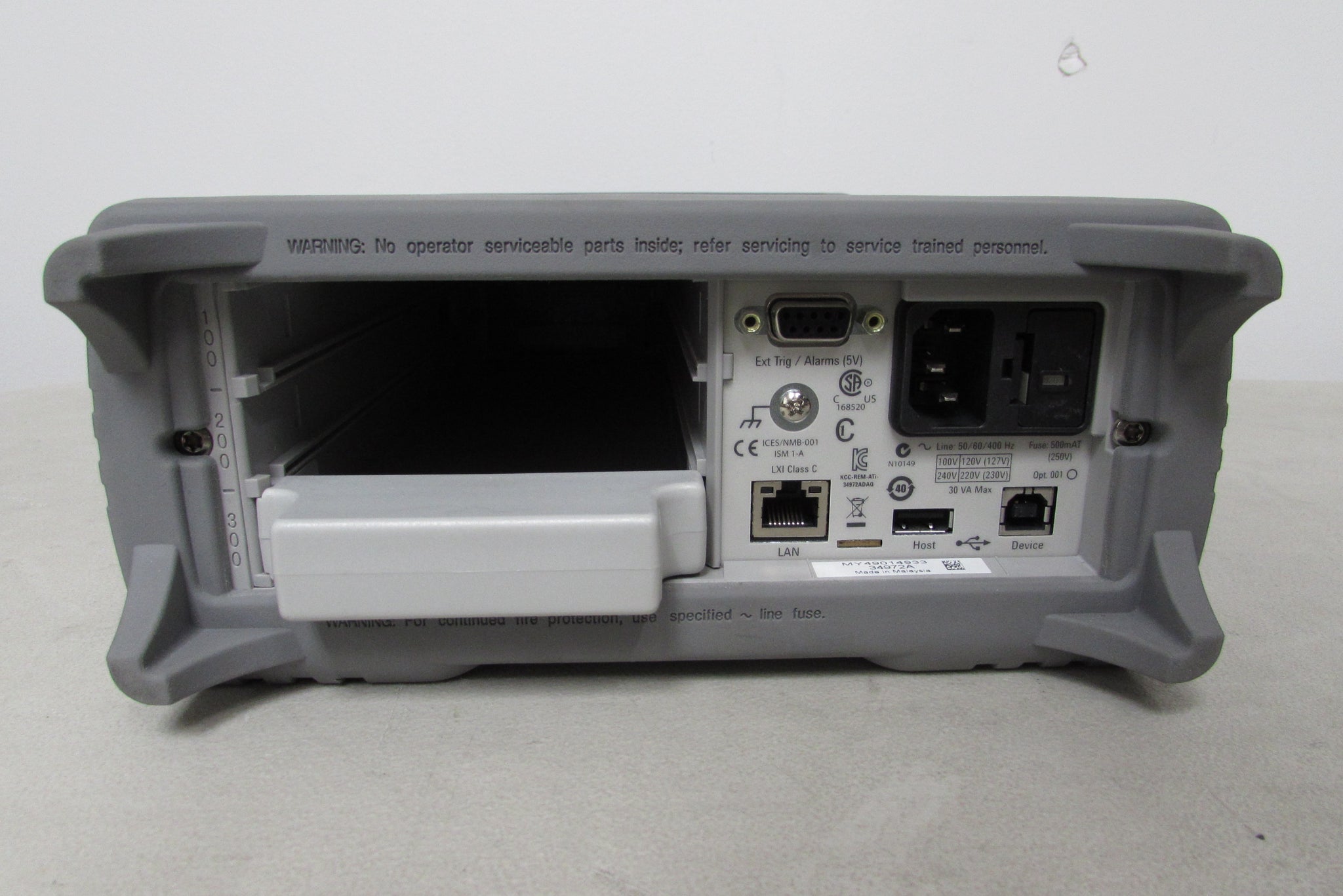

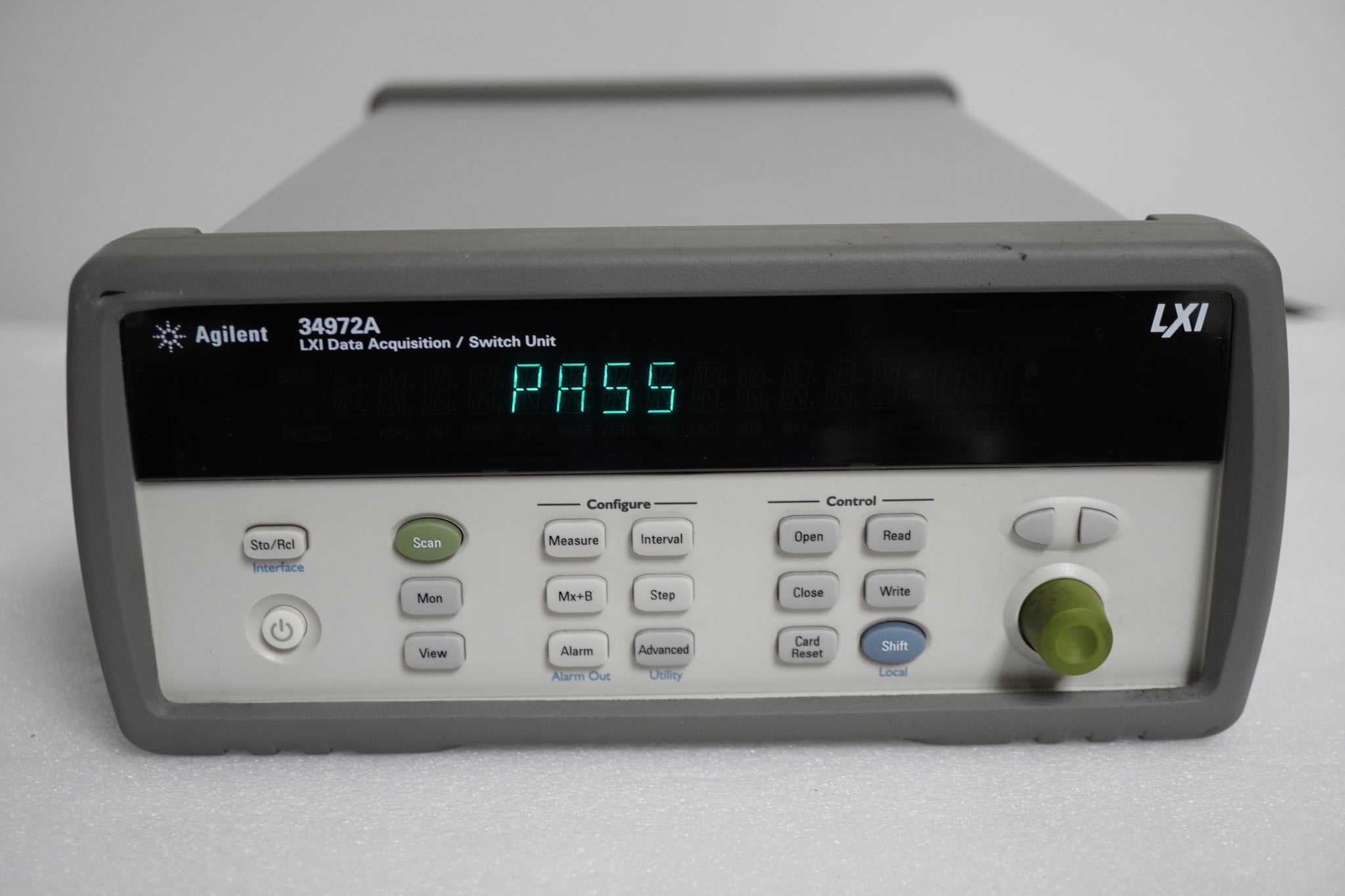

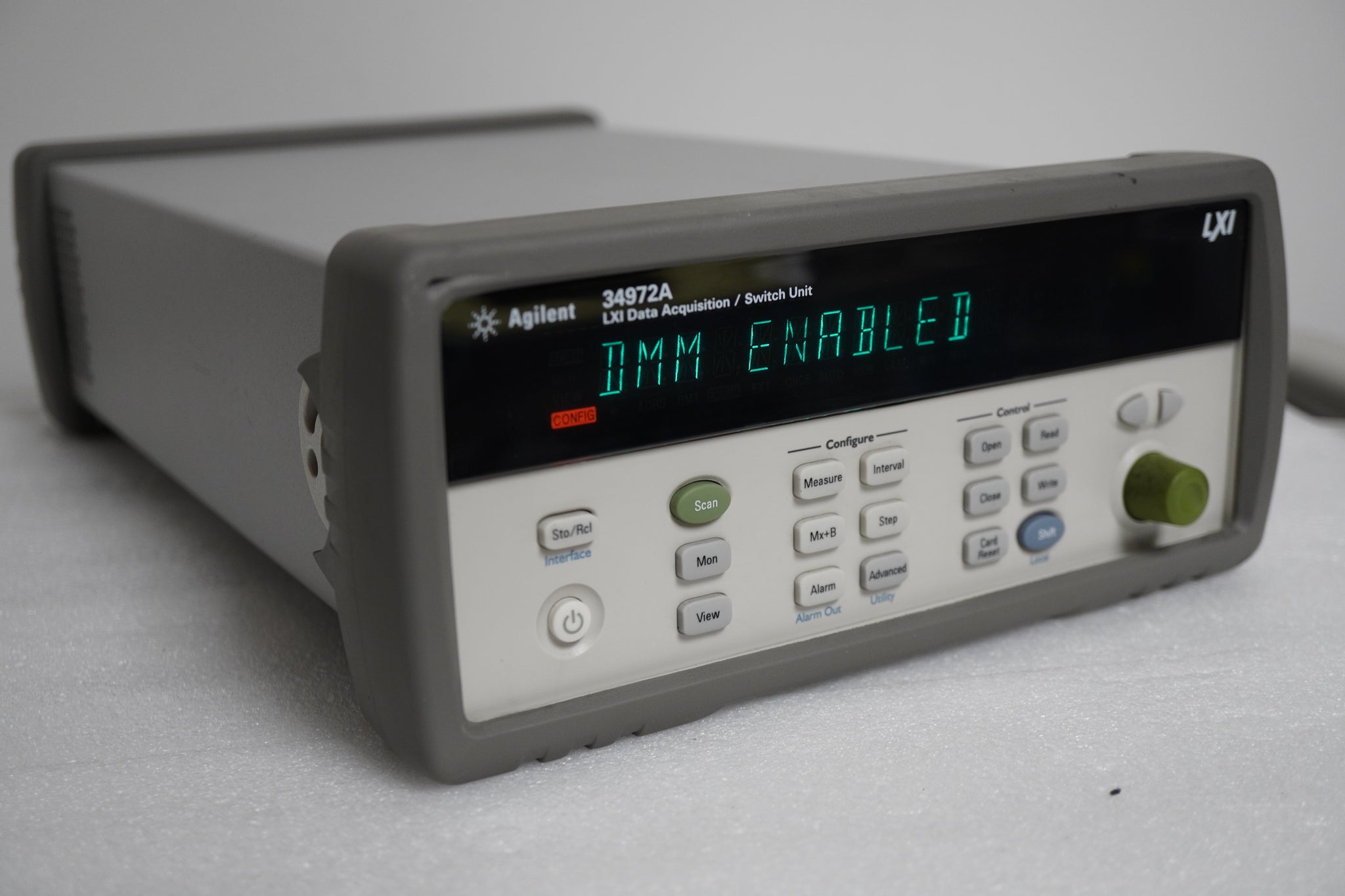

Keysight Agilent 34972A Data Acquisition Switch Unit w/ DMM
-NIST Traceable calibration certificate w/ data report.
-Power cable

Product Overview

The Agilent 34972A is a Data Logger from Agilent. Data loggers, or data recorders, collect information over time for a variety of purposes. A data logger uses internal memory and sensors to gather and document information on a 24-hour basis. Receive an accurate and comprehensive picture of the environmental conditions you’re monitoring as the device logs this information around the clock. Use data logging to measure temperature, humidity, wind speed, solar radiation, soil moisture levels, road traffic, tank levels, and a number of other elements.

Additional Features:

  • 3-slot LXI data acquisition unit with 6 ½-digit DMM (22-bit) and 8 plug-in modules to choose from (sold separtely)
  • Measures 11 different input signals (without external signal conditioning) including temperature with thermocouples, RTDs and thermistors; DC/AC volts or current; 2- or 4-wire resistance; frequency and period
  • From 1 to 120 channels of analog input
  • 6½ digits (22 bits) of resolution with 0.004% basic 1-year dcV accuracy
  • 50 k reading nonvolatile memory including timestamp
  • Scaling and alarms available on each channel
  • Full-featured front panel for stand-alone configuration, troubleshooting, and data viewing
  • Intuitive front panel with task-oriented, self-guiding menus
  • Monitor display lets you keep an eye on tests in progress
  • Scaling function for converting raw inputs into user-defined units
  • 50 k Nonvolatile storage for five complete instrument states when power is removed
  • Battery backed real-time clock for pacing scans and time stamping readings
  • Accepts all Keysight Agilent HP 34970A switch and control plug-in modules, and is backward compatible with the Keysight Agilent HP 34970A SCPI command set
  • 1Gbit LAN and USB 2.0 for easy connectivity to the PC
  • USB memory port for data storage or transfer
  • Graphical Web interface for easy setup and control
  • Free BenchLink data logger software to create tests without programming
