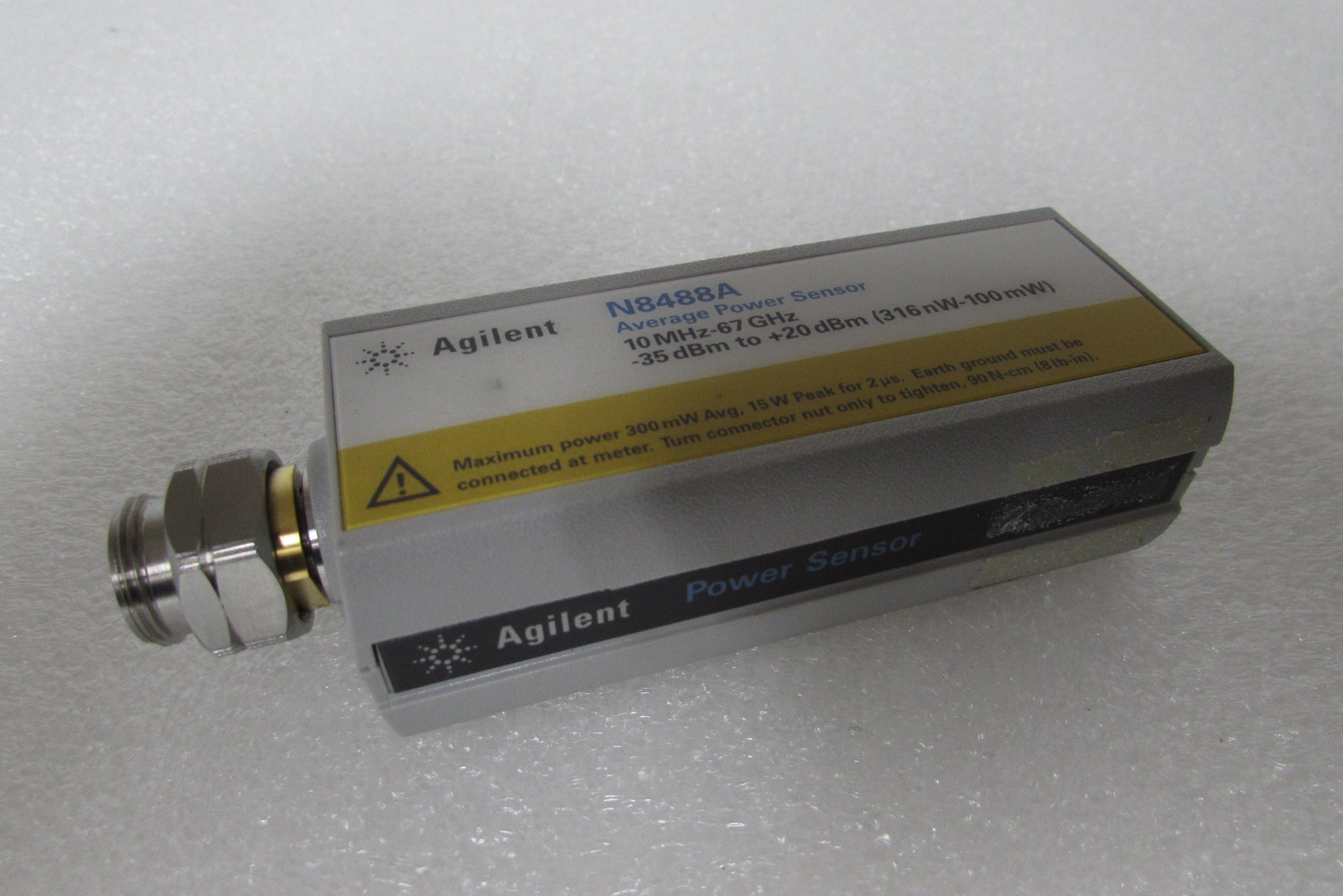

Agilent N8488A Thermocouple Power Sensors; 10MHz to 67GHz
Agilent N8488A Thermocouple Power Sensors; 10MHz to 67GHz
Product Overview
The 8480 Series power sensor is well recognized as an industry standard for power measurements. It has been available to the industry for over 30 years and is widely used in design, manufacturing, or metrology applications for continuous wave (CW) or complex modulated signals.
Keysight is introducing the N8480 Series power sensors, a new thermocouple power sensors as a replacement for the 8480 Series power sensors (excluding the D-model sensors). It is enhanced with a few key features such as built-in EEPROM, extended dynamic range, wider frequency range, and - most important - better accuracy and repeatability.
Features:
- EEPROM to store cal factors eliminates manual entry
- Wide frequency range from 10 MHz to 67 GHz (Not warranted spec from 67 to 70 GHz)
- Wide dynamic range from -35 to +20 dBm
- Best-in-class power linearity of less than 1%, excellent SWR of mismatch uncertainty and highly accurate power repeatability
- Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
- SCPI codes compatibility
- Compatible with EPM (N1913/14A, E4418/19B), EPM-P (E4416/17A), P-Series (N1911/12A) power meters
