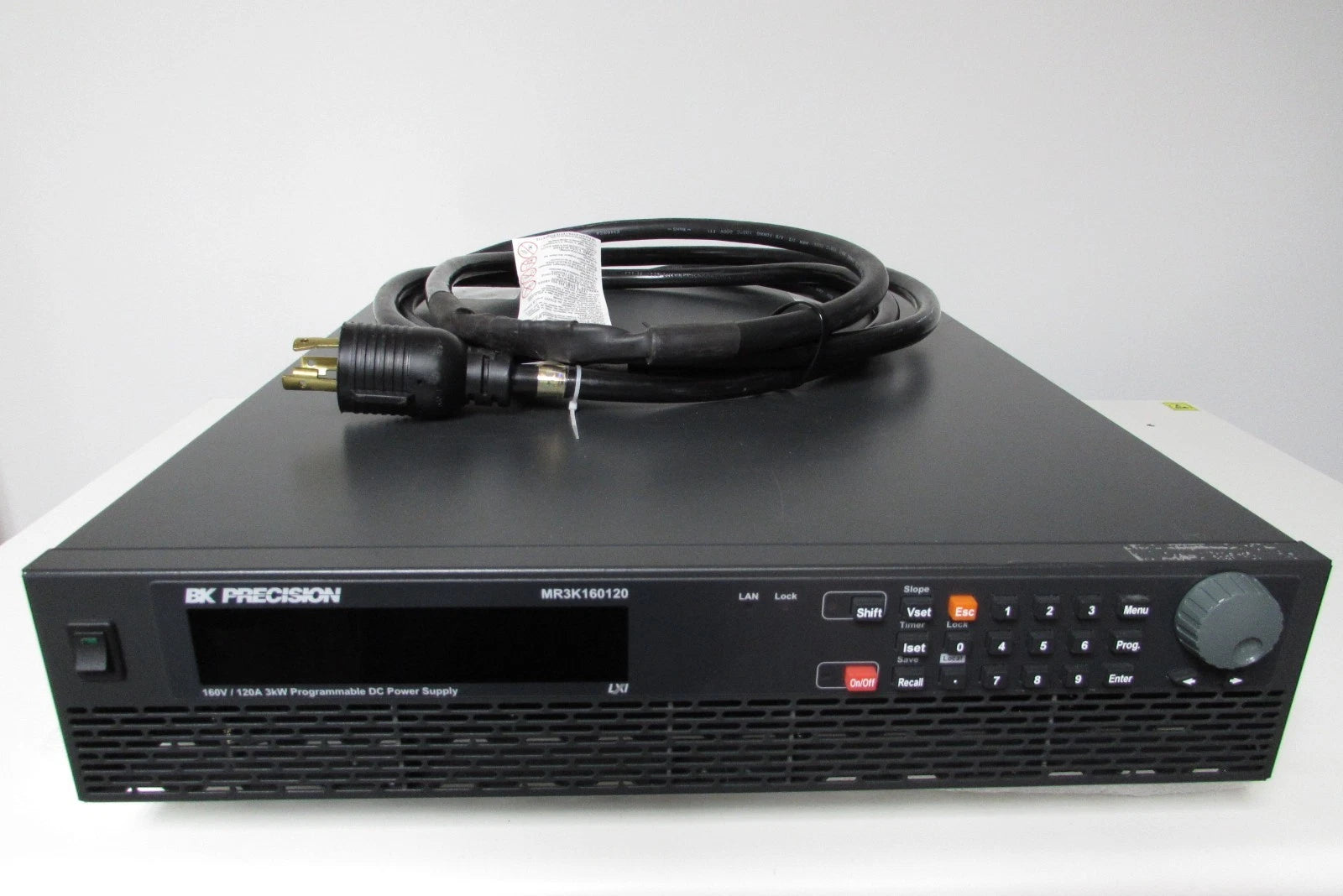

BK Precision MR3K160120 Programmable DC Power Supply 160V 120A 3kW
BK Precision MR3K160120 Programmable DC Power Supply 160V 120A 3kW
Product Overview
MR3K160120 High Voltage Multi-Range MR Series DC Power Supplies
The MR Series high voltage multi-range DC power supplies deliver up to 5 kW of clean output power in a compact 2U form factor. These power supplies are suited for bench use and automated test system applications requiring a wide range of voltage/current. For benchtop applications, this series offers an intuitive user interface for list mode programming and slew rate adjustments directly from the front panel. System integrators benefit from fast command response times, excellent regulation, and low noise characteristics. This series supports USB, GPIB, LXI compliant LAN, and analog interfaces for remote control and programming. The provided LabVIEWTM, IVI-C, and IVI.NET drivers further simplify system development.
The built-in SAS (solar array simulator) function enables users to generate PV (photovoltaic) I-V curves for testing solar inverters. Optional SAS software is available for simulating the I-V curve of different arrays under various weather and irradiance conditions.
Features and Benefits:
MR3K160120
Output Voltage 0-160V
Output Current 0-120A
3kW Maximum Output Power
Multi-ranging operation, capable of replacing multiple fixed range power supplies
Compact 2U form factor
Standard USB (USBTMC-compliant), RS232, GPIB and LXI compliant LAN interfaces
Galvanically isolated analog control and monitoring interface
Protection features: OVP, OCP, OPP, OTP, foldback protection mode, and key-lock function
Adjustable voltage and current slope (rise and fall time)
List mode: 10 user-defined setups with up to 100 programmable steps each
LED mode to minimize inrush current and protect LED panels
Built-in SAS function for storage of up to 101 I-V curves with Voc, Isc, Vmp, Imp, parameters and 4096-point table
Remote Sense to compensate for voltage drop
Master/Slave mode operation provides up to 50 kW with 10 units connected in parallel
Control up to 50 power supplies from one PC
Soft panel software for remote control, test sequence generation, and data logging included
cTUVus certification mark fulfills CSA and UL safety standards
The MR Series high voltage multi-range DC power supplies deliver up to 5 kW of clean output power in a compact 2U form factor. These power supplies are suited for both bench use and automated test system applications requiring a wide range of voltage and current. For benchtop applications, this series offers an intuitive user interface for list mode programming and slew rate adjustments directly from the front panel. Operating software is provided for test sequence generation and data logging without the need to write source code.
Integrators will benefit from fast command response times, excellent regulation, and low noise characteristics. In addition, this series supports USB, GPIB, LXI compliant LAN, and analog interfaces for remote control and programming. Up to 50 power supplies can be daisy-chained and controlled from one PC, or connect multiple power supplies in parallel for increased output power.
The MR Series includes a built-in SAS (solar array simulator) function to generate I-V curves from the front panel. The optional SAS software allows users to simulate various weather conditions and consistently reproduce I-V curves while monitoring MPPT efficiency data.
