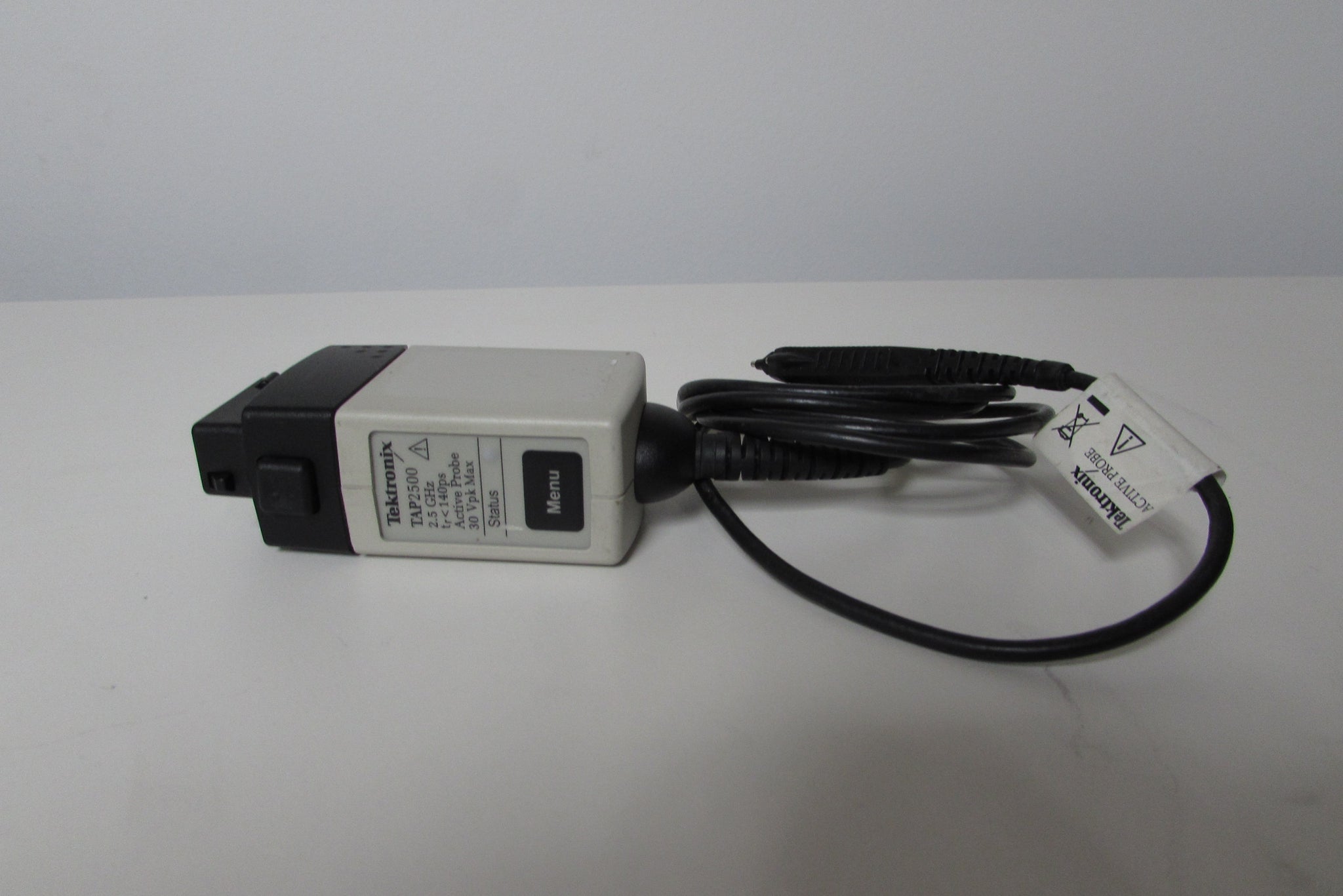

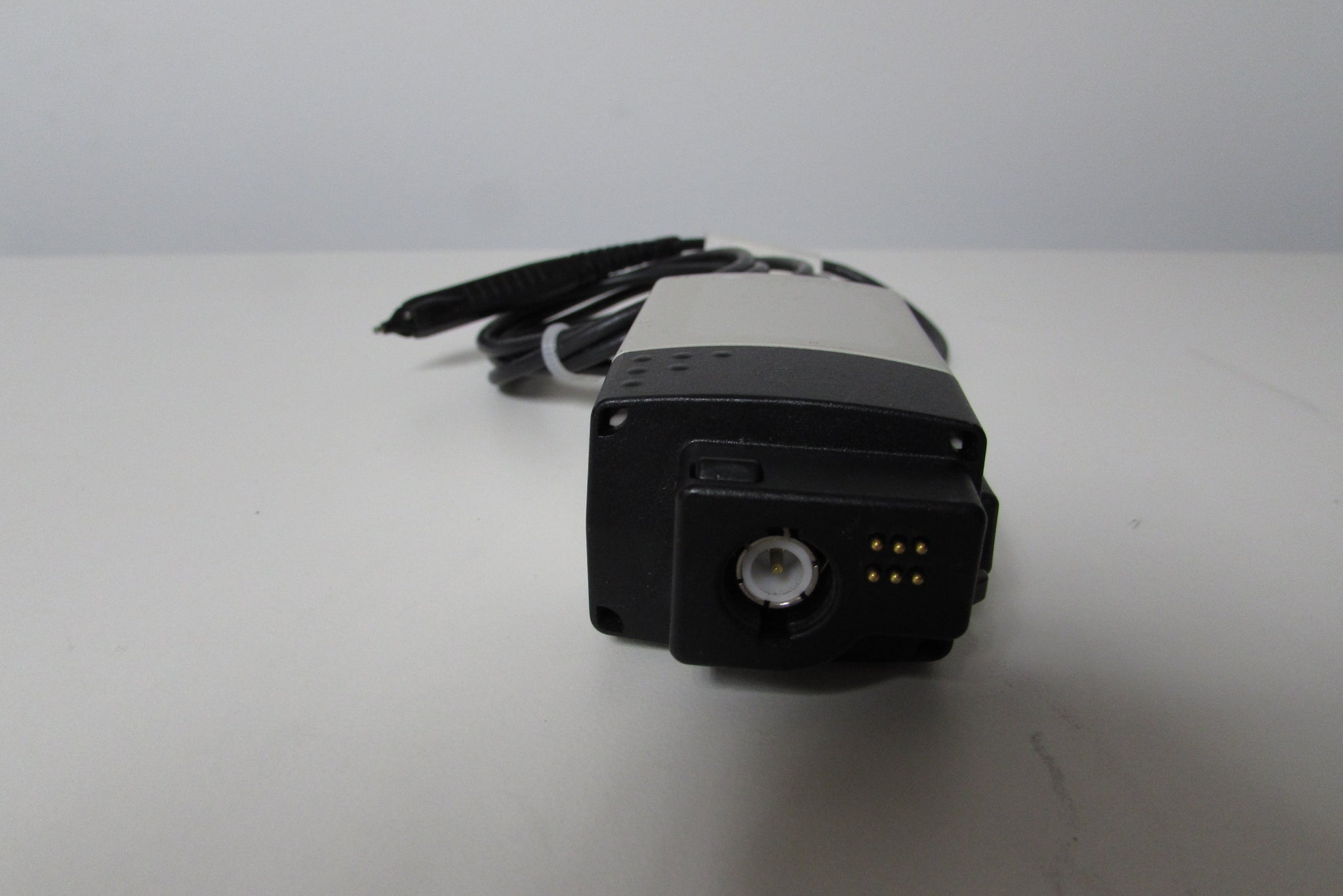

Tektronix TAP2500 Active Probe, 2.5 GHz 10x

$395.00
Unit price per

Shipping calculated at checkout.

Tektronix TAP2500 Active Probe, 2.5 GHz 10x. No accessories.

Product Overview

Active probes provide truer signal reproduction and fidelity for high frequency measurements. With our ultra-low input capacitance and unique interface, the TAP2500 Single-ended Active FET probe provides excellent high-speed electrical and mechanical performance required for today’s digital system designs.

Features:

2.5 GHz active probe
Lower DUT loading effects with ≤0.8 pF input capacitance and 40 kΩ input resistance
Versatile DUT connectivity for attaching to small SMDs
Preserves oscilloscope bandwidth at the probe tip for DPO7000 and DPO4000 Series Oscilloscope models up to 2.5 GHz

Outstanding Electrical Performance

≥2.5 GHz Probe Bandwidth
<140 ps Rise Time
≤0.8 pF Input Capacitance
40 kΩ Input Resistance
–4 V to +4 V Input Dynamic Range
–10 V to +10 V DC Input Offset Range
Max Input Voltage (Non-destruct): ±30 V (DC + pkAC)

Versatile Mechanical Performance

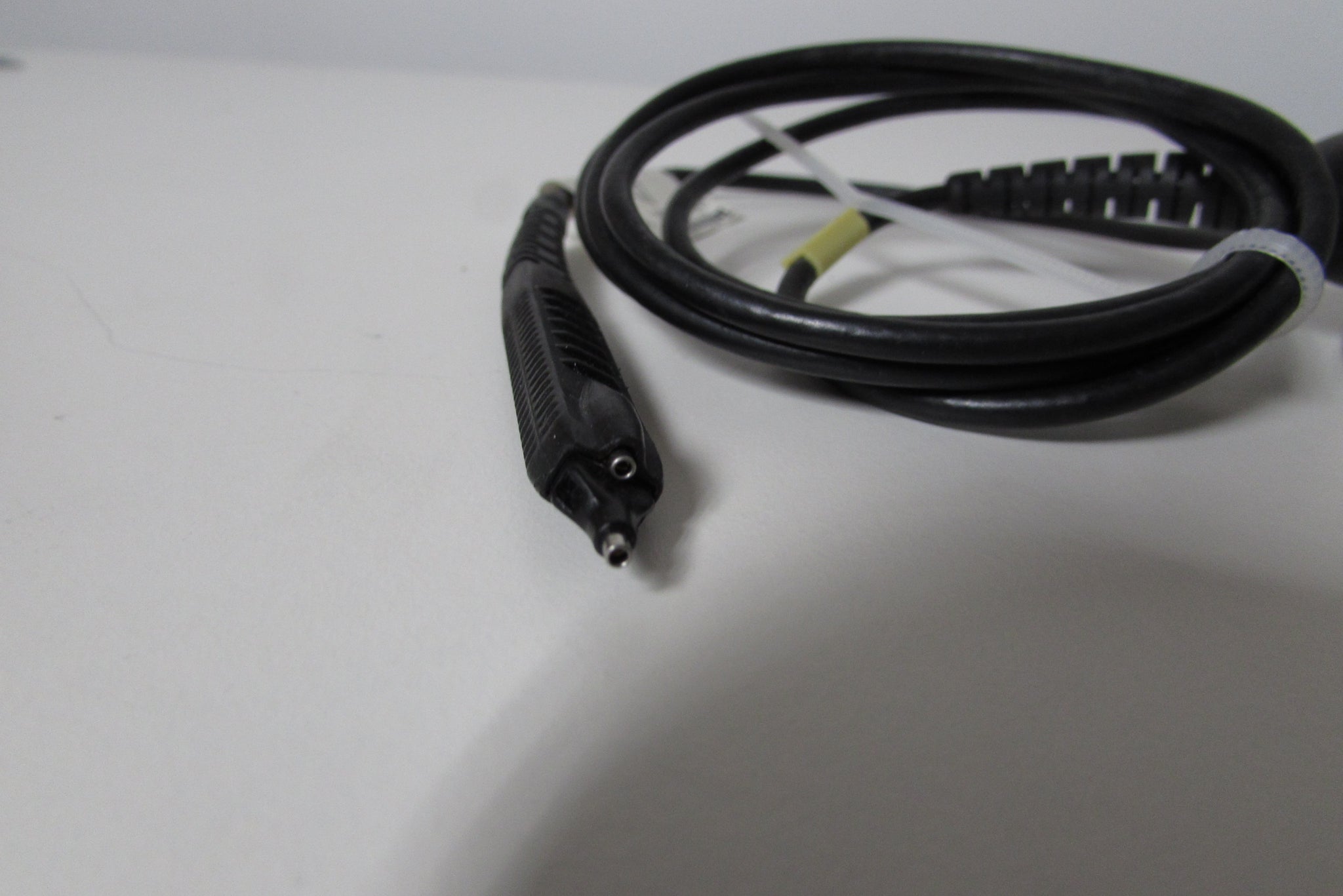

Small Compact Probe Head for Probing Small Geometry Circuit Elements
DUT Attachment Accessories Enable Connection to SMDs As Small As 0.5 mm Pitch
Robust Design for Reliability
