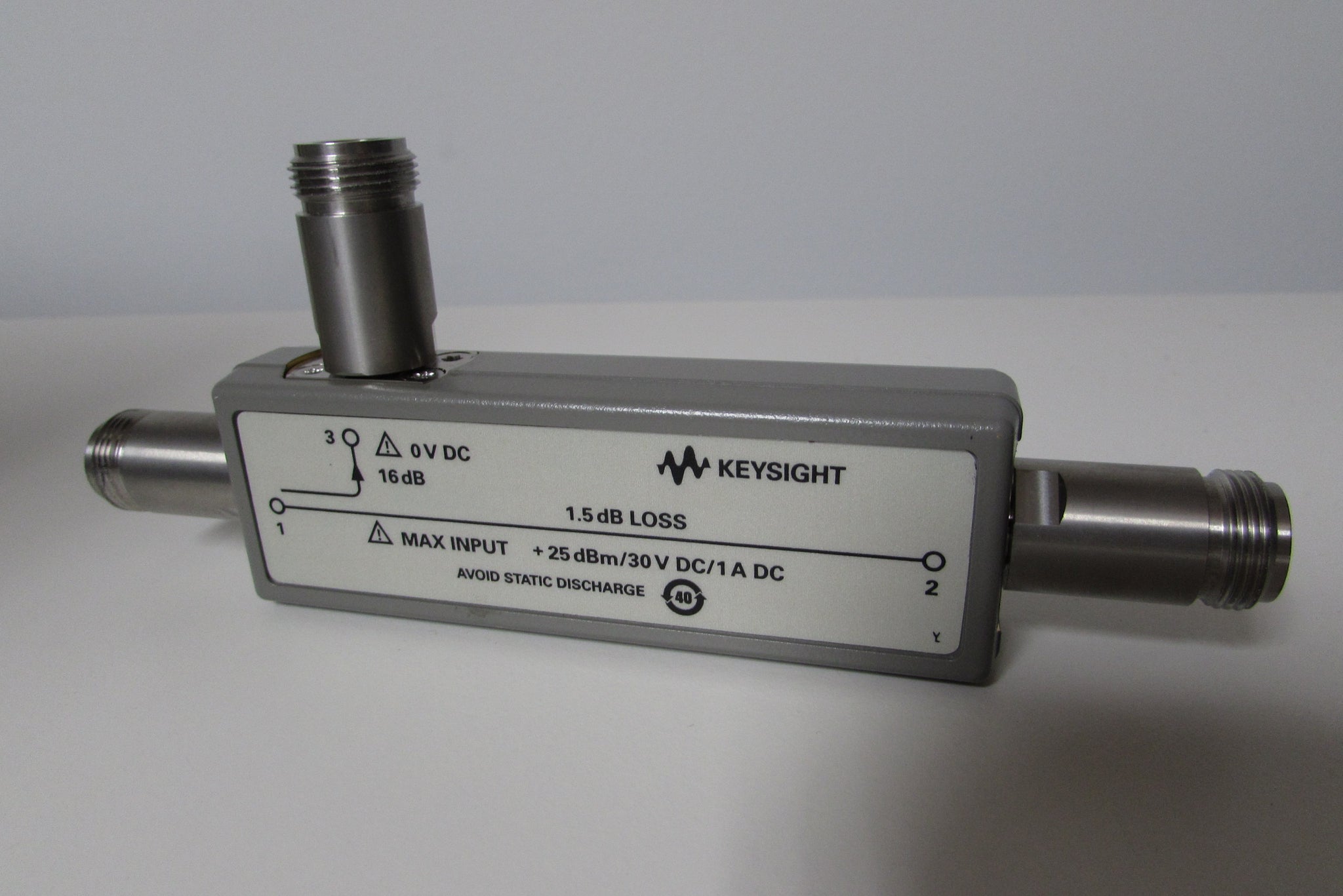

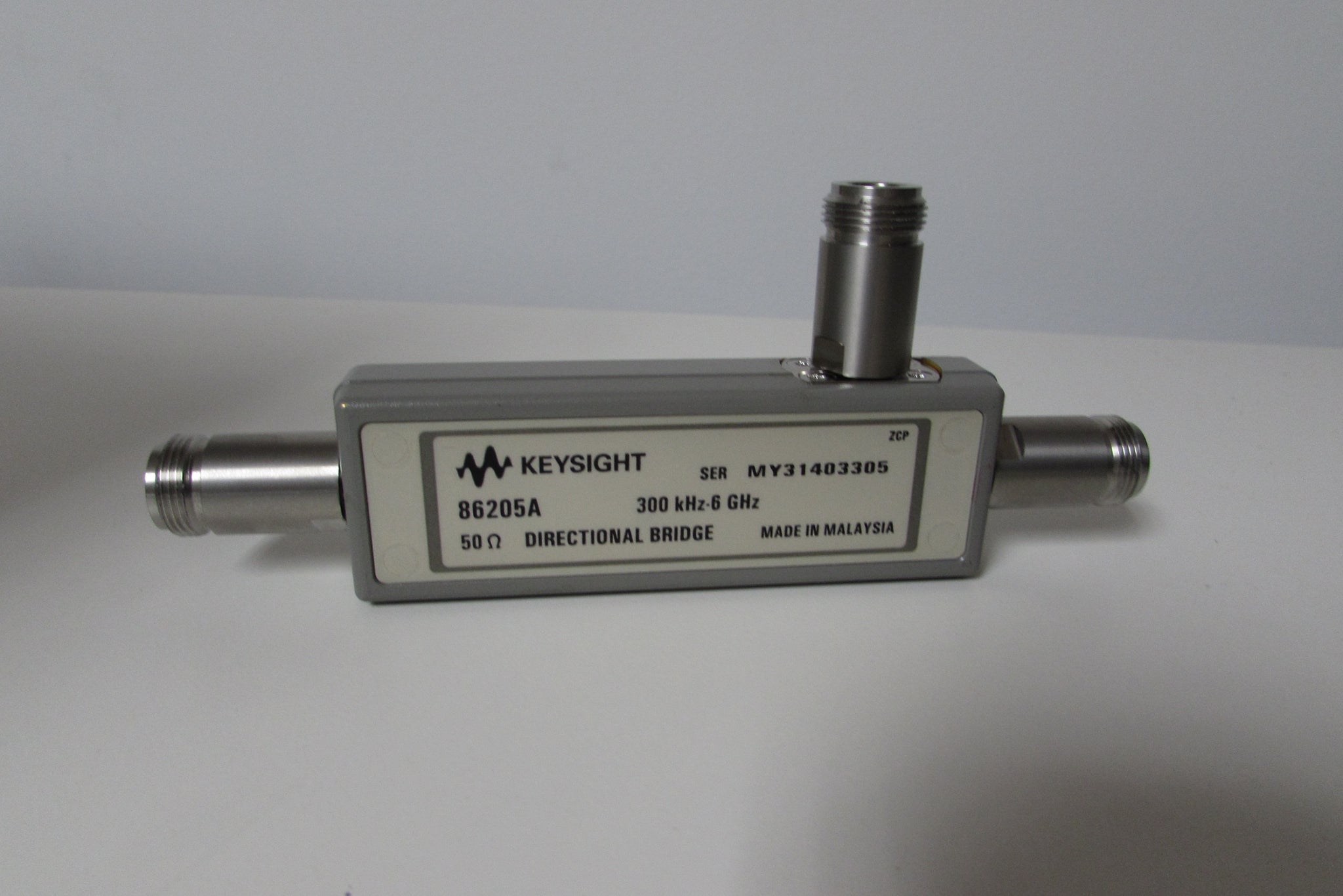

Keysight 86205A Bridge Detector, 300 kHz to 6 GHz, 50 Ohms
Keysight 86205A Bridge Detector, 300 kHz to 6 GHz, 50 Ohms
Product Overview
The Keysight 86205A high directivity 50 ohm RF bridge offers solid performance in a variety of general-purpose applications. It is ideal for accurate reflection measurements and signal leveling applications.
Features:
- Perform reflection measurements, signal leveling, and other applications with unparalleled accuracy.
- Superior RF performance
- Coupling factor at 16 dB + 0.15 dB / GHz (< 3 GHz); 16.5 dB - 0.20 dB / GHz (> 6 GHz)
- Directivity at 30 dB to 0.3 MHz, 40 dB to 2 GHz, 30 dB to 3 GHz, 20 dB to 5 GHz, 16 dB to 6 GHz
- Return loss at 23 dB to 2 GHz, 20 dB to 3 GHz, 18 dB to 5 GHz, 16 dB to 6 GHz
- Insertion loss at 1.5 dB + 0.1 dB / GHz
