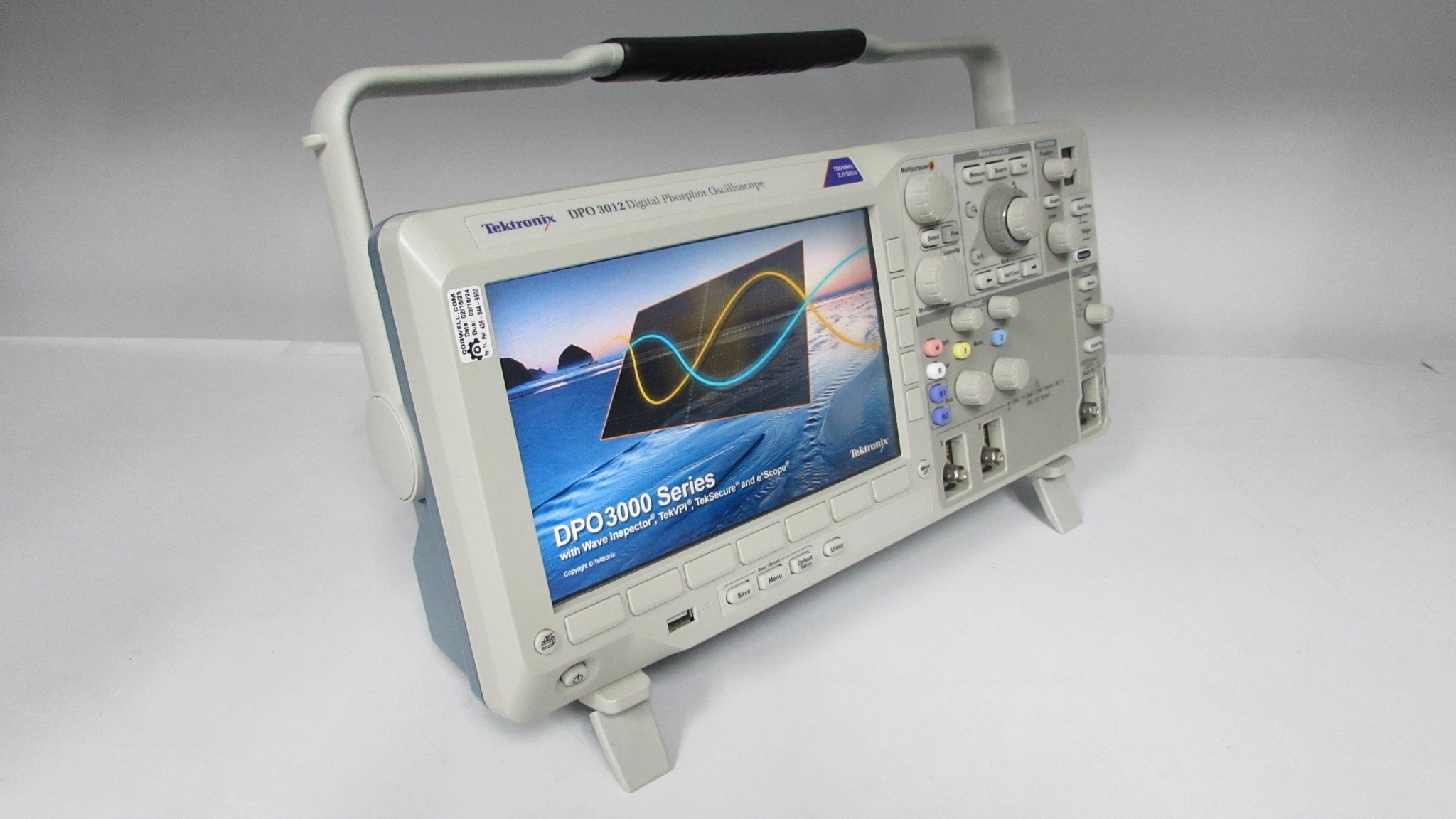

Tektronix DPO3012 Digital Phosphor Oscilloscope, 100 MHz, 2-Ch
Unit Includes
-Tektronix DPO3012 Digital Phosphor Oscilloscope, 100 MHz, 2-Ch
Product Overview
The Tektronix DPO3012 is a 100 MHz, 2 channel digital oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
-Tektronix DPO3012 Digital Phosphor Oscilloscope, 100 MHz, 2-Ch
Product Overview
The Tektronix DPO3012 is a 100 MHz, 2 channel digital oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
- Bandwidth: 100 MHz

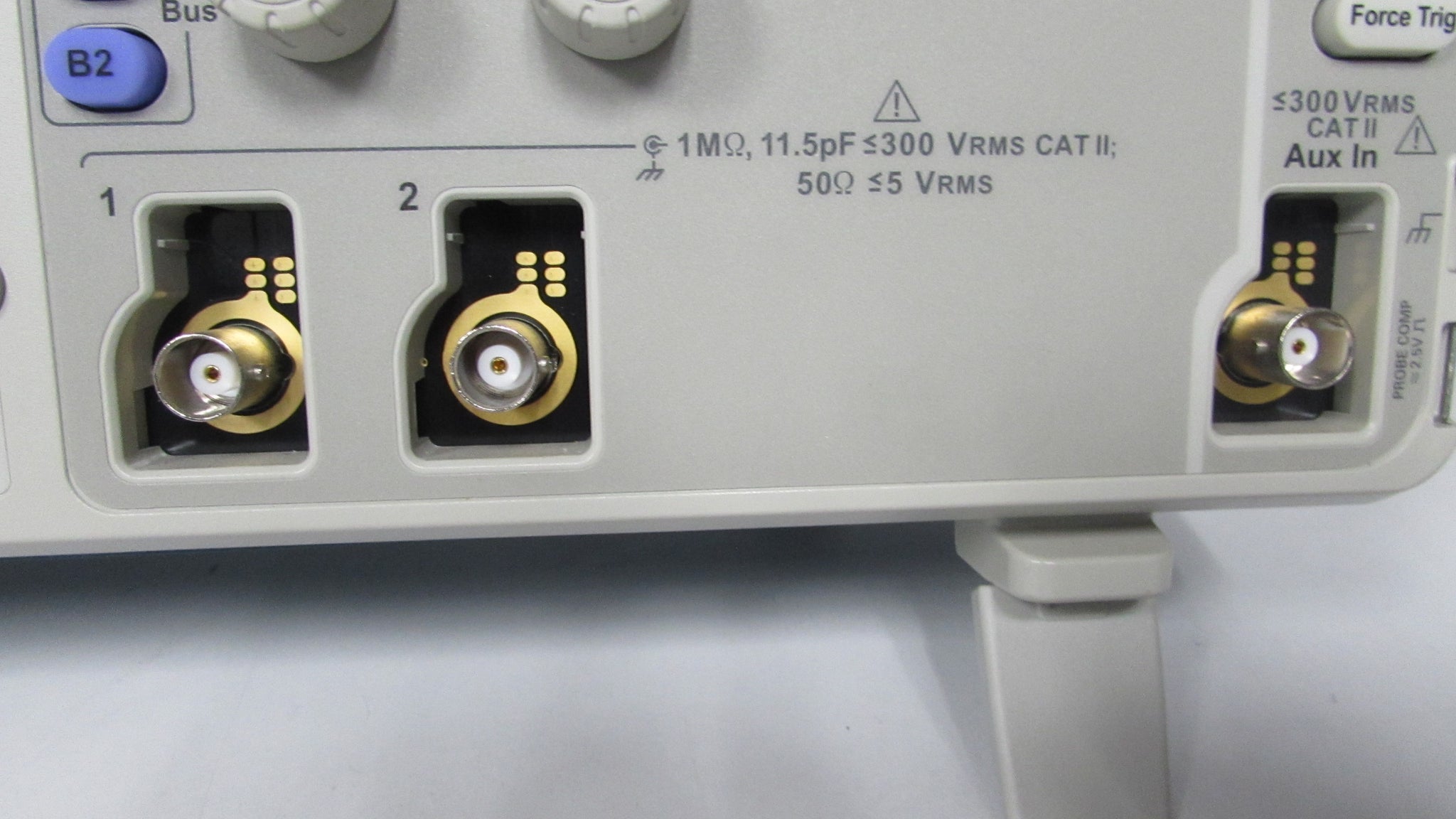

- 2 Channels
- 2.5 GS/s sample rate on all channels
- 5 mega-point record length on all channels
- >50,000 wfm/s maximum waveform capture rate
- Suite of advanced triggers
- Wave Inspector® Controls provide easy navigation and automated search of waveform data
- 29 automated measurements, and FFT analysis for simplified waveform analysis

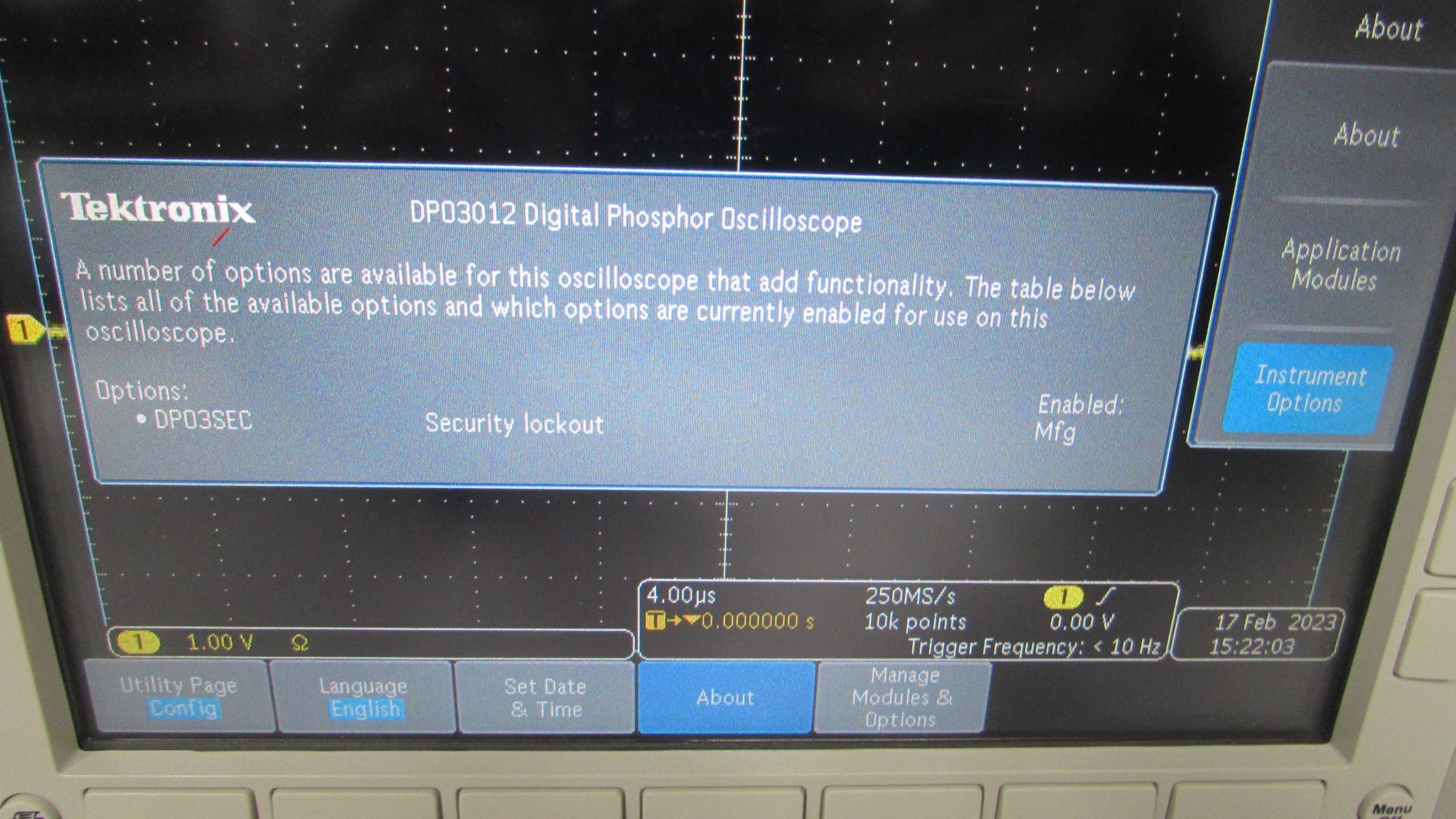

- Optional serial triggering and analysis - automated serial triggering, decode, and search options for I2C, SPI, CAN, LIN, RS-232/422/485/UART, and I2S/LJ/RJ/TDM
- TekVPI® probe interface supports active, differential, and current probes for automatic scaling and units
- 9 in. (229 mm) WVGA widescreen color display
