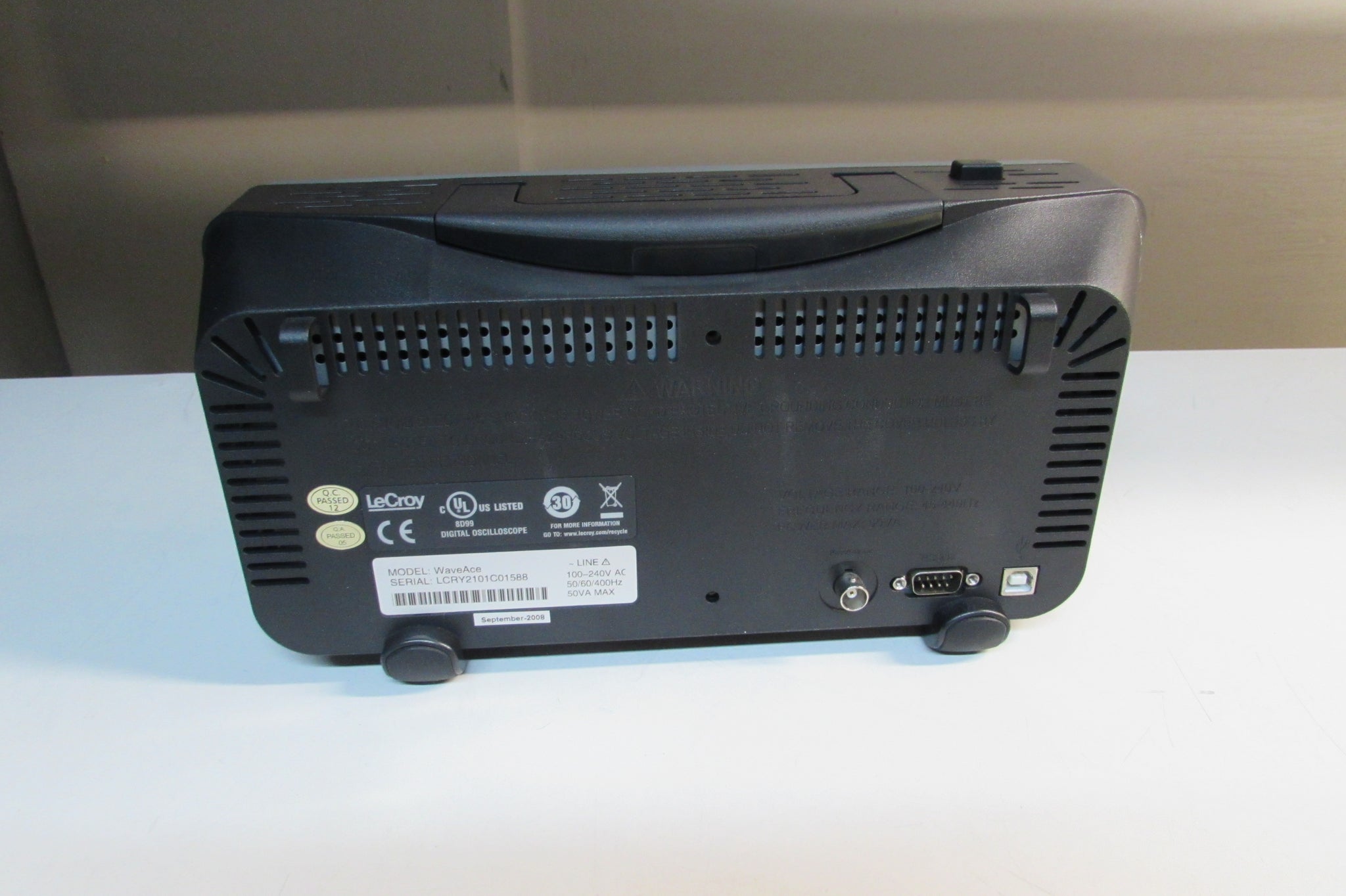

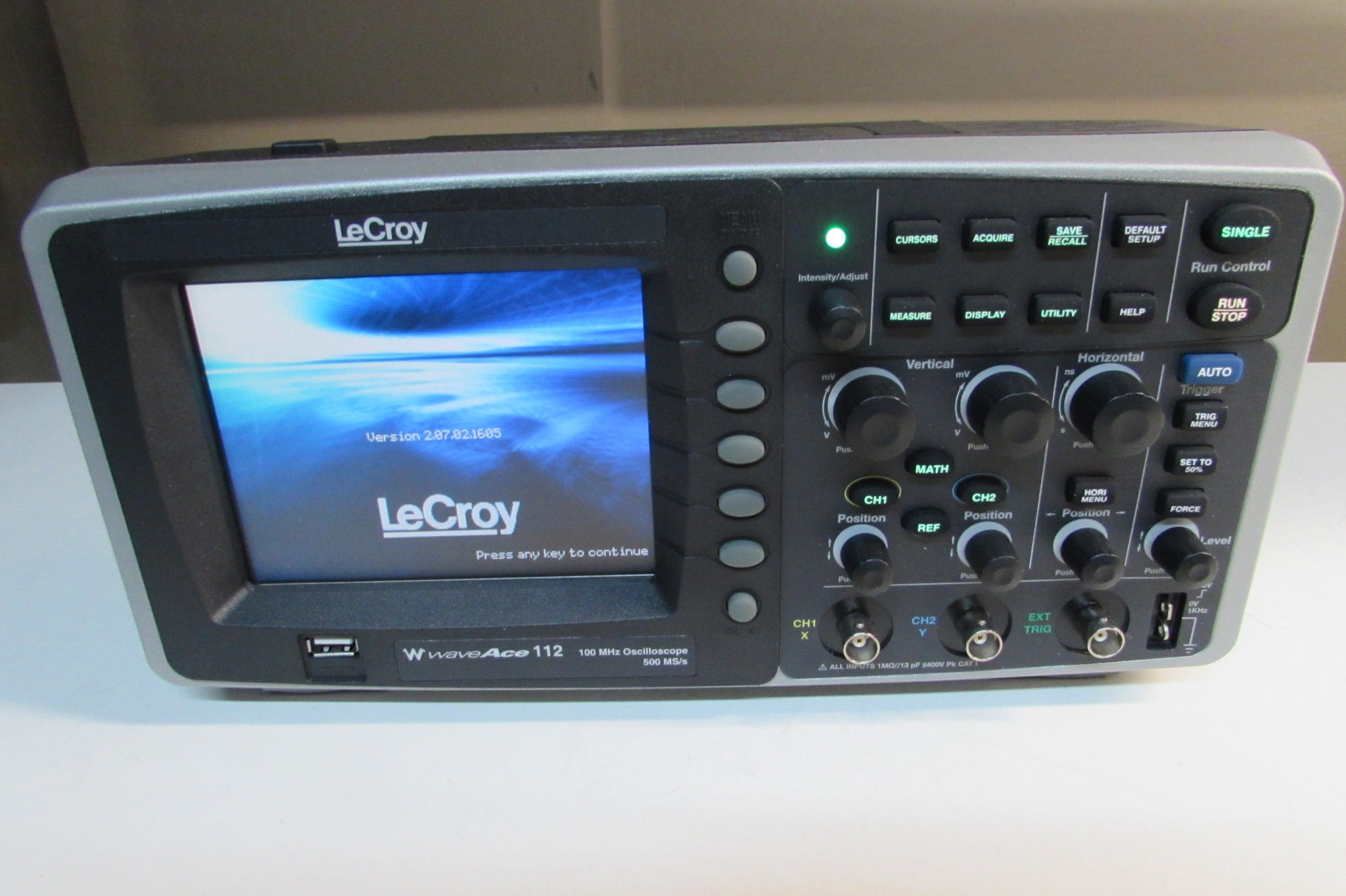

LeCroy WaveAce 112, Oscilloscope, 100MHZ 2CH 500MS/S 4KPTS/CH w/ 2 PP016 Probes

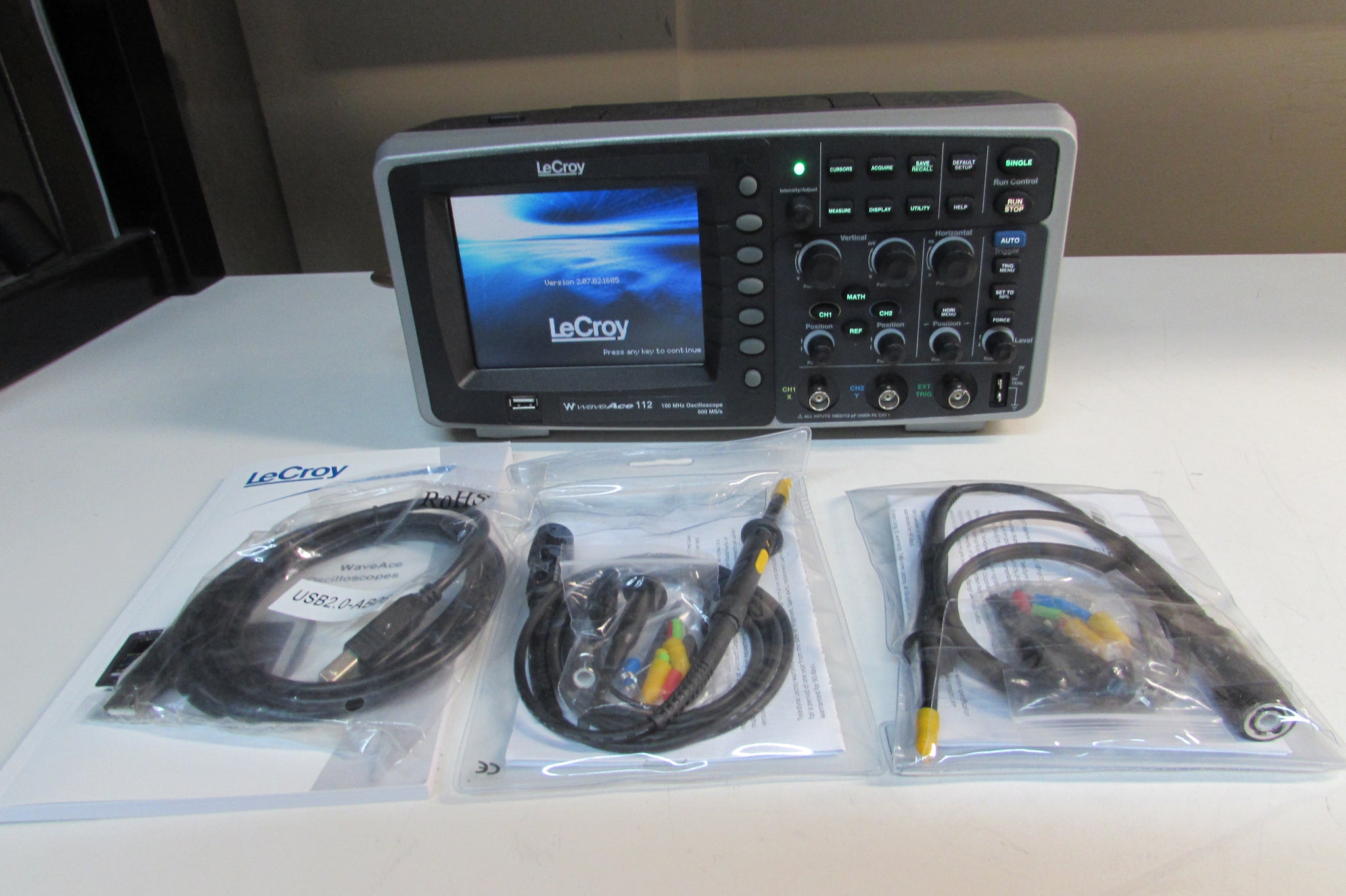

LeCroy WaveAce 112, Oscilloscope, 100MHZ 2CH 500MS/S 4KPTS/CH w/ 2 PP016 Probes, usb cable and a power cable
Product Overview
100 MHz, 250 MS/s, 2 ch, 4 kpts/Ch, DSO with 5.7" Color Display. 500 MS/s interleaved, 1 MOhm Input
WaveAce 100 MHz 2 Channel Digital Oscilloscope
WaveAce allows LeCroy to offer lower bandwidth, lower priced products that extend down to 40 MHz bandwidth
Color display on all models ? some competitive products offer only black and white
Long Waveform Memory ? 4 kpts/Ch or 9 kpts/Ch (18 kpts interleaved)
Advanced Triggering? Edge, Pulse Width, Video, Slope (Rise Time)
Multi-language User Interface and Context Sensitive Help
Long memory and capture time with up to 10kpts/ch (20 kpts interleaved)
Mathematical capabilities including add, subtract, multiply, divide and FFT
32 automated measurement parameters including advanced timing parameters ? competitive products offer only 11 or 20
Large internal waveform and setup storage
4 math functions plus FFT
USB host and device connections for printers, memory sticks and PC remote
