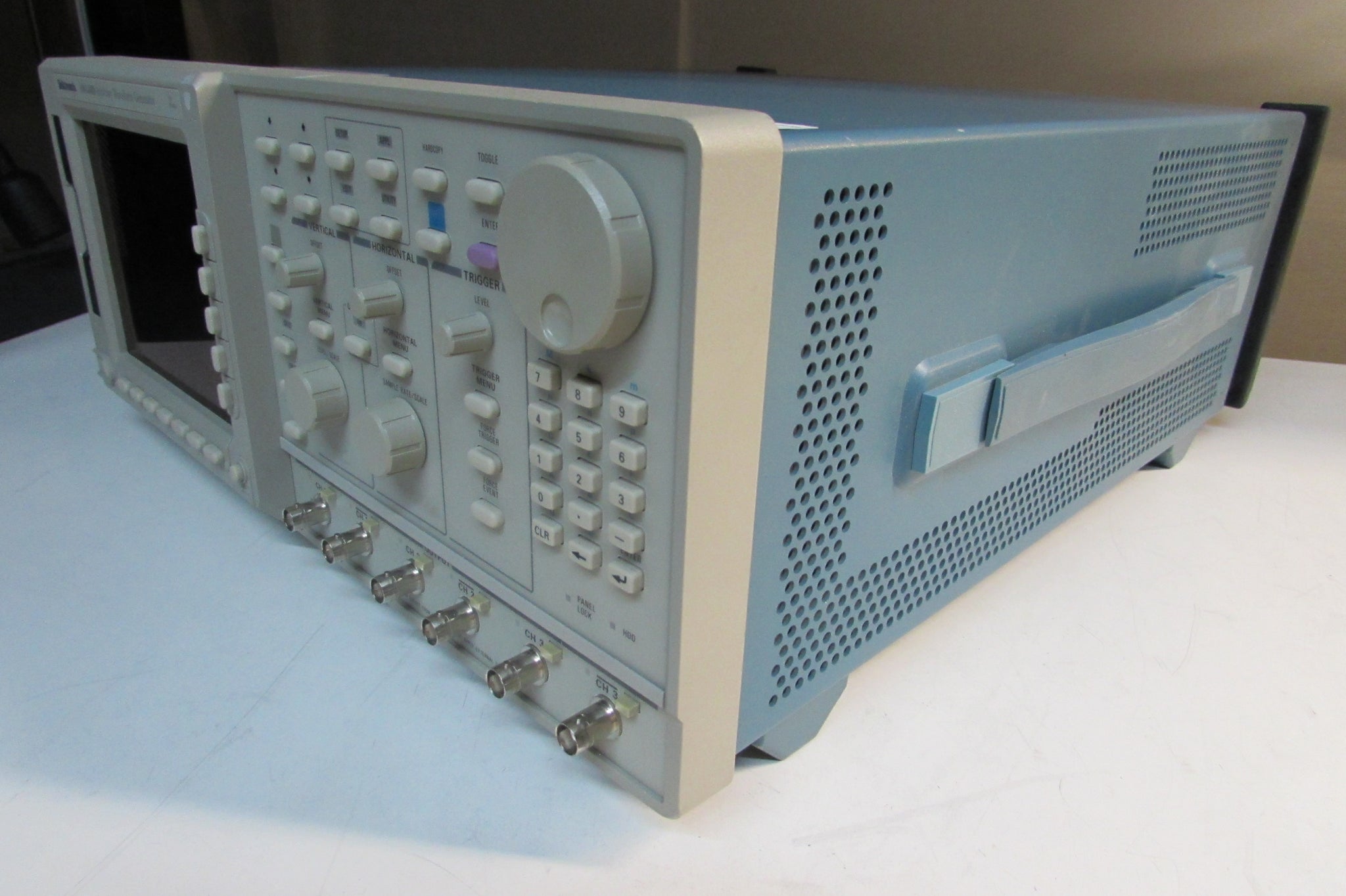

Tektronix AWG430 Arbitrary WaveForm Generator, 200MS/s, Opt 01

  • $495.00
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Tektronix AWG430 Arbitrary WaveForm Generator, 200MS/s, Opt 01

Product Overview

The Tektronix AWG430 is an Arbitrary Waveform Generator from Tektronix. An arbitrary waveform generator (AWG) is a type of electronic test equipment people use to generate repetitive or single-shot electrical waveforms. Single-shot waveforms require a triggering source, either internal or external, while repetitive waveforms do not. Inject the signal the waveform generator creates into a device for analysis during testing, finding problems with the device, or confirming proper operation.

Additional Features:

  • 3 Independent Waveform Channel
  • 16-Bit (1/65536) Vertical Resolution
  • 200 MS/s Sample Rate
  • Up to 16 M Record Length with option 01
  • Optional 16/32/48-Bit 100 MHz (CMOS) Digital Data Generator for Mixed-signal Device Testing
  • 2, 4 or 6 Digital Marker Outputs
  • Channel Internal Independent Noise Generator
  • Independent Channel Skew Control
  • Independent Channel External Signal ADD-INPUT
  • External Clock and External Reference Inputs

Applications:

Designing, Testing and Deploying

  • Quadrature Digitally Modulated I&Q Signals and Displays
  • Mixed (Analog/Digital) Signals
  • Stimulus Signals for Imaging Display and Recording Devices (CCD, LCD)
  • Enhanced/Corrupted Playback of DSO Captured Signals
  • Simulation Waveform Vectors Imported from Mathcad, Matlab, Excel and Others

Network Communications Physical Layer Testing

  • ITU-T (E1, E2, E3)
  • TI.102 (DS1, DS1A, DS1C)
  • Fibre Channel (FCI33E)
  • SDH/SONET (OC1/STM0, OC3/STM1)
  • D2
  • 100Base-TX
