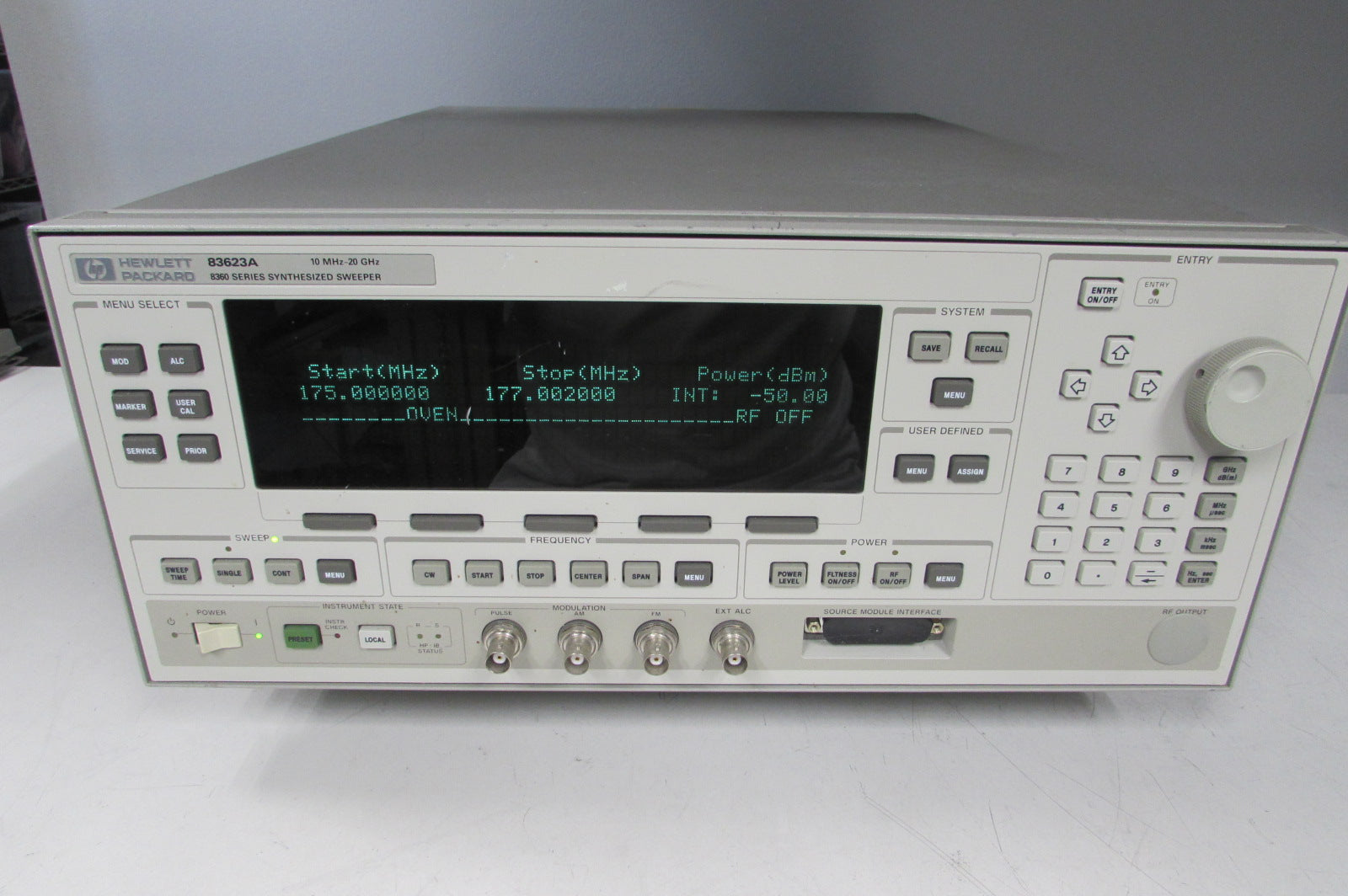

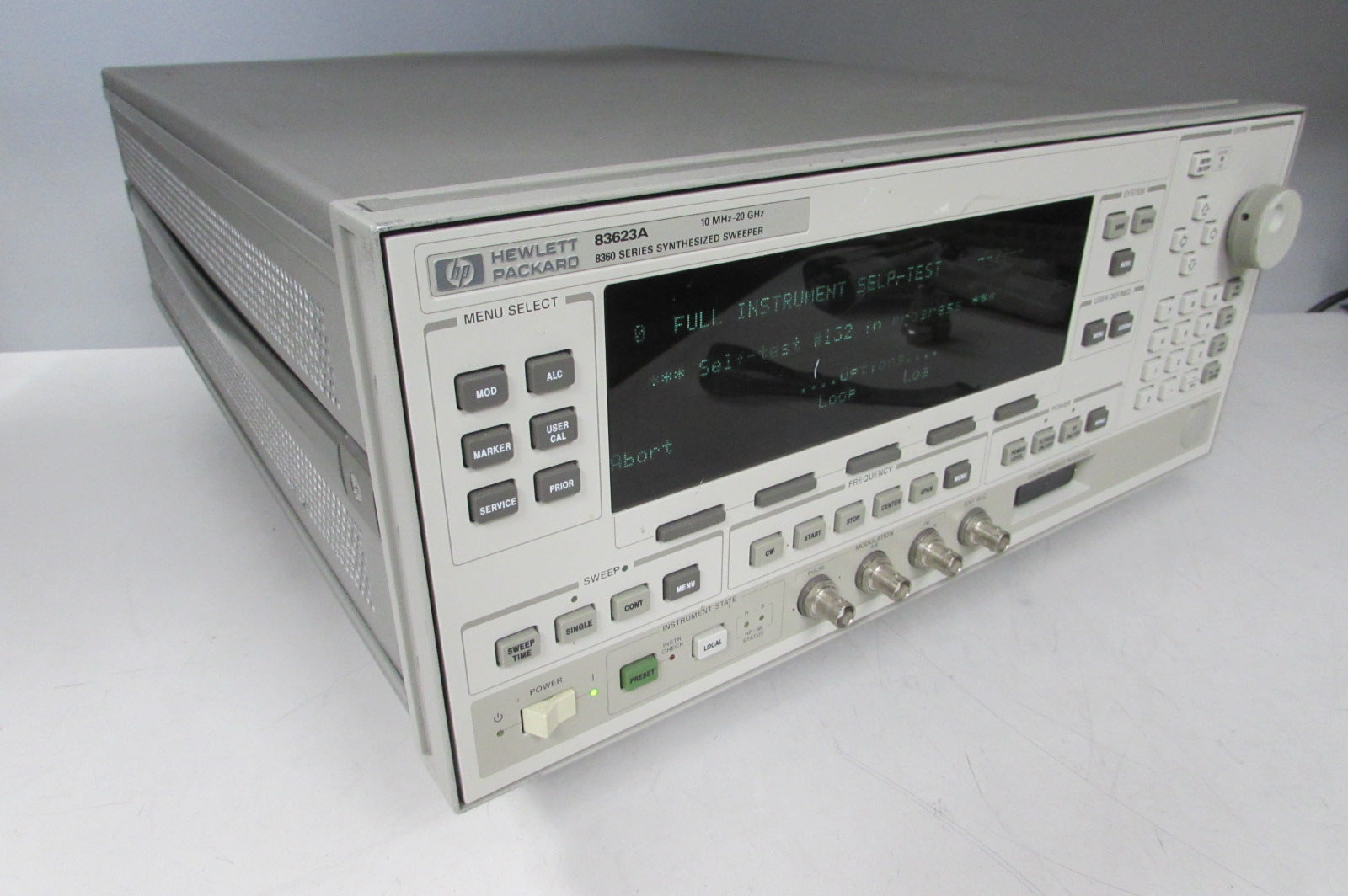

Agilent 83623A Synthesized Swept-CW Generator, 10 MHz-20 GHz, Opt 001
Agilent 83623A Synthesized Swept-CW Generator, 10 MHz-20 GHz, Opt 001
Product Overview
The Agilent 83623A is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83623A to achieve low single-sideband phase noise performance. The Agilent 83623A delivers harmonic performance of 25 dB below the carrier from 2.0 to 20 GHz.
Product Overview
The Agilent 83623A is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83623A to achieve low single-sideband phase noise performance. The Agilent 83623A delivers harmonic performance of 25 dB below the carrier from 2.0 to 20 GHz.
Additional Features:
- Frequency range: 10 MHz-20 GHz
- Scan modulation to simulate antenna scan patterns
- Accurate fixed and swept frequency offset for two-tone measurement
- User flatness correction for leveling at remote points in the test system
- General purpose source for use in component test, receiver test and for frequency conversion
- Sweep Modes: Step, List, Ramp
- Maximum Power: +17 dBm
- Power Sweep Range: -20 dBm to maximum power
- Phase Noise (20 GHz at 10 kHz): -76 dBc
- Max FM Deviation (locked): +/- 8 MHz
