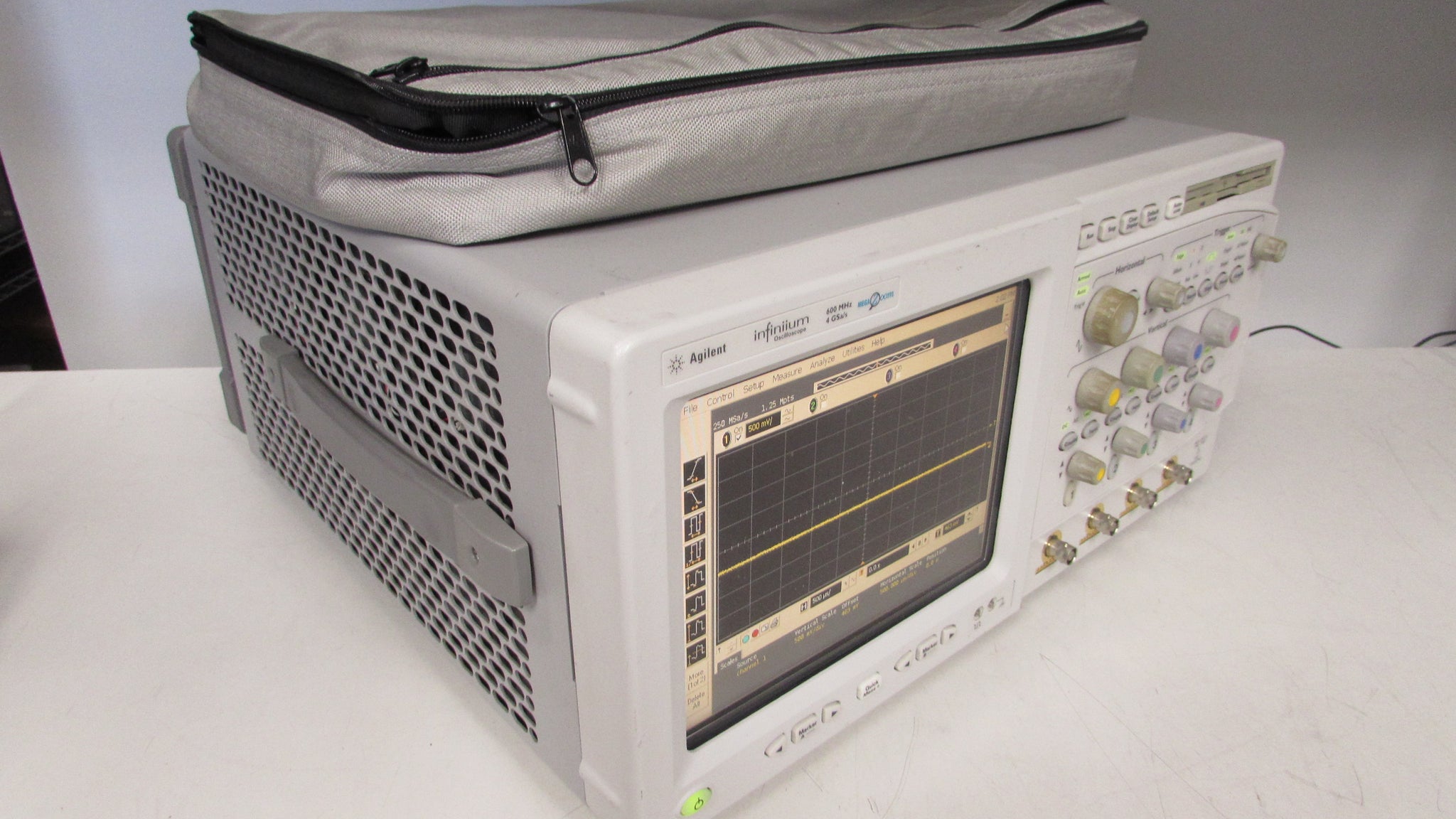

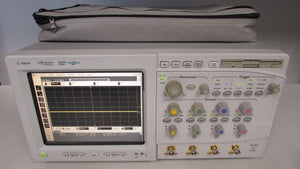

Agilent 54831B Infinium Digital Oscilloscope, 600 MHz, 4 GSa/s, 4 Channel, 1160A
Agilent 54831B Infinium Digital Oscilloscope, 600 MHz, 4 GSa/s, 4 Channel, 1160A x4
Product Overview
The 54831B is a 600 MHz, 4 channel digital oscilloscope from Agilent. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
Product Overview
The 54831B is a 600 MHz, 4 channel digital oscilloscope from Agilent. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
Features:
- Bandwidth: 600 MHz

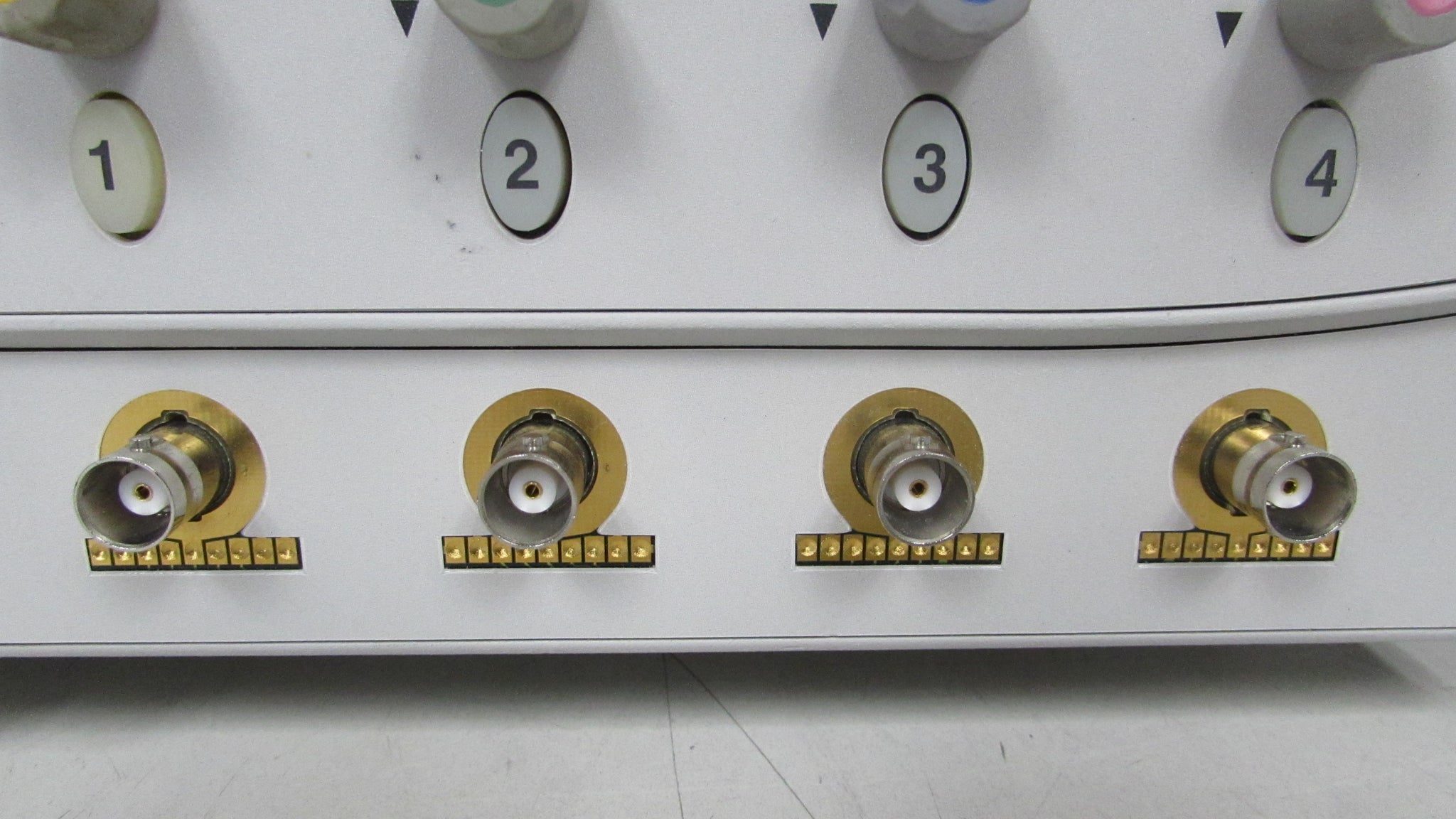

- 4 Channels
- Sample Rate: 4 GS/s
- Record Length: 4 MPts
- Standard 4 Mpts memory (2 Mpts per channel) with up to 16 Mpts, optional
- Up to 128 Mpts optional memory, also available as after-purchase upgrades
- Advanced MegaZoom allows instant response to reveal fast events
- Simple, analog-like front panel with Windows GUI
- Color-graded persistence and histograms
- Web-enabled remote control and email on trigger
