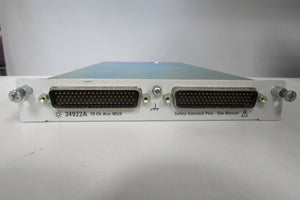

Agilent 34922A 70-Channel Armature Multiplexer for 34980A
Agilent 34922A 70-Channel Armature Multiplexer for 34980A, High density, multi-function switching up to 300 V, 1 A with 100 channel/second scan rates to an internal DMM.
The Keysight 34922A module for the 34980A Multifunction Switch/Measure Unit offers high density multiplexer switching in a compact size. It combines dense, multi-function switching with 100 channel/second scan rates to address a broad spectrum of data acquisition applications.
Multiple matrix modules can be combined through the 34980A analog buses to create larger matrices, with up to 1024 2-wire cross-points in a single mainframe. Standard 50-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions.
- 70 2-wire channels
- Mix 2- or 4-wire configurations
- 100 ch/s scanning
- 300V, 1A switch; 2A carry current
- Latching armature relays, with relay counter
