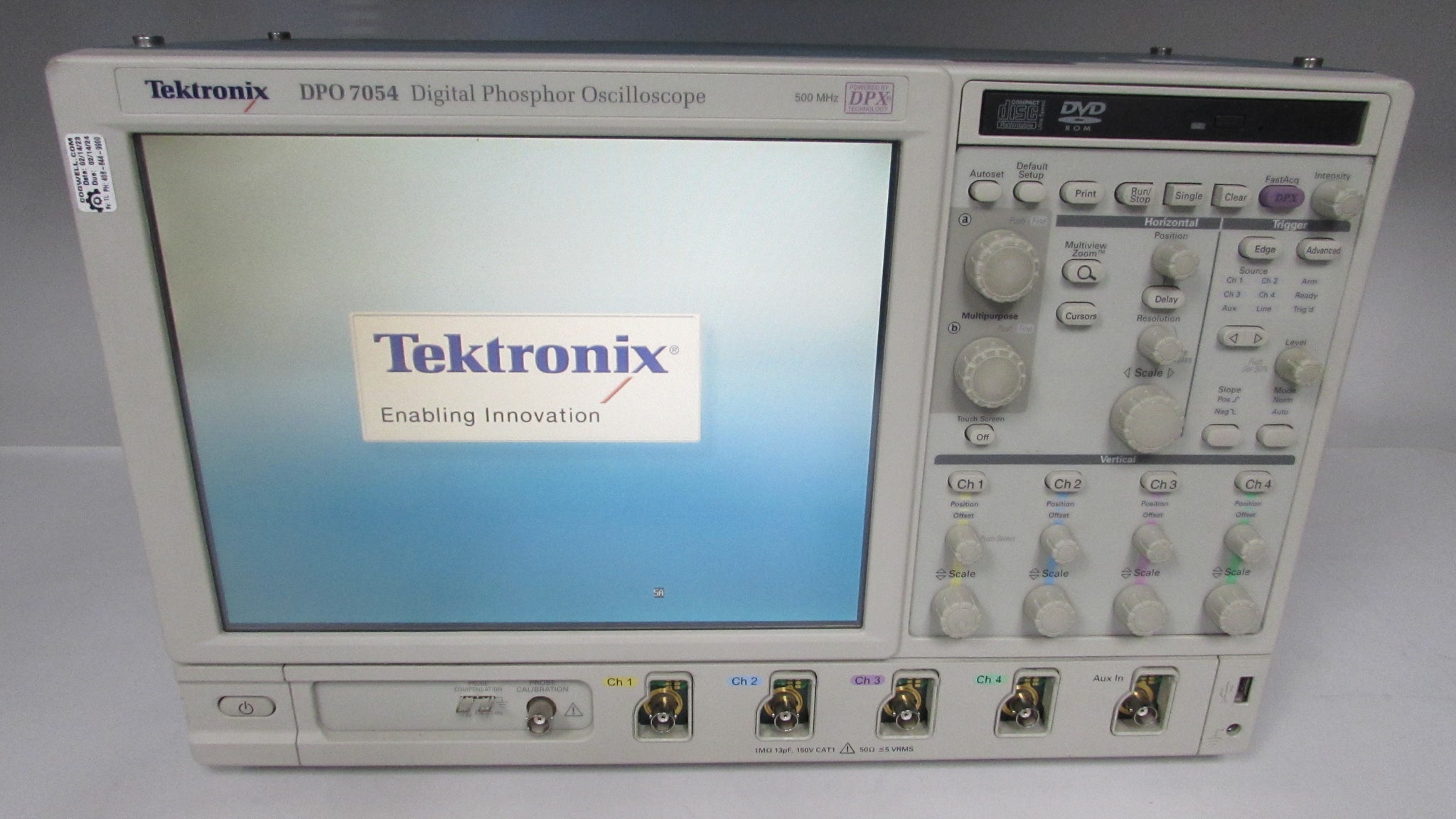

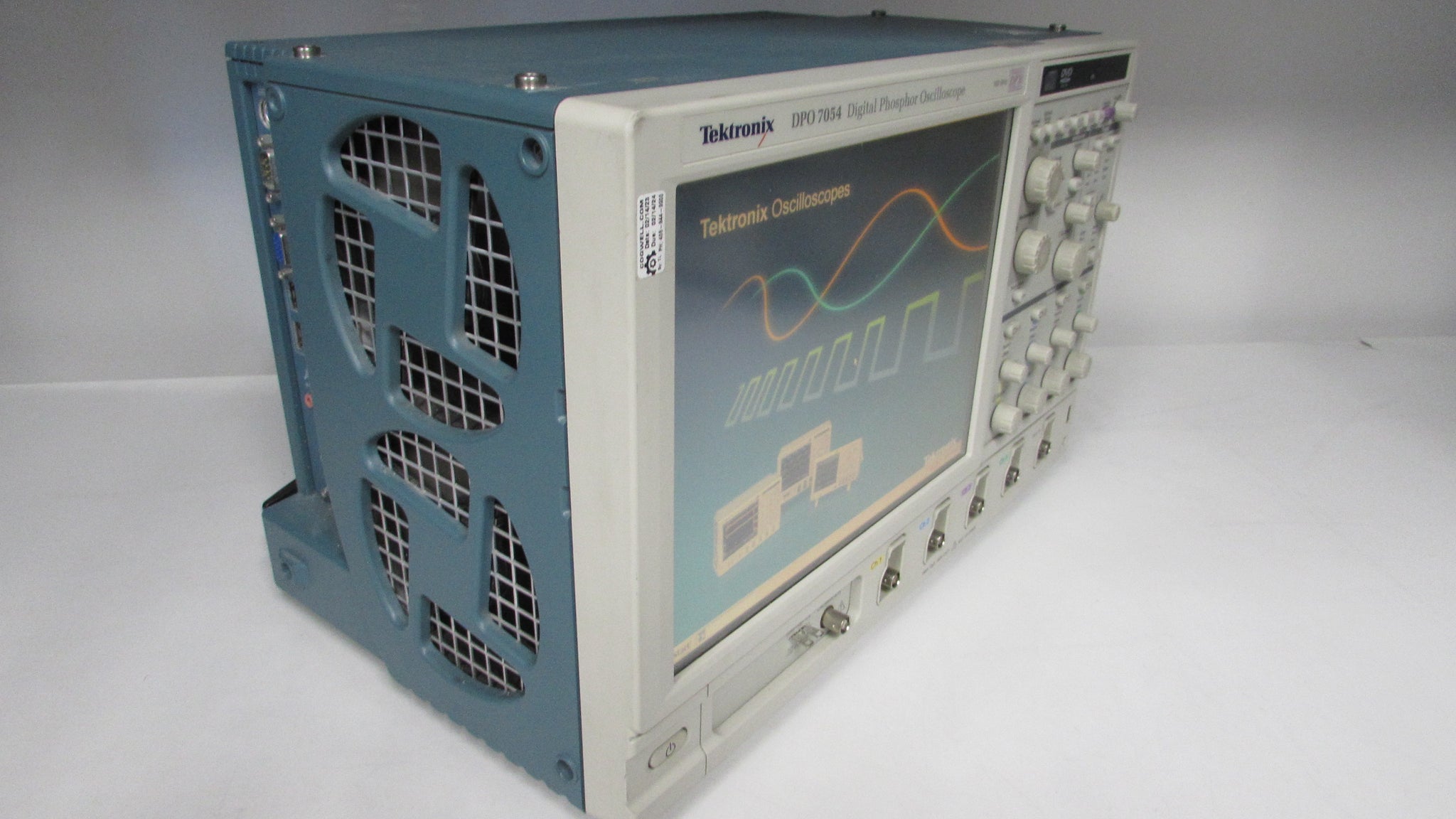

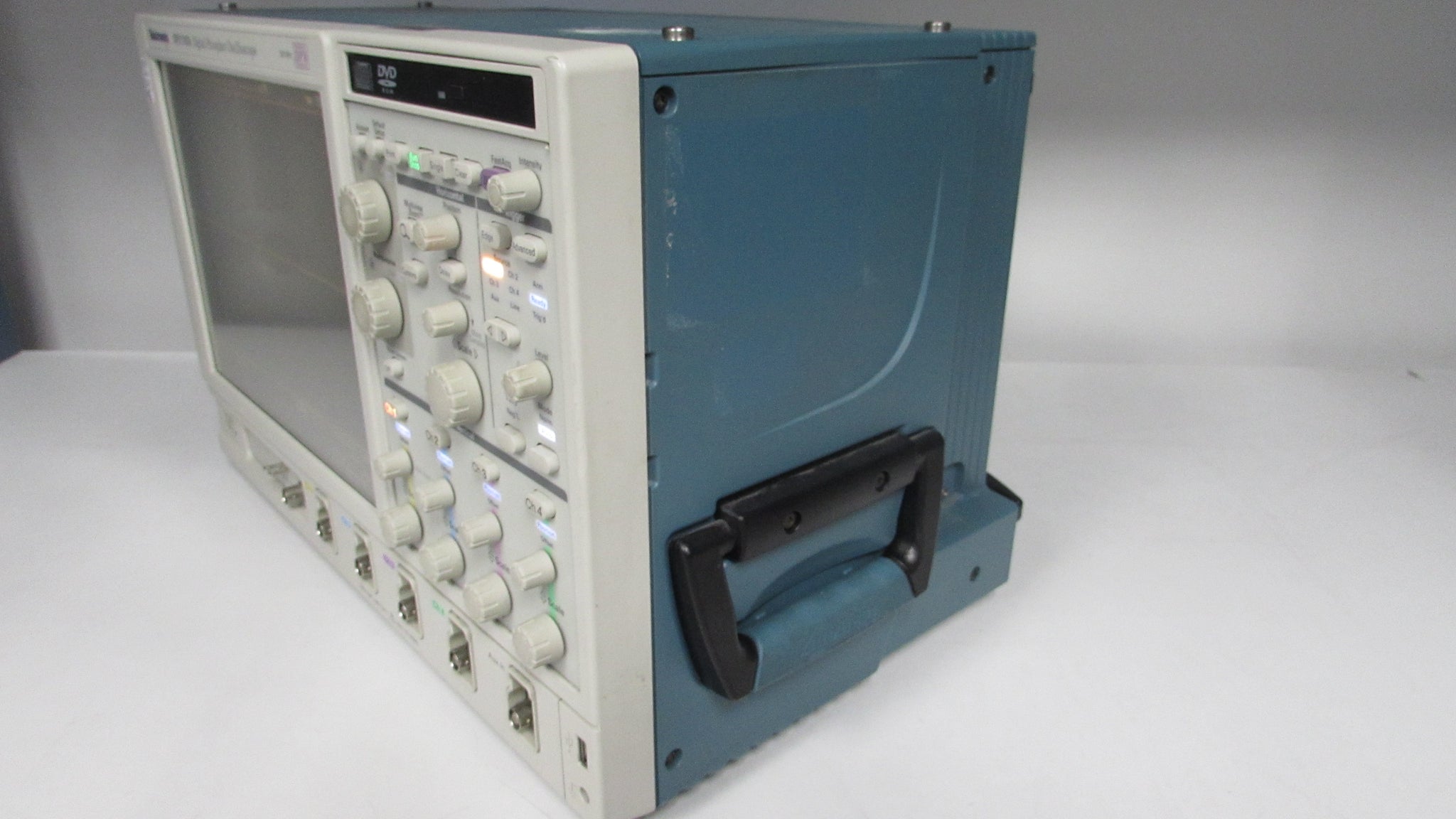

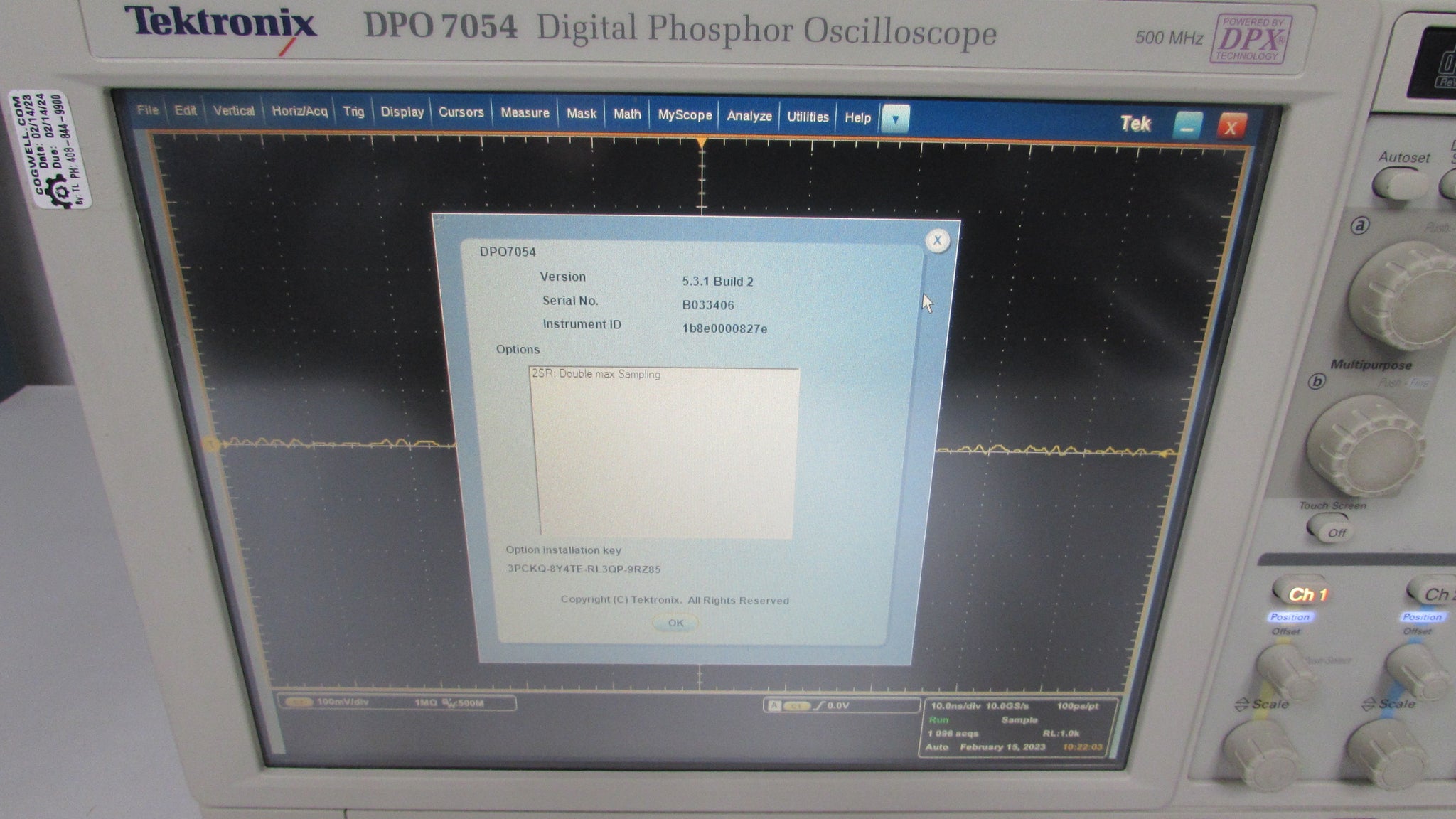

Tektronix DPO7054 Digital Phosphor Oscilloscope 500MHz, 20GS/s, Opt 2SR, include a fresh CALIBRATION
Tektronix DPO7054 Digital Phosphor Oscilloscope 500MHz, 20GS/s, Opt 2SR. No probe will be included.
-NIST Traceable calibration certificate w/ data report.

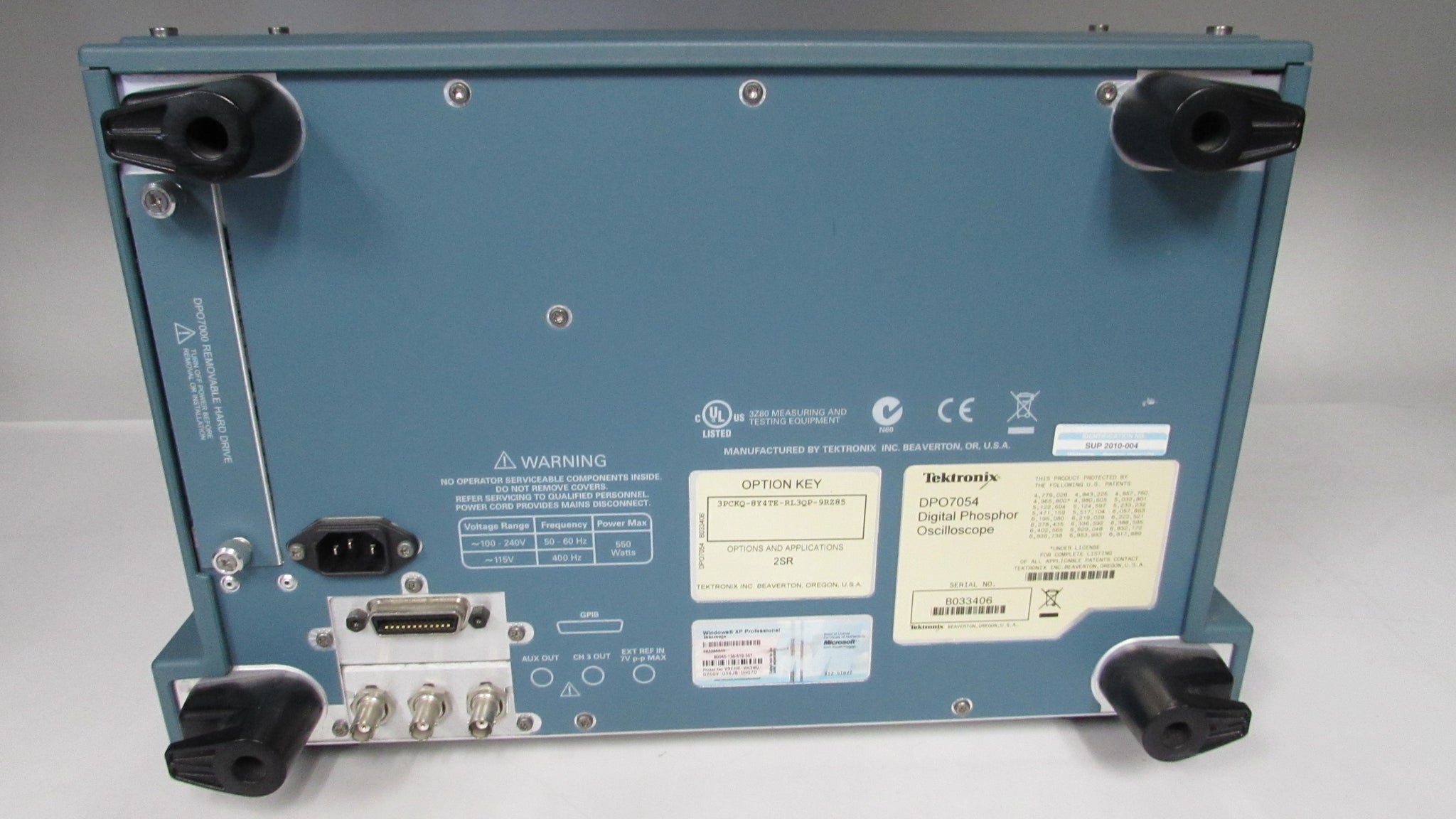

-Power cable
Product Overview
The Tektronix DPO7054 is a 500 MHz, 4 channel digital oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
-NIST Traceable calibration certificate w/ data report.
-Power cable
Product Overview
The Tektronix DPO7054 is a 500 MHz, 4 channel digital oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
- Bandwidth: 500 MHz

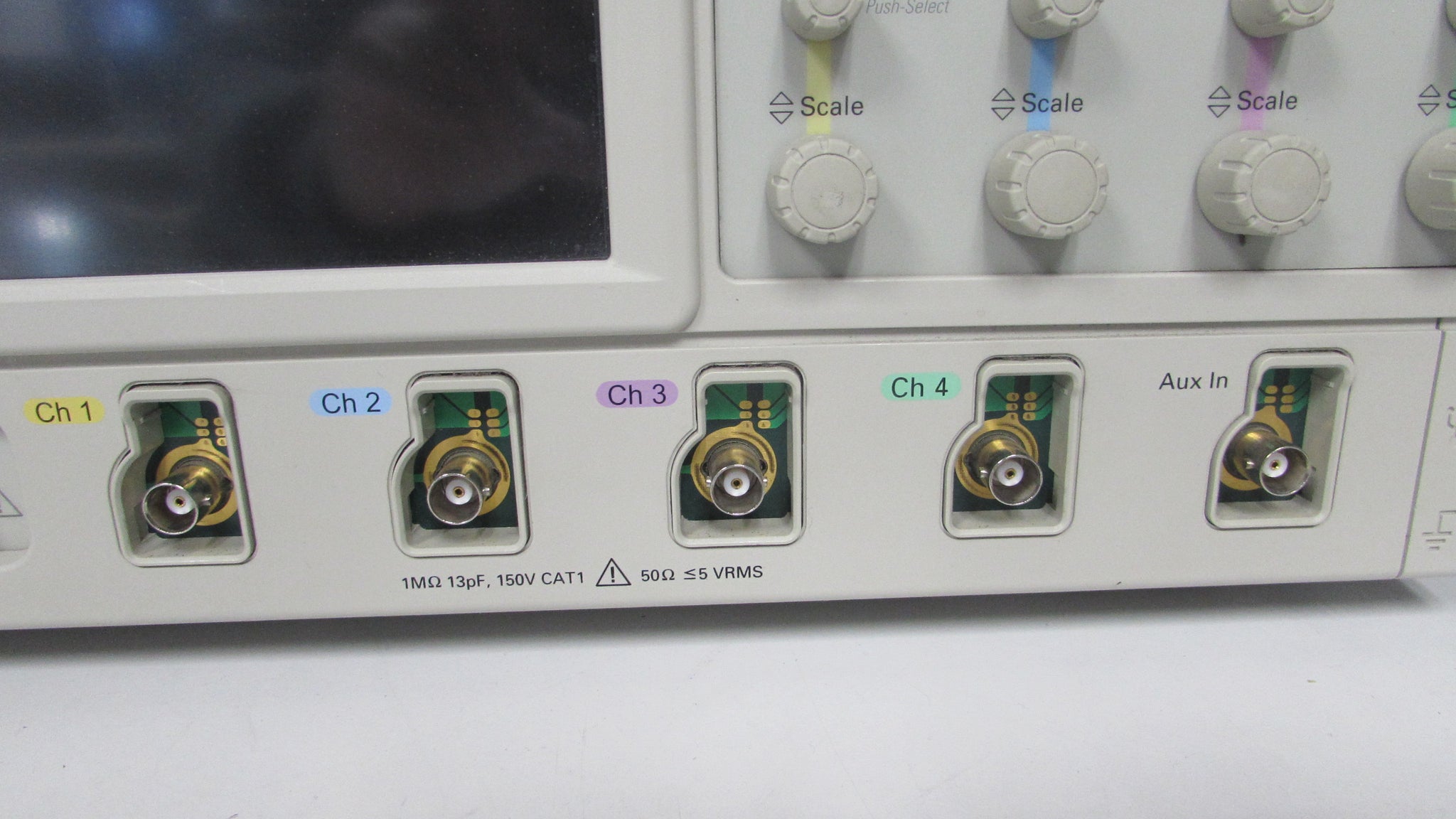

- Number of Channels: 4
- Input Impedance 50 Ohms/1 Mohms
- Max Sample Rate: 20 GS/s
- Record Length: 40M
- User-selectable Bandwidth Limit for Better Measurement Accuracy
- Event Search and Mark for Signal Integrity and Timing Challenges
- I2C Trigger Enhancement for 8/16 bit Data
- Pinpoint Triggering Provides over 1400 Combinations to Address Virtually Any Triggering Situation
- 12.1" Largest XGA Touch Screen Display in the Industry
- Clock Recovery from Serial Data Streams
- Low-speed Serial Protocol Triggering (I2C, SPI, RS-232, CAN)
